C321
C321

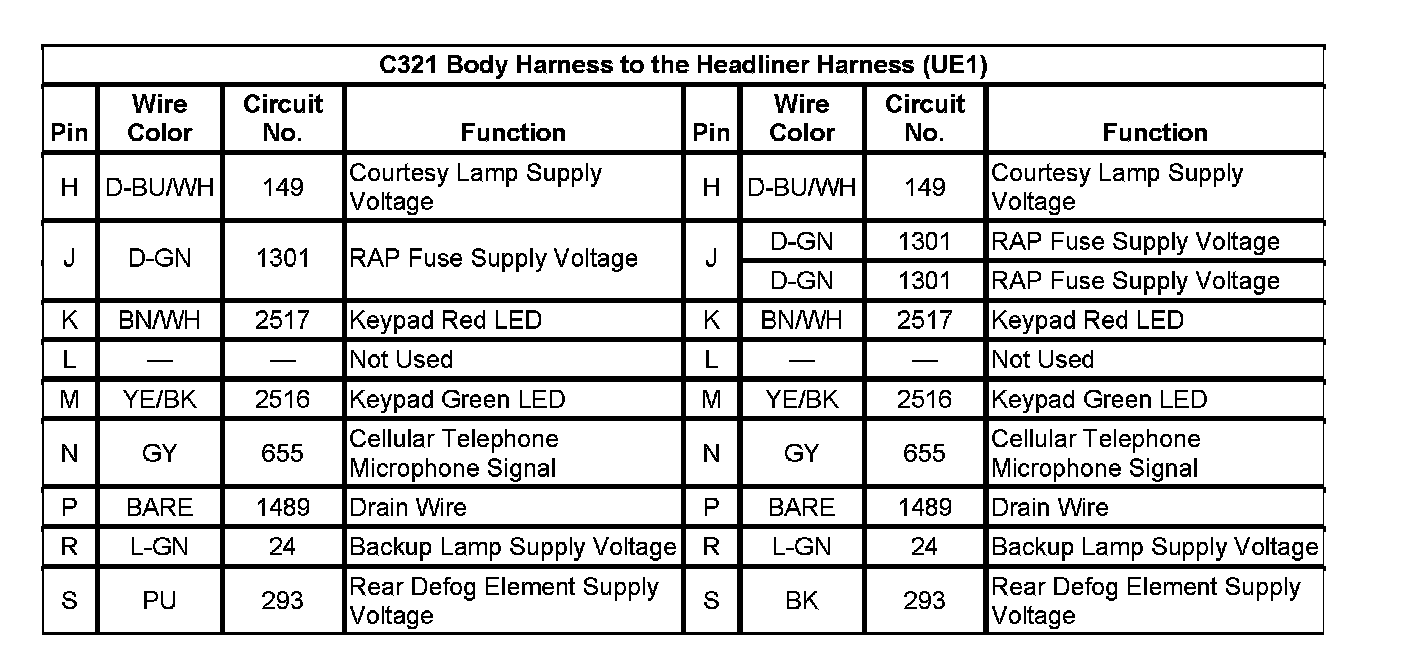

C321 Body Harness To The Headliner Harness (With RPO Code UE1):

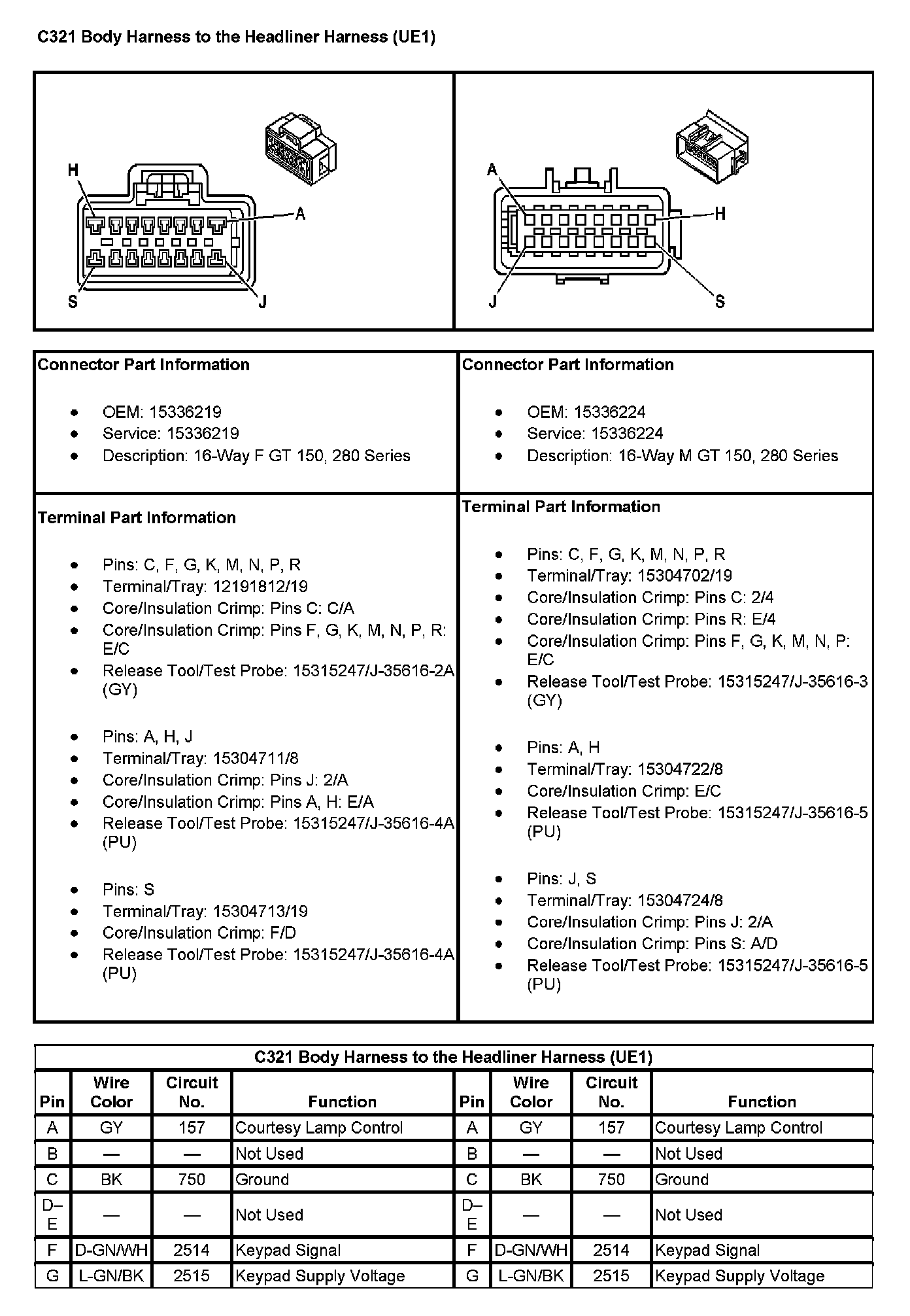

C321 Body Harness To The Headliner Harness (With RPO Code UE1) (Pin H To S):
