C300

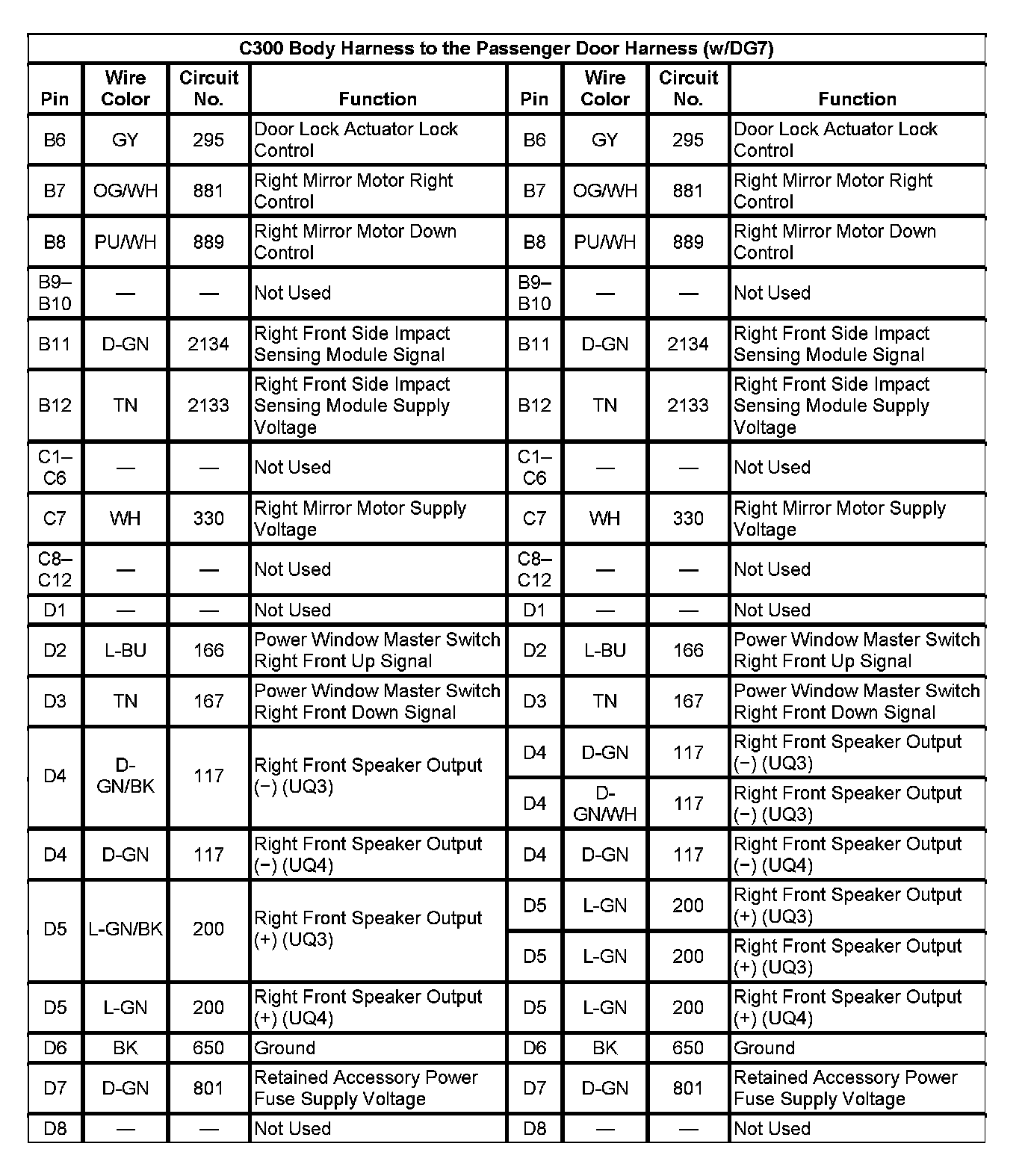

C300 Body Harness To The Passenger Door Harness (With RPO Code DG7):



C300 Body Harness To The Passenger Door Harness (With RPO Code DG7):

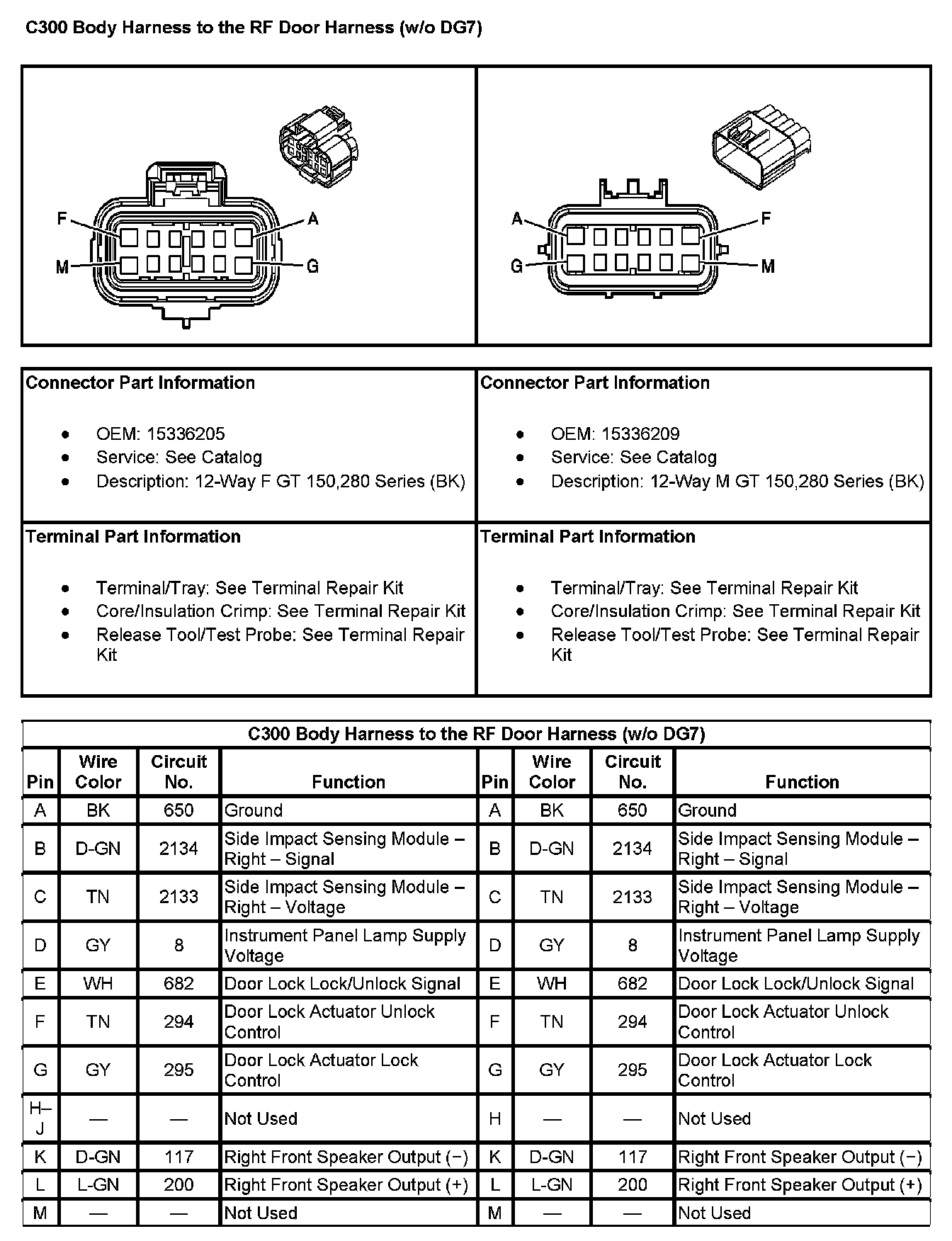

C300 Body Harness To The RF Door Harness (Without RPO Code DG7):
