C202
C202

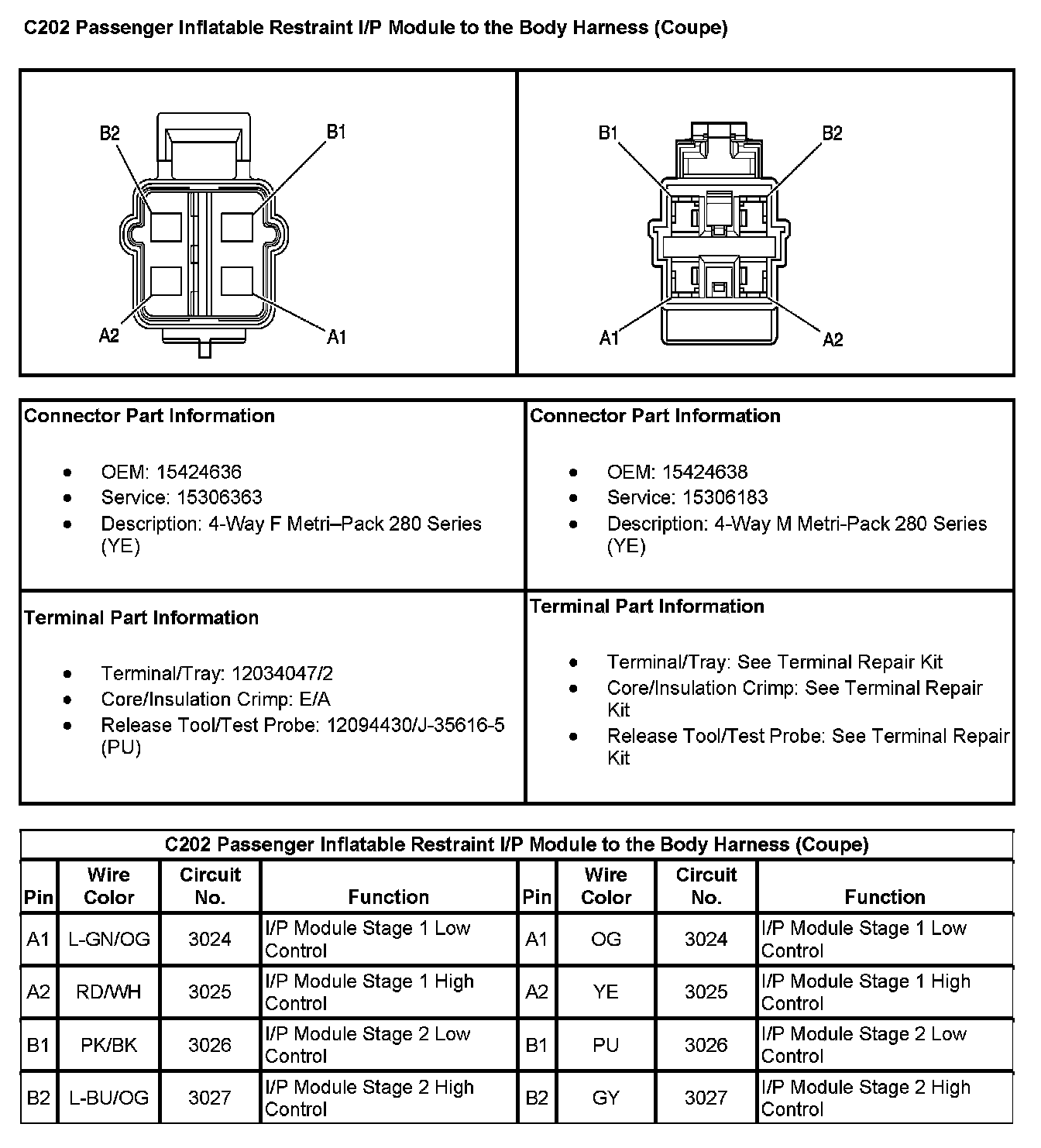

C202 Passenger Inflatable Restraint I/P Module To The Body Harness (Coupe) (Pin A1 To B2):

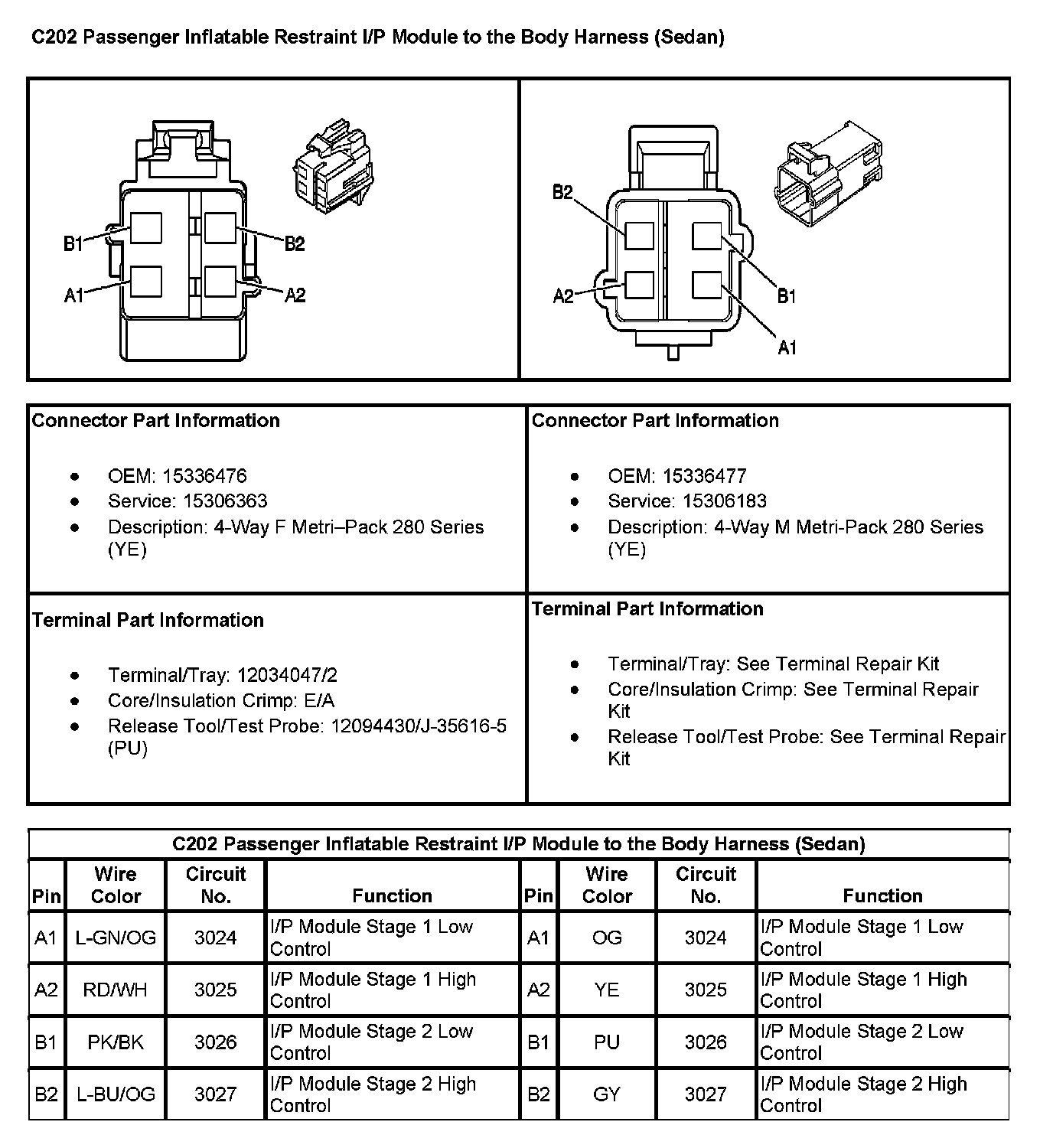

C202 Passenger Inflatable Restraint I/P Module To The Body Harness (Sedan):
