C201
C201

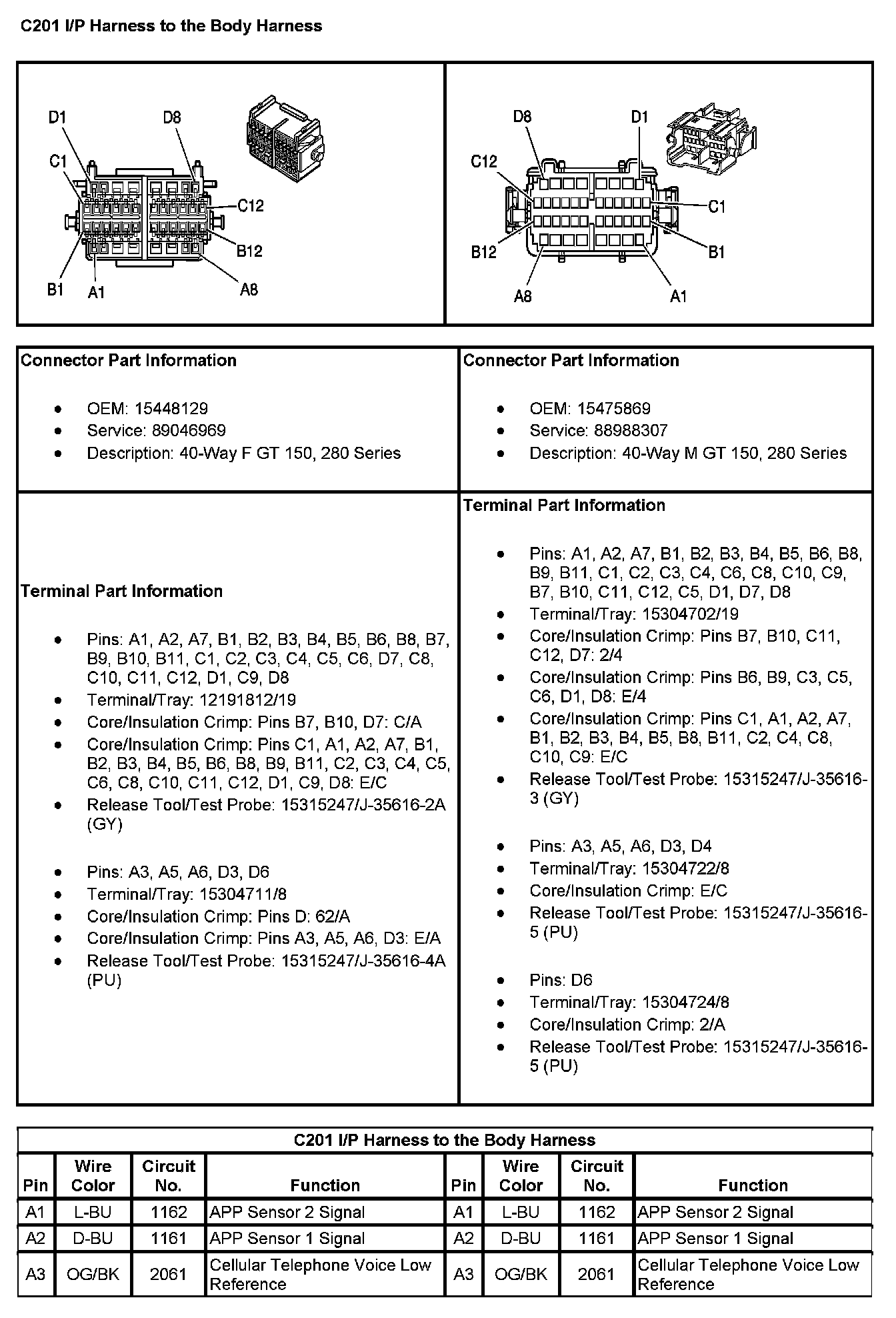

C201 I/P Harness To The Body Harness (Pin A1 To A3):
C201 I/P Harness To The Body Harness (Pin A4 To C12):

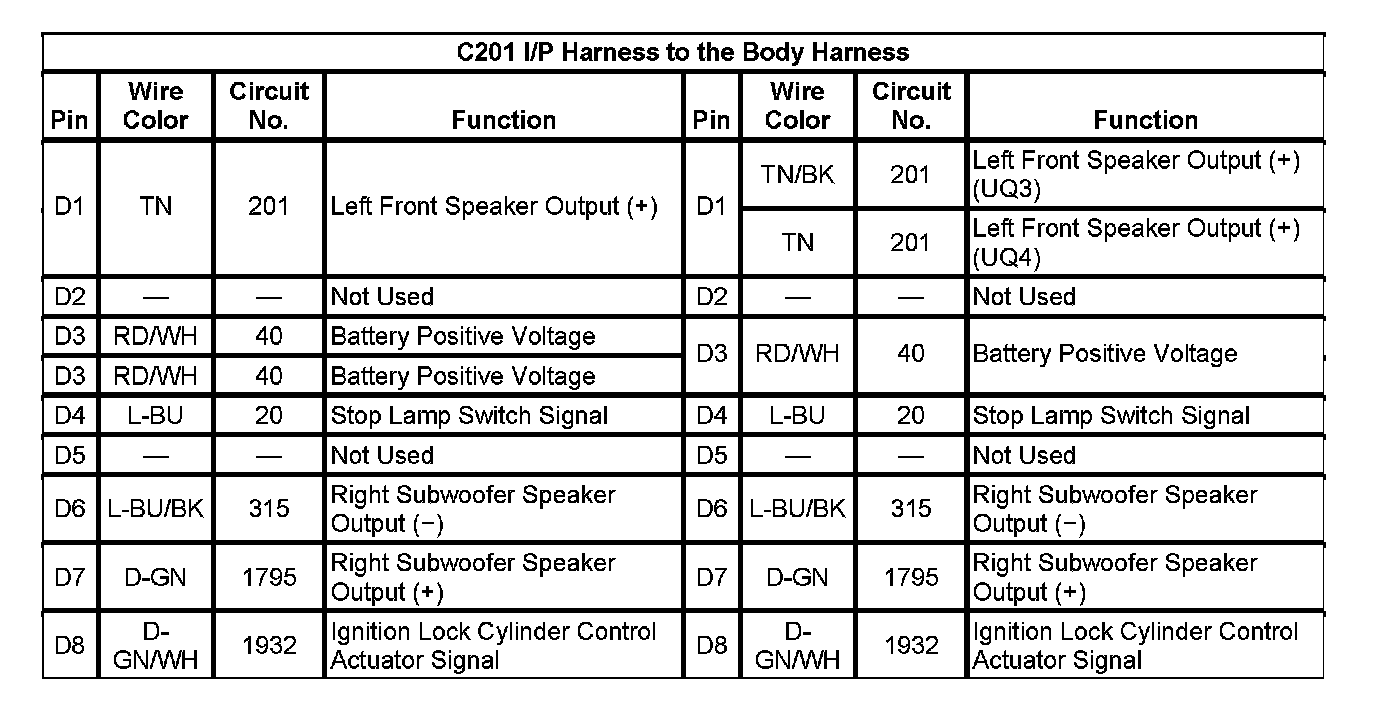

C201 I/P Harness To The Body Harness (Pin D1 To D8):
