Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C100 - C199 >> C111

C111

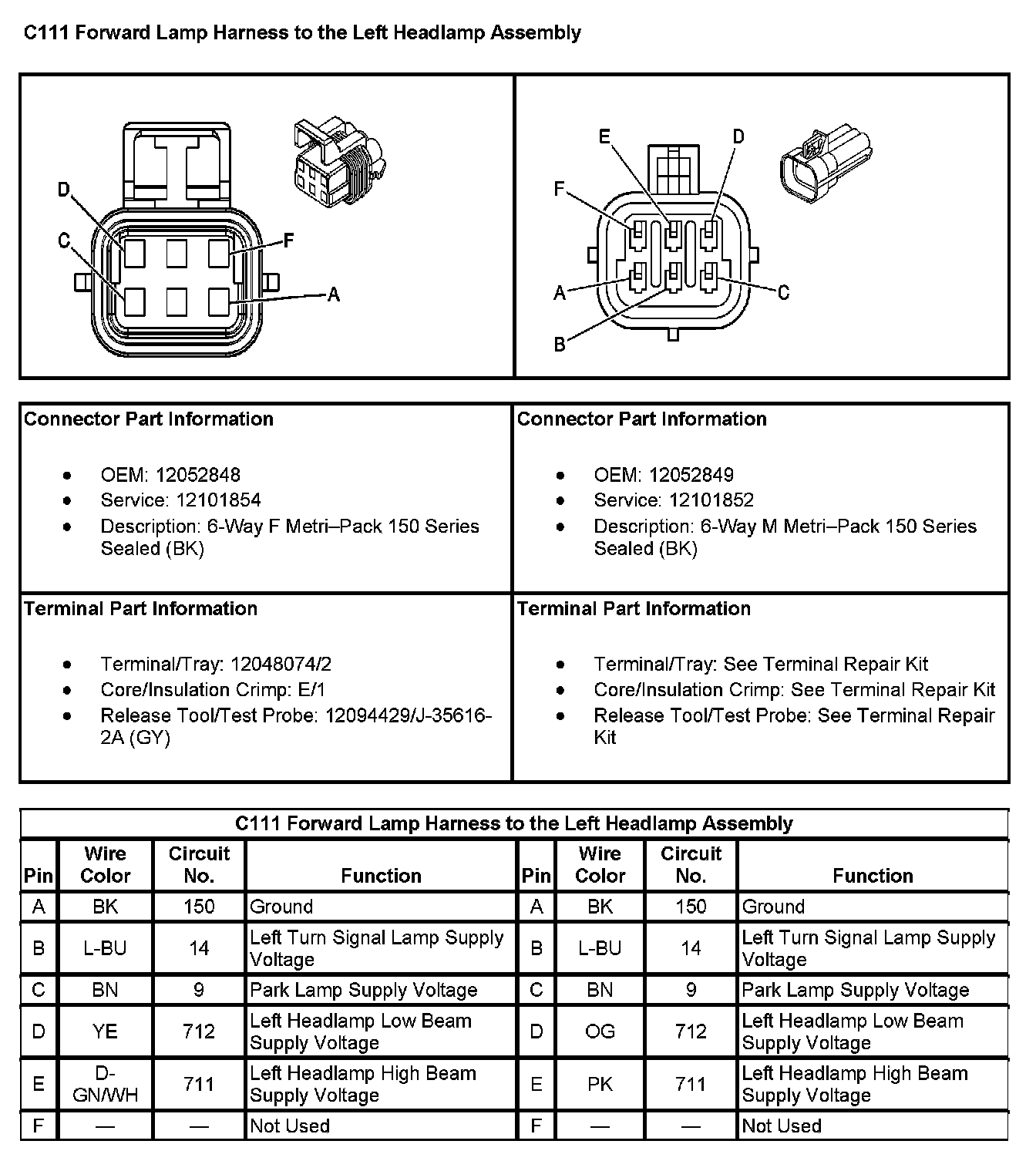

C111 Forward Lamp Harness To The Left Headlamp Assembly:
