Auxiliary Power Outlet

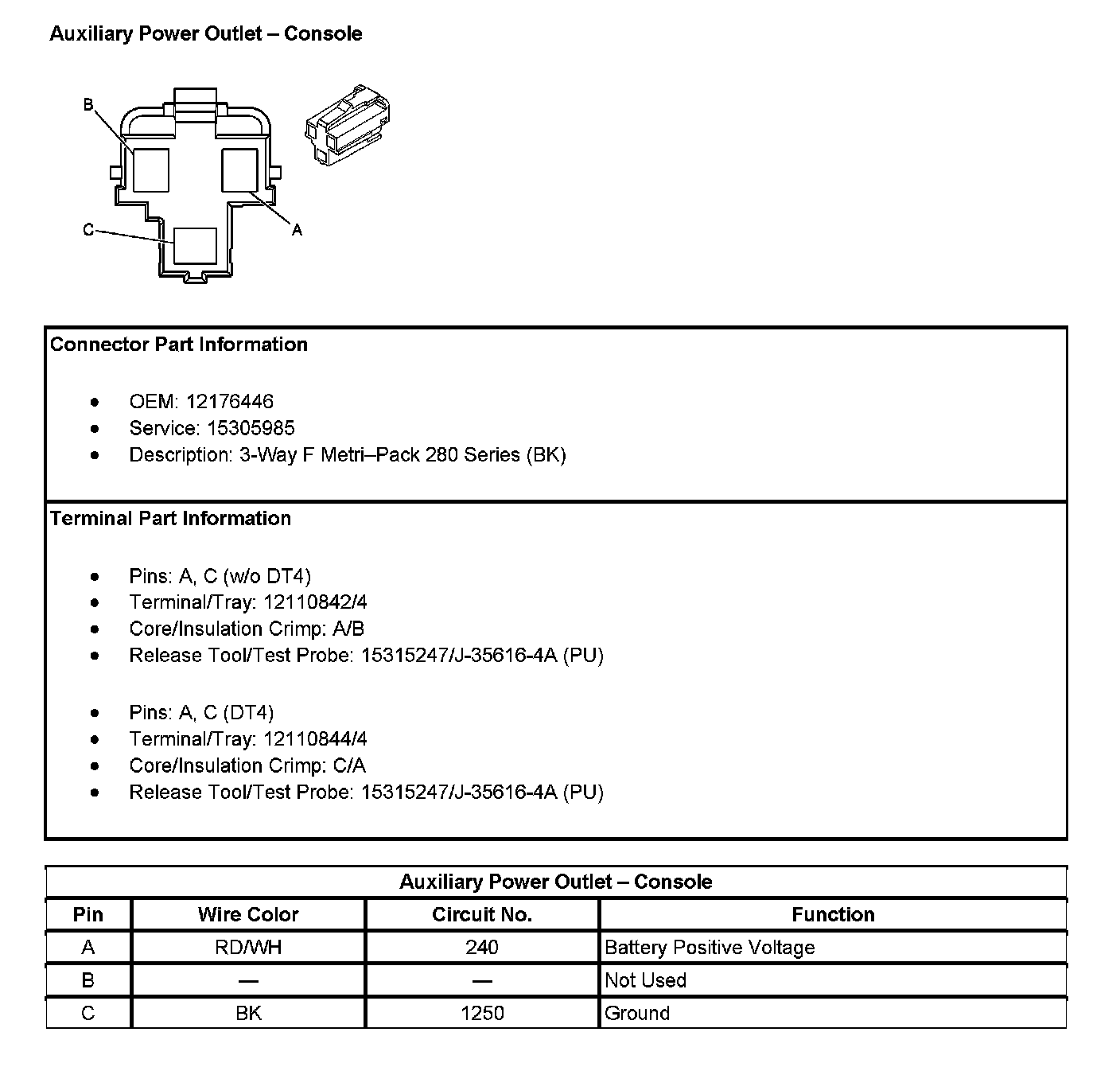

Auxiliary Power Outlet - Console:

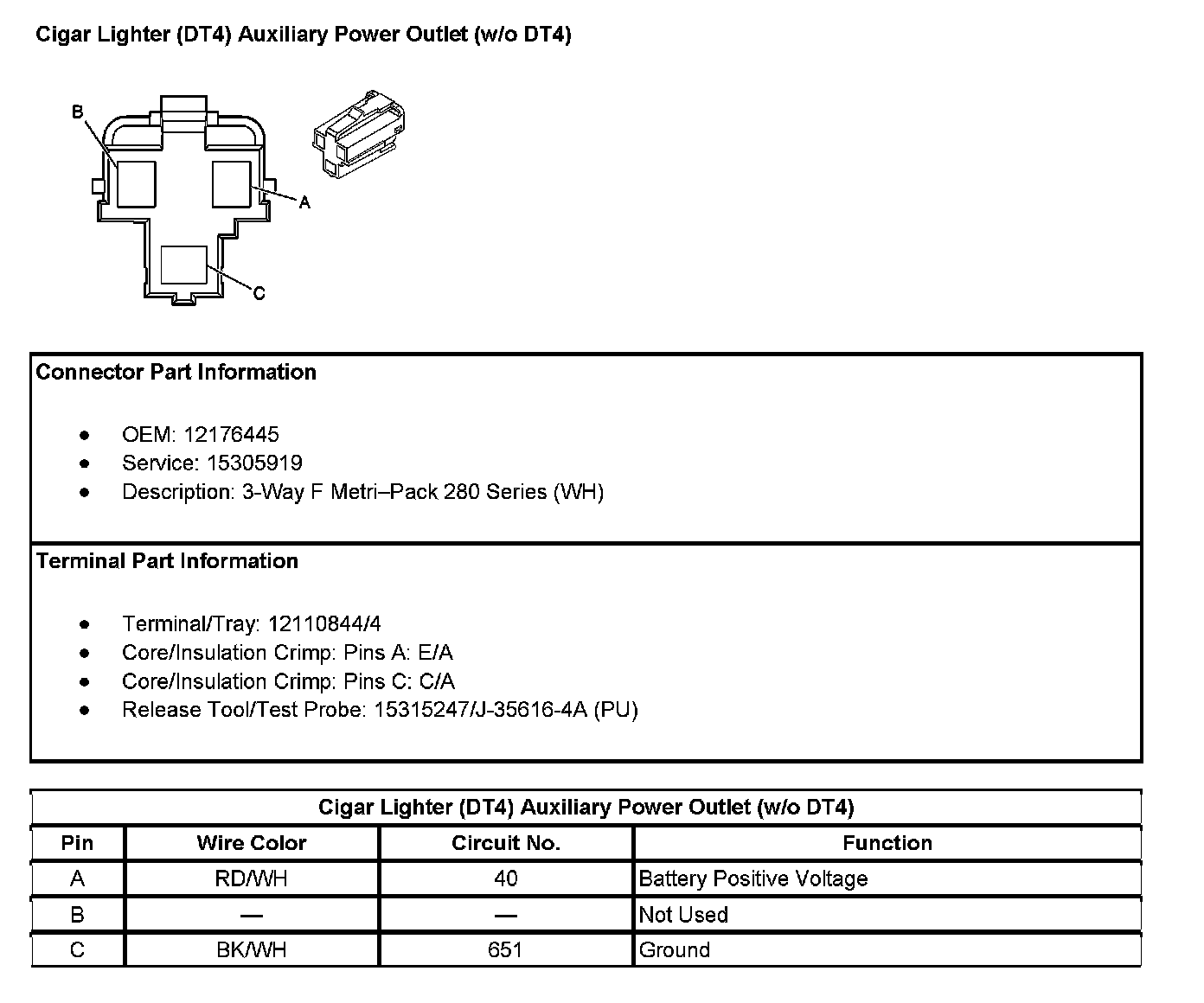

Cigar Lighter (With RPO Code DT4) Auxiliary Power Outlet (Without RPO Code DT4):
