Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radiator Cooling Fan >> Cooling Fan - 2

Cooling Fan - 2

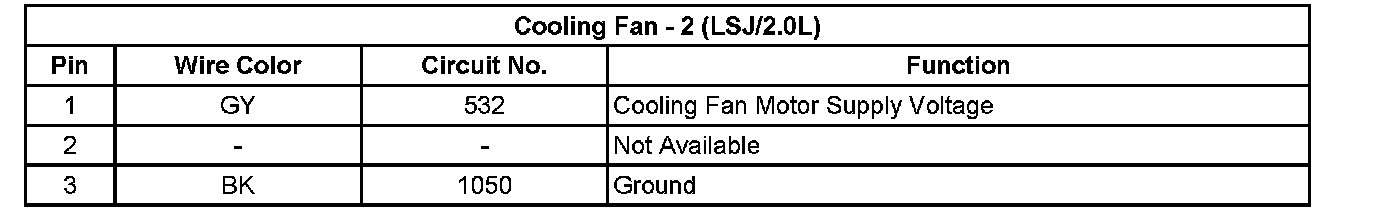

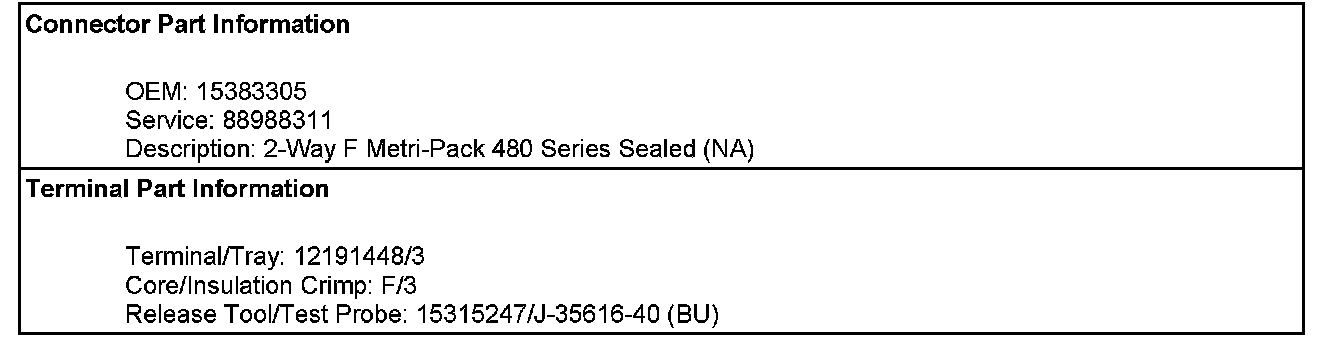

Cooling Fan - 2 (LSJ/2.0L)







Cooling Fan - 2 (LSJ/2.0L):
