Manifold Pressure/Vacuum Sensor



Engine Controls Connector End Views

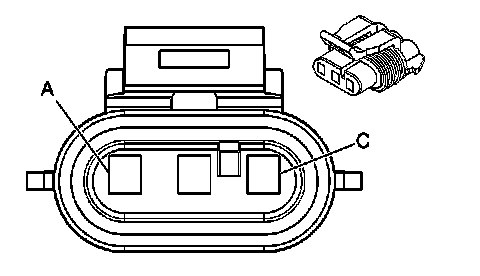

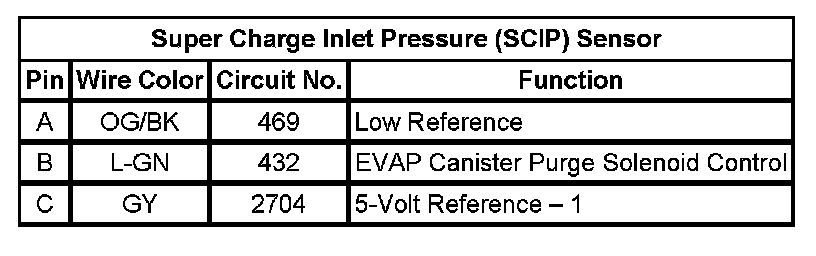

Super Charge Inlet Pressure (SCIP) Sensor

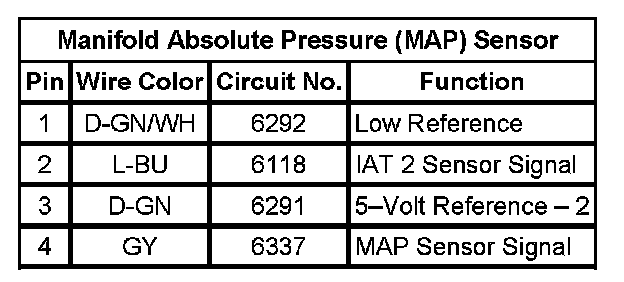

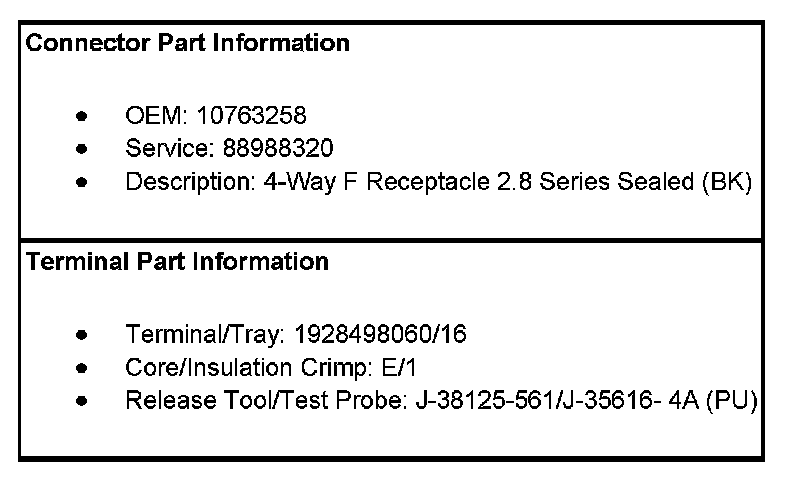

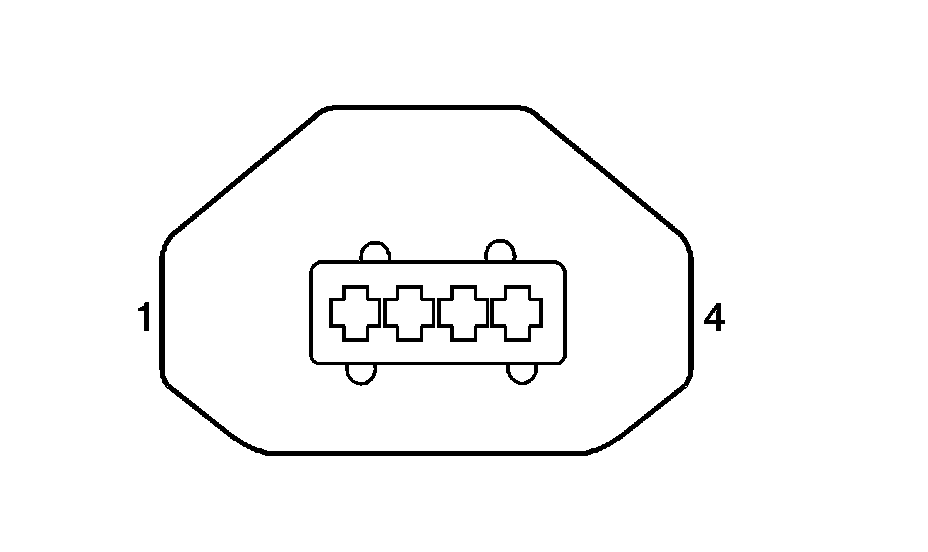

Manifold Absolute Pressure (MAP) Sensor
