Electronic Throttle Control Module

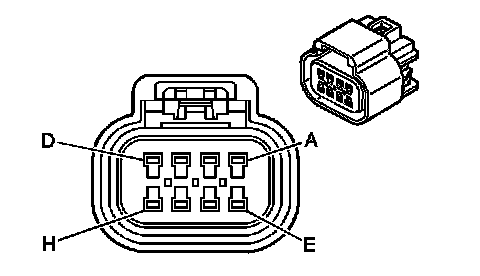

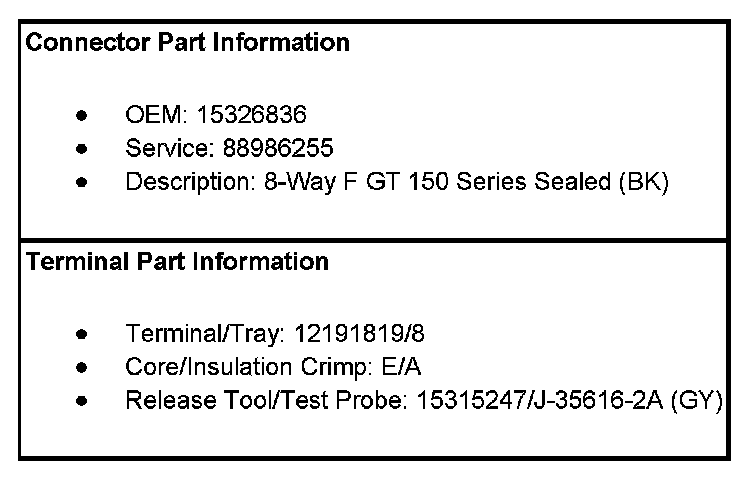

Engine Controls Connector End Views

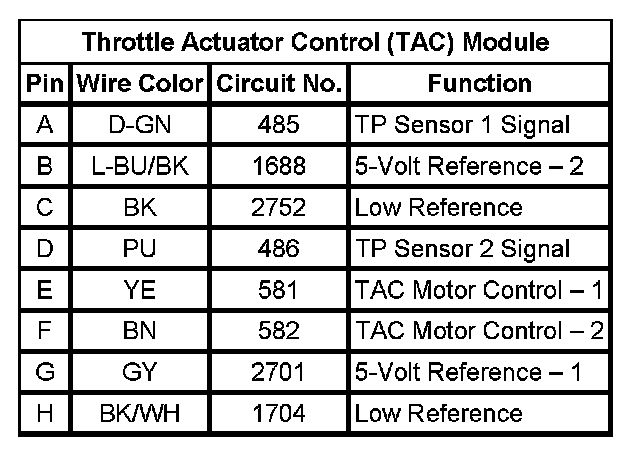

Throttle Actuator Control (TAC) Module
