Electronic Brake Control Module

Electronic Brake Control Module (EBCM) (JM4/JL9)

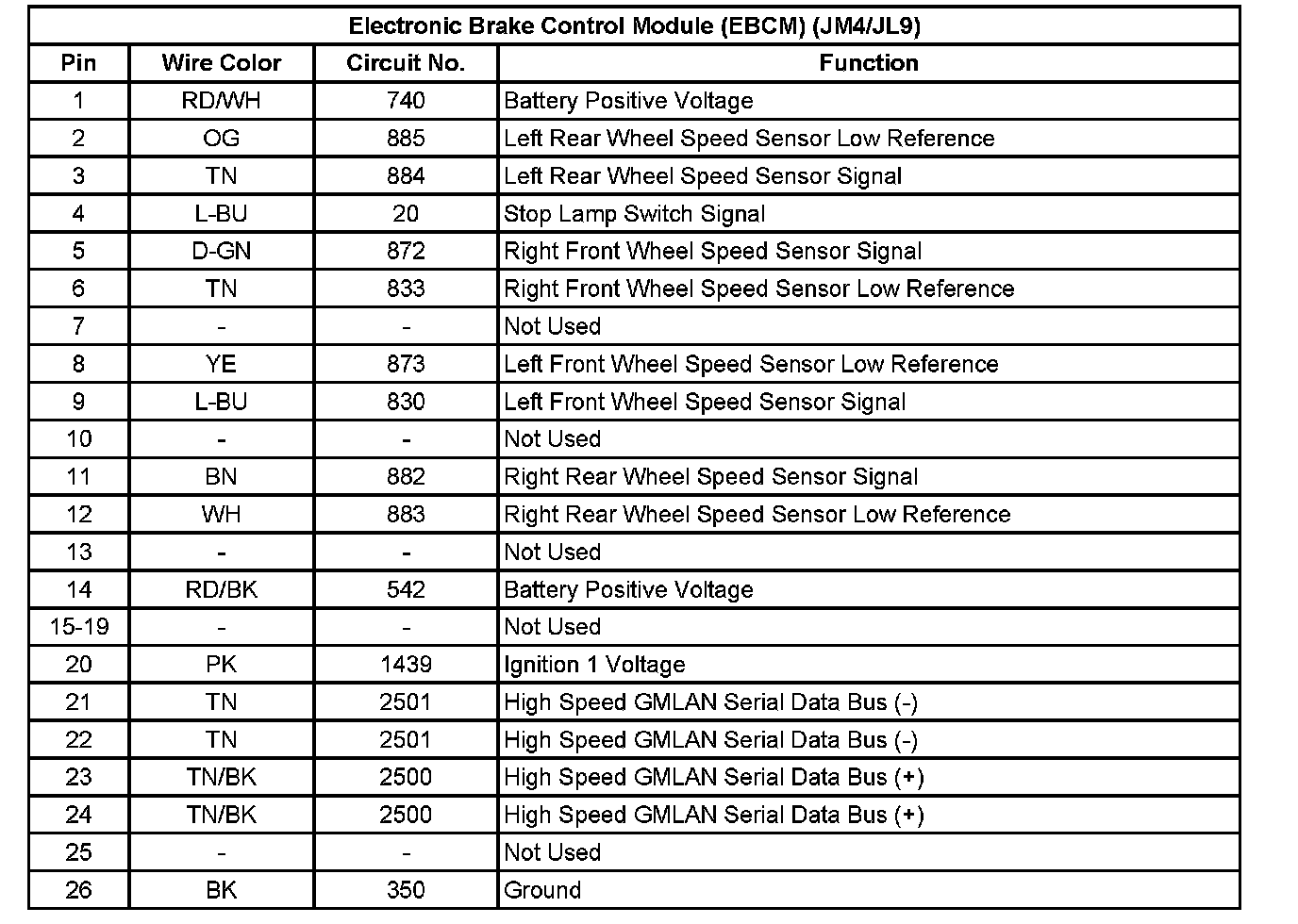

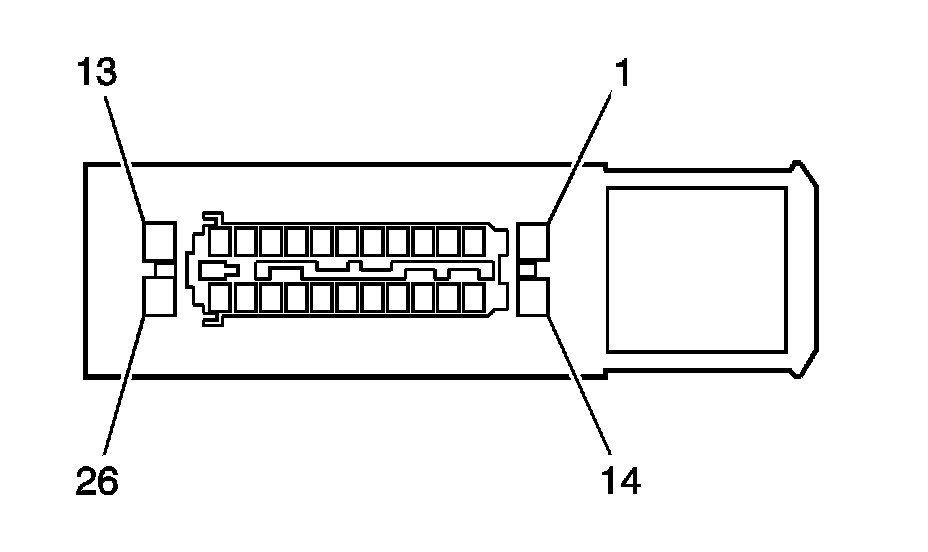

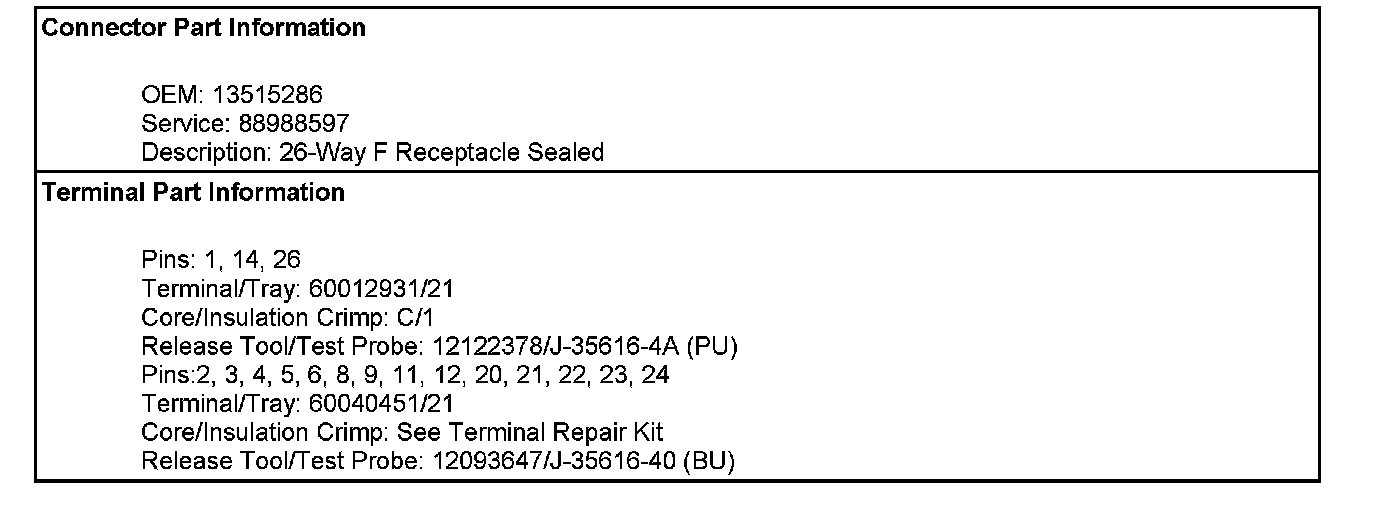

Electronic Brake Control Module (EBCM) (JM4/JL9):
