Control Module HVAC

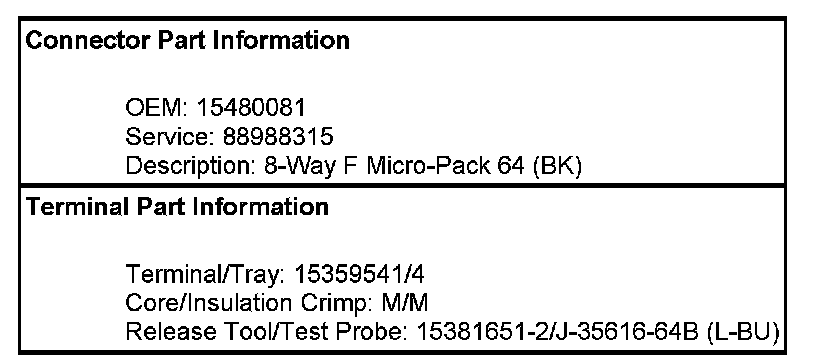

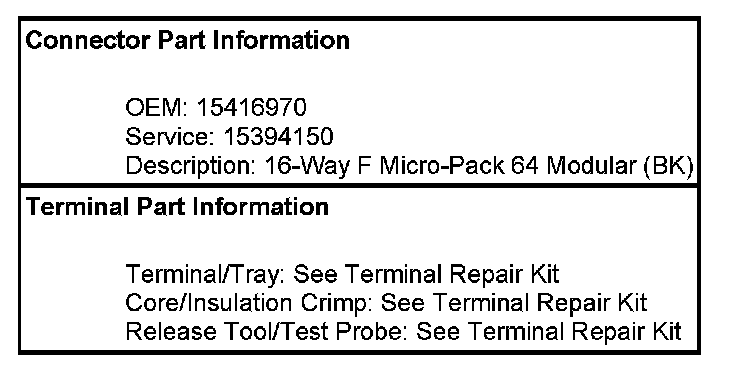

HVAC Connector End Views

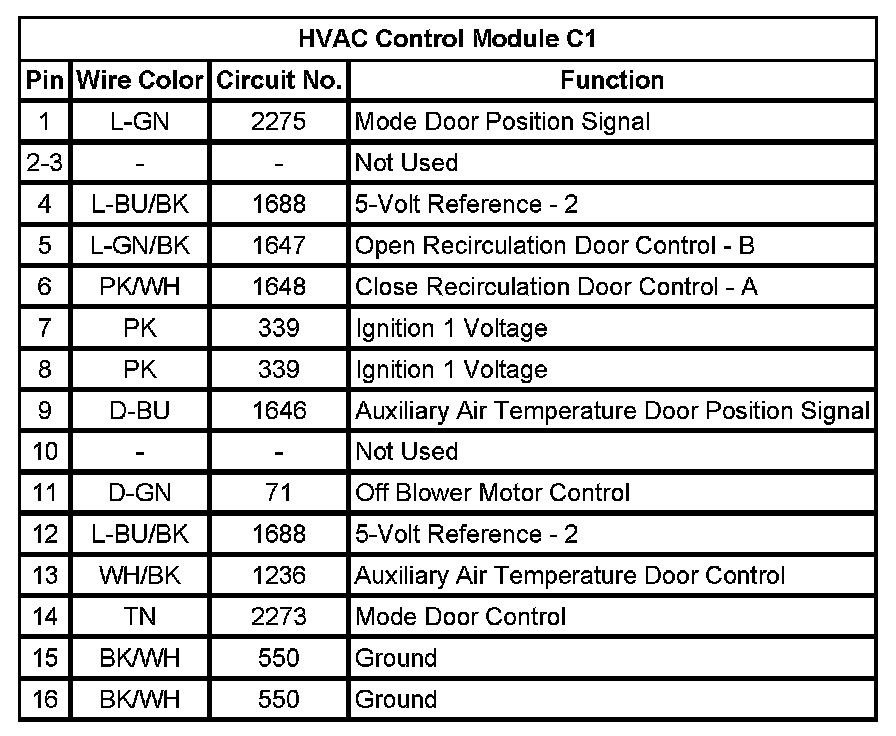

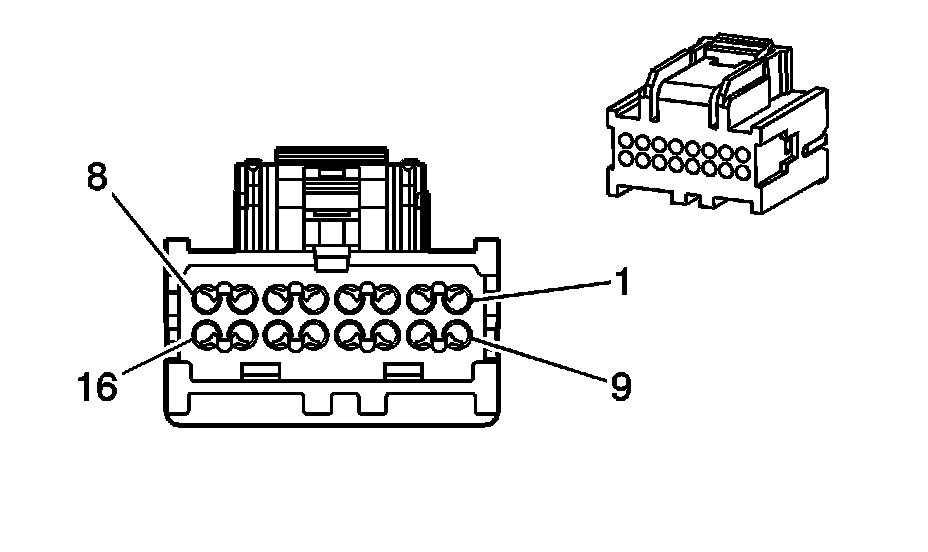

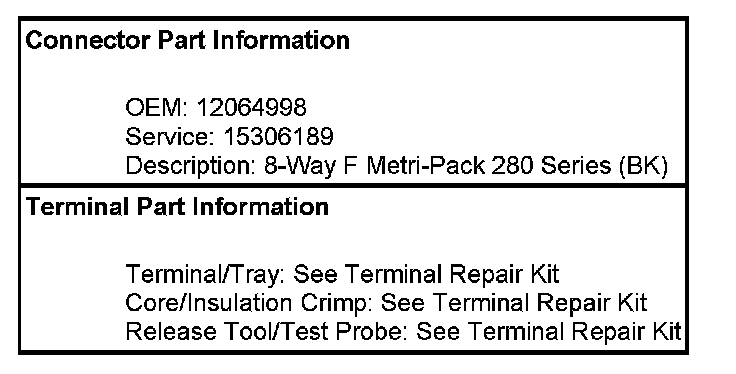

HVAC Control Module C1

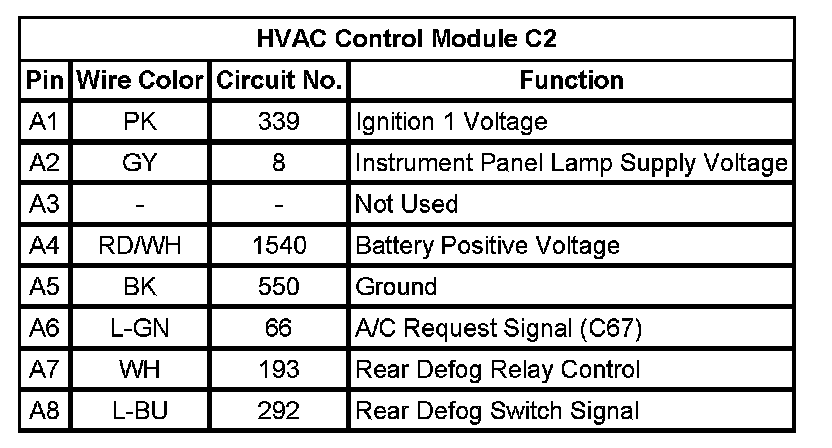

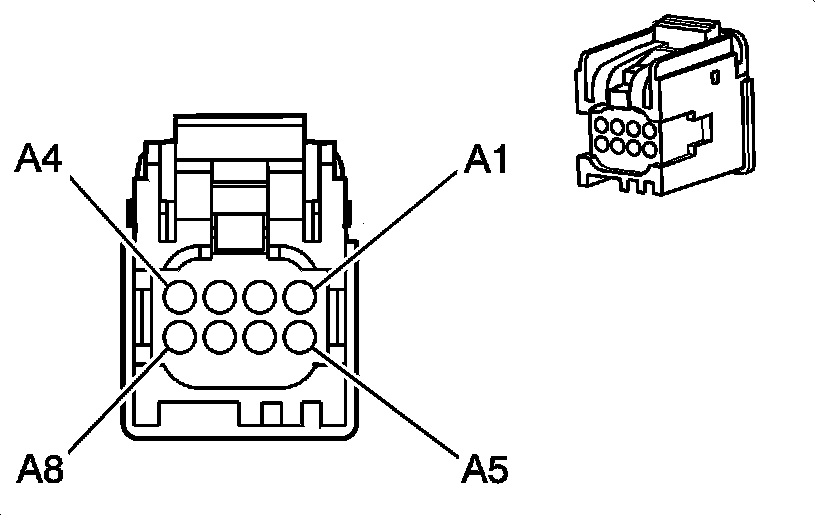

HVAC Control Module C2

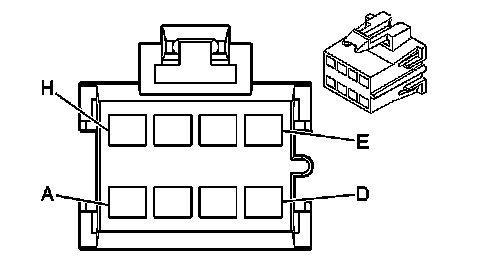

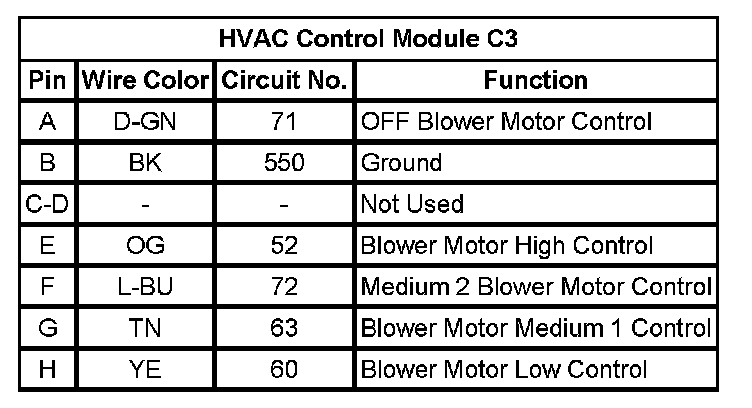

HVAC Control Module C3
