Chevrolet
>>
2007
>>
Cobalt L4-2.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) - C4
Body Control Module (BCM) - C4

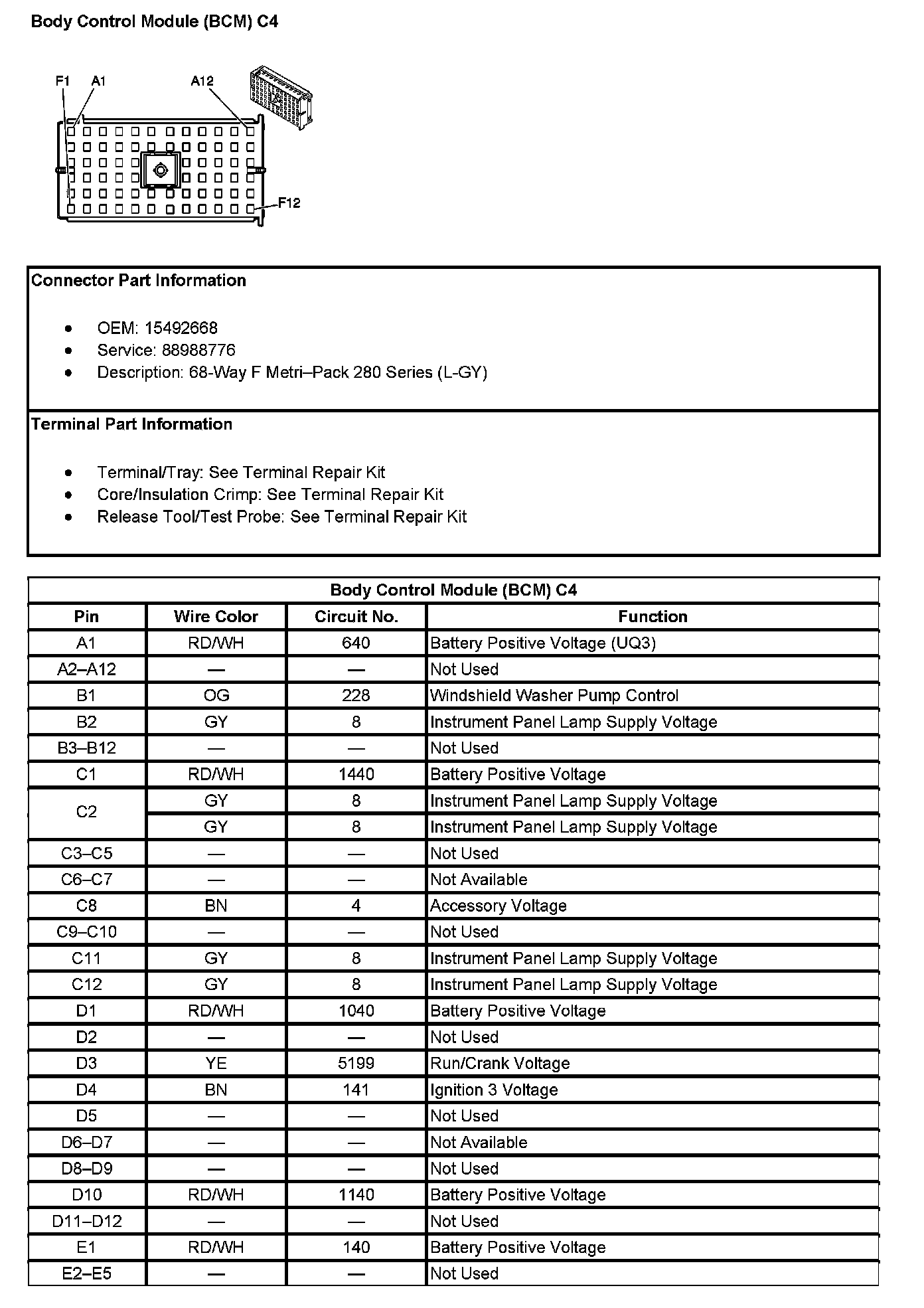

Body Control Module (BCM) C4 (Pin A1 To E5):

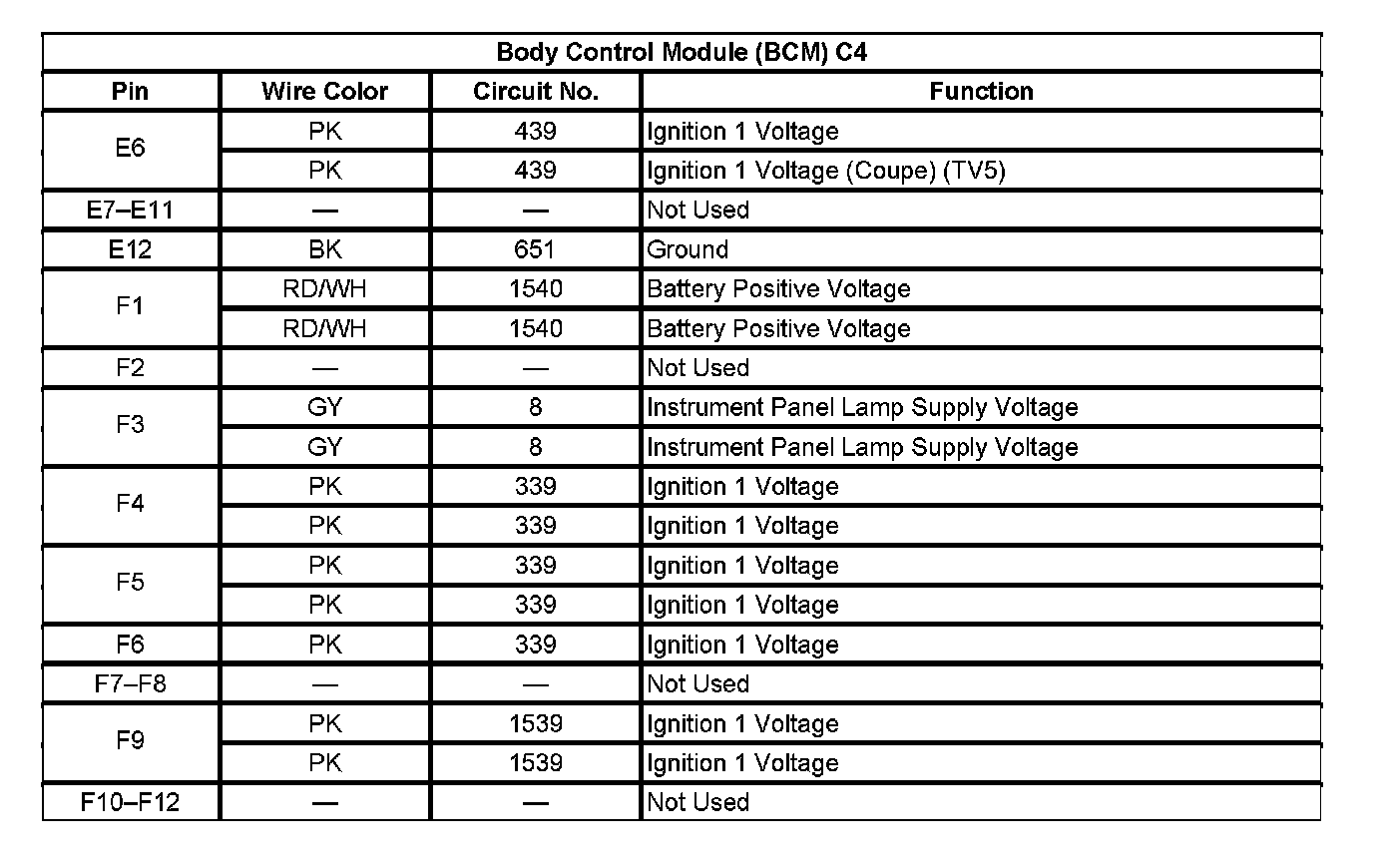

Body Control Module (BCM) C4 (Pin E6 To F12):
