Cobalt L4-2.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) - C3
Body Control Module (BCM) - C3

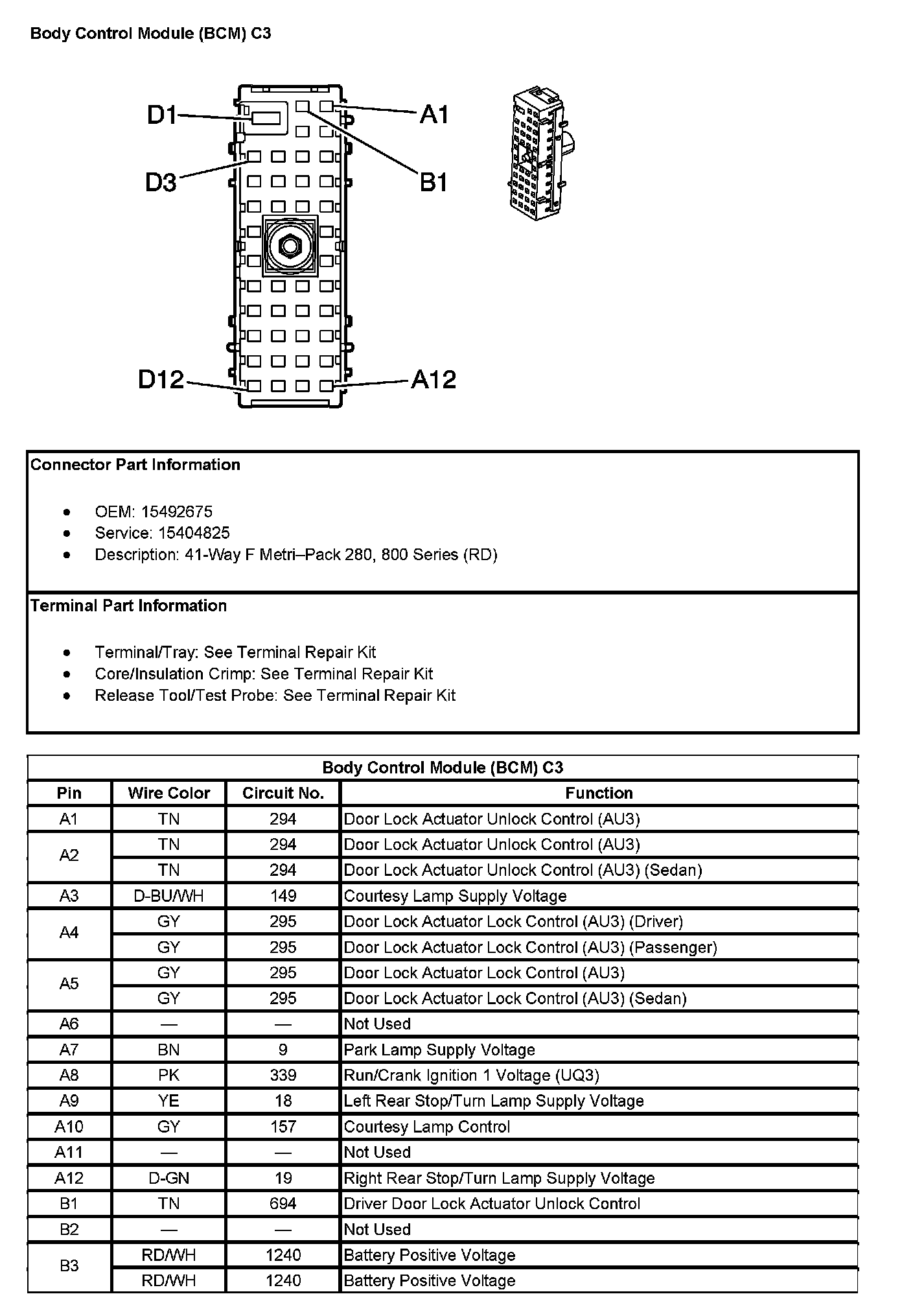

Body Control Module (BCM) C3 (Pin A1 To B3):

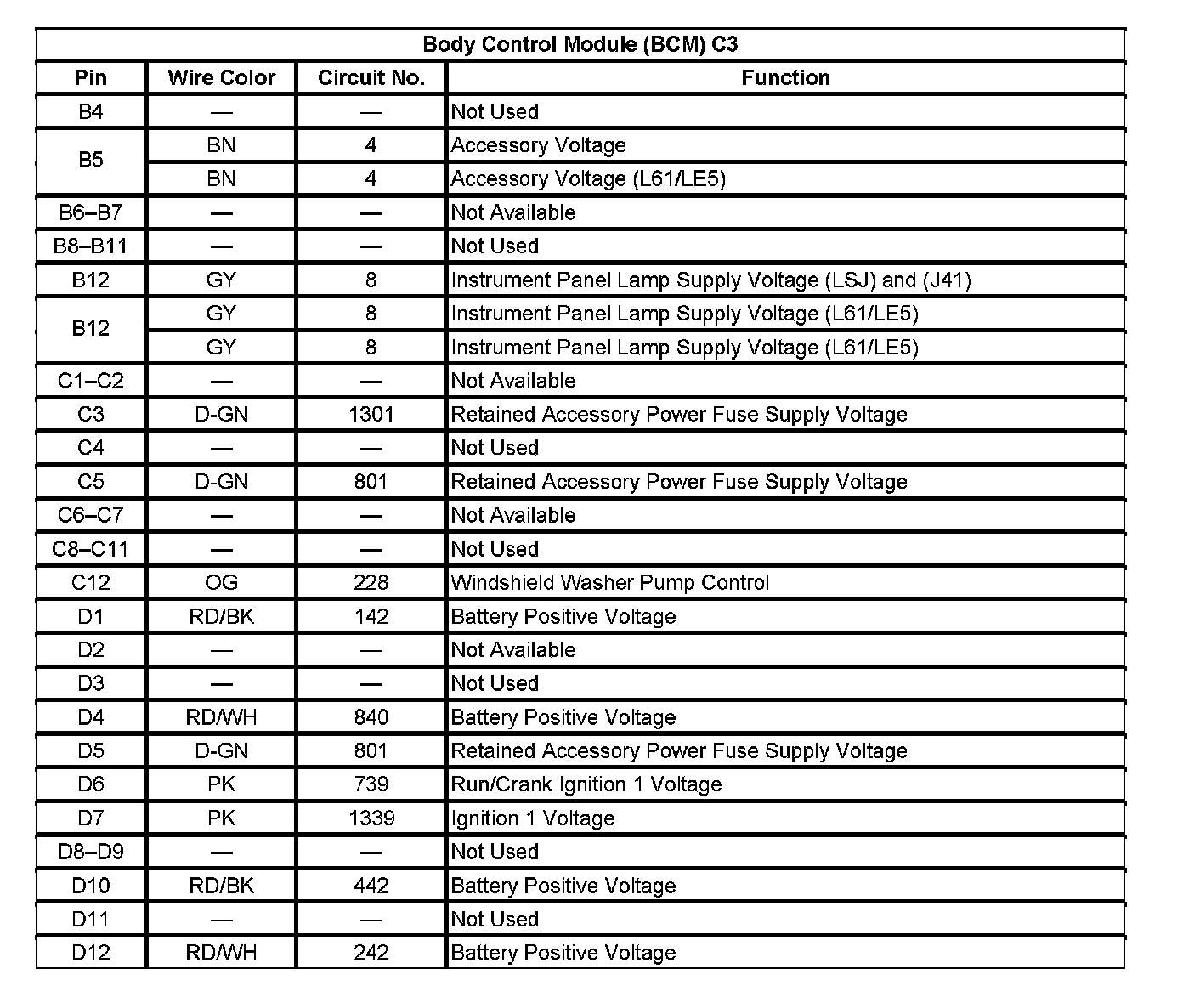

Body Control Module (BCM) C3 (Pin B4 To D12):
