Chevrolet
>>
2007
>>
Cobalt L4-2.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) - C2
Body Control Module (BCM) - C2

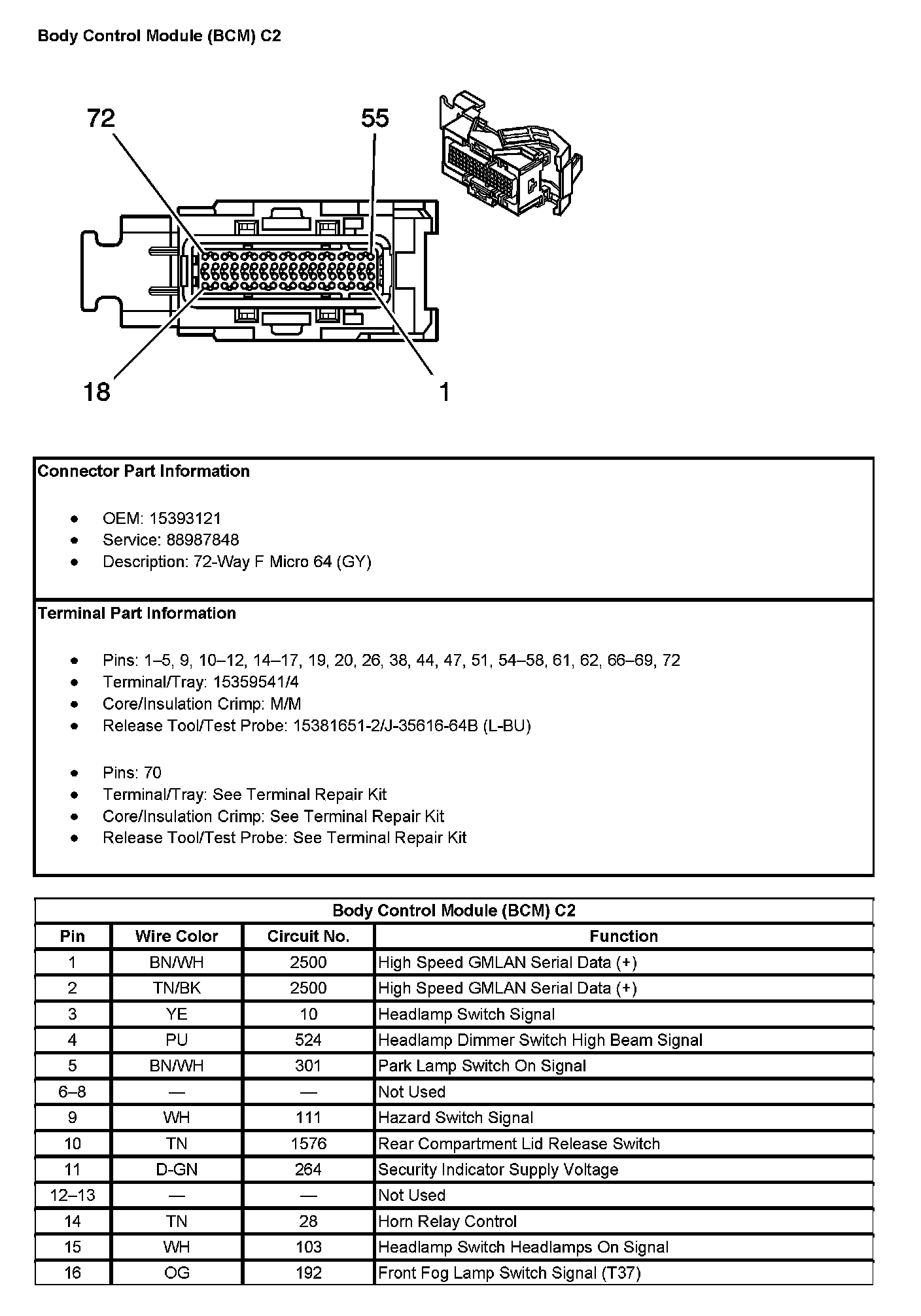

Body Control Module (BCM) C2 (Pin 1 To 16):

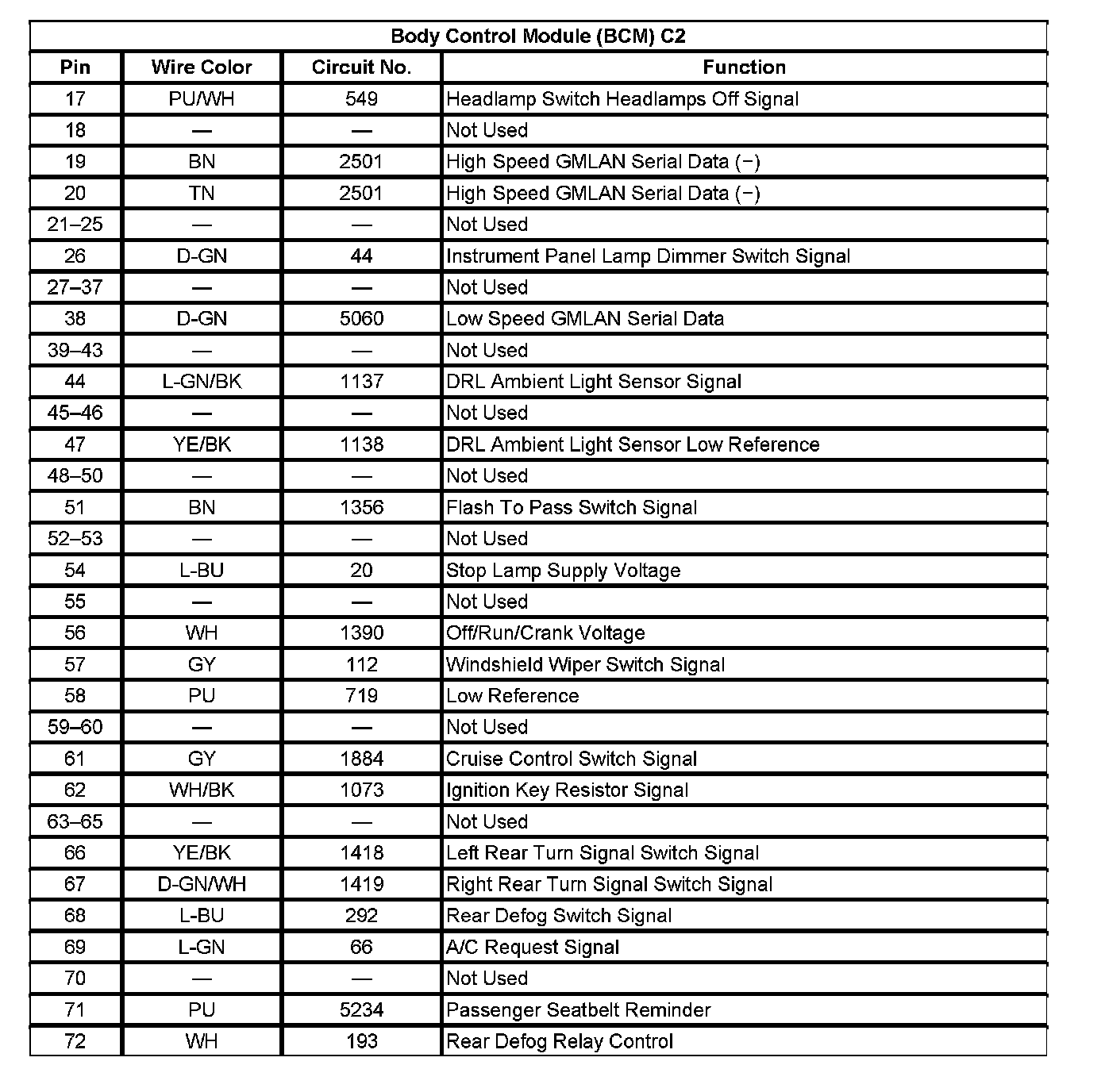

Body Control Module (BCM) C2 (Pin 17 To 72):
