Automatic Transmission Related Connector End Views



Automatic Transmission Related Connector End Views

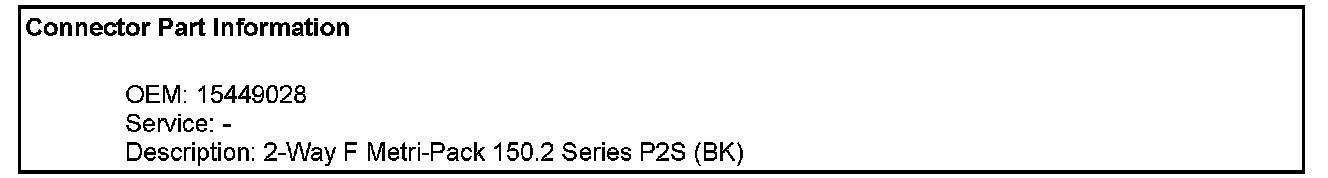

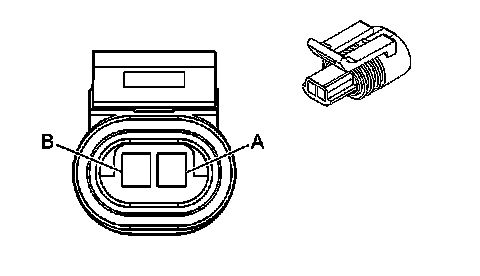

Output Speed Sensor (OSS), Wiring Harness Side

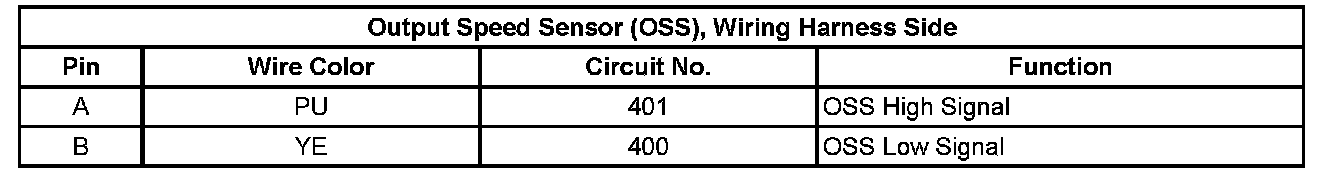

Output Speed Sensor (OSS), Wiring Harness Side:
