Automatic Transmission Internal Connector End Views



Automatic Transmission Internal Connector End Views

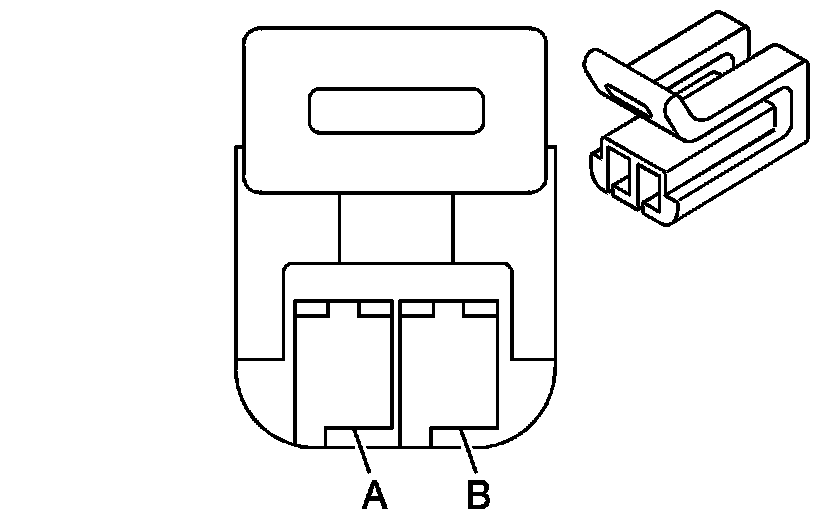

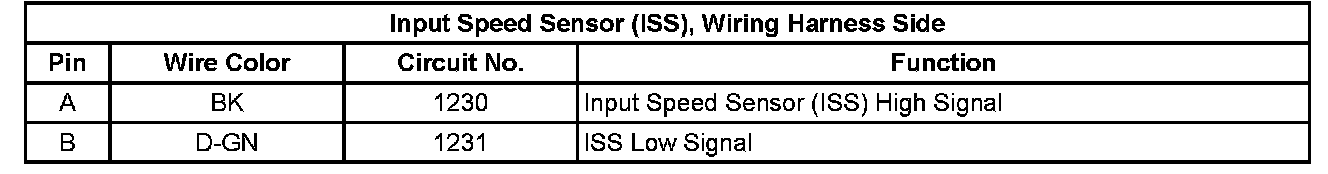

Input Speed Sensor (ISS), Wiring Harness Side







Input Speed Sensor (ISS), Wiring Harness Side:
