Transmission Position Sensor/Switch, A/T
Automatic Transmission Related Connector End Views

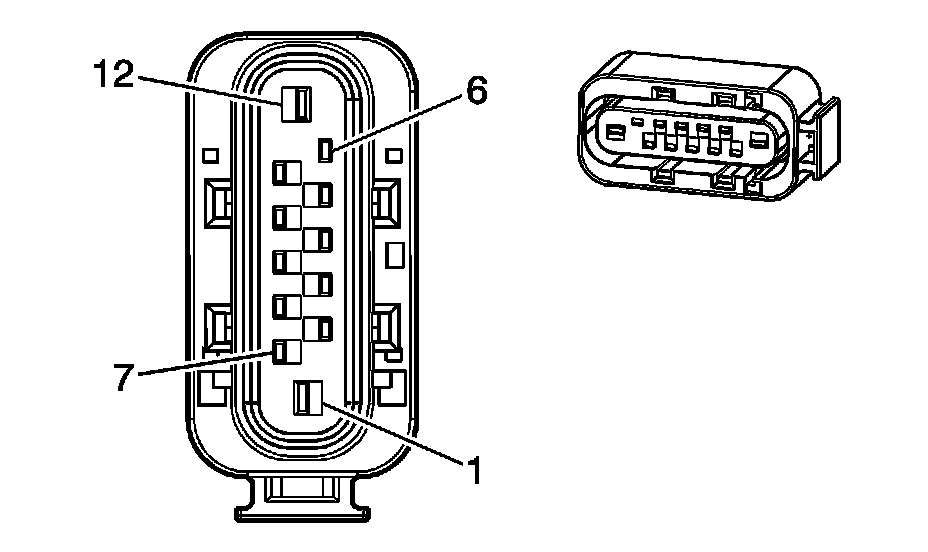

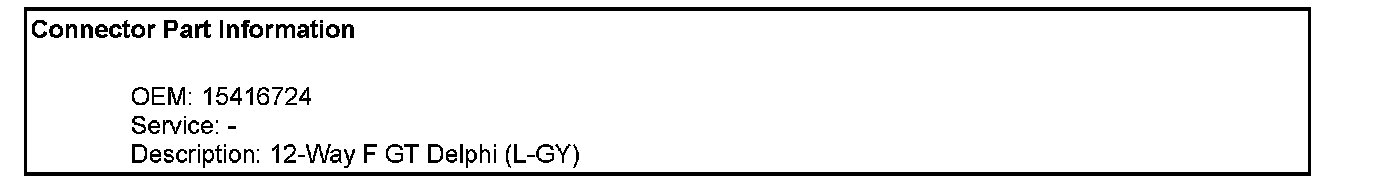

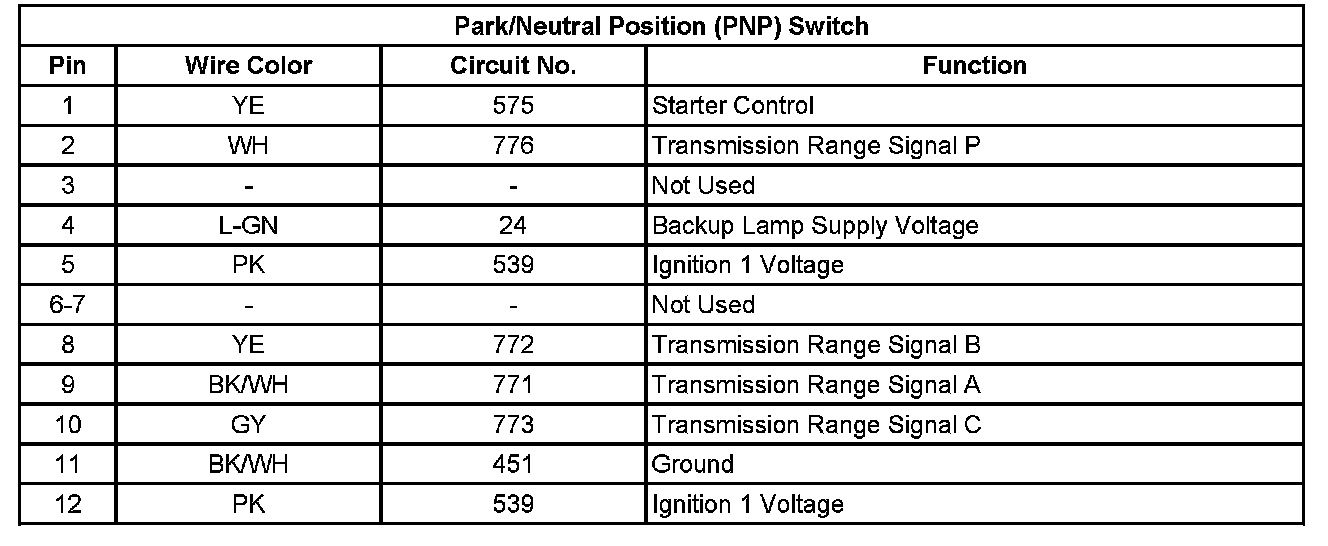

Park/Neutral Position (PNP) Switch
Park/Neutral Position (PNP) Switch:
