Shift Interlock, A/T

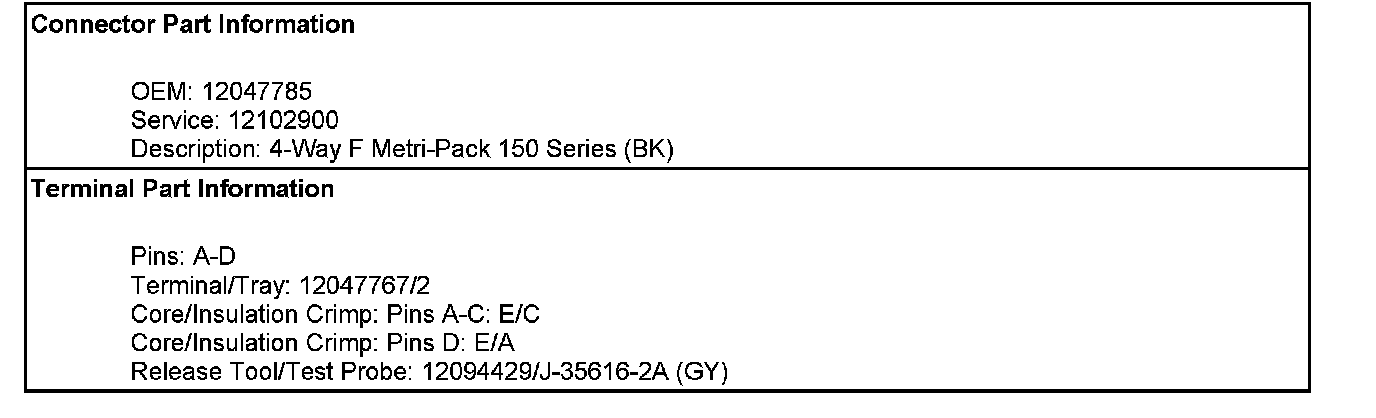

Shift Lock Control Connector End Views

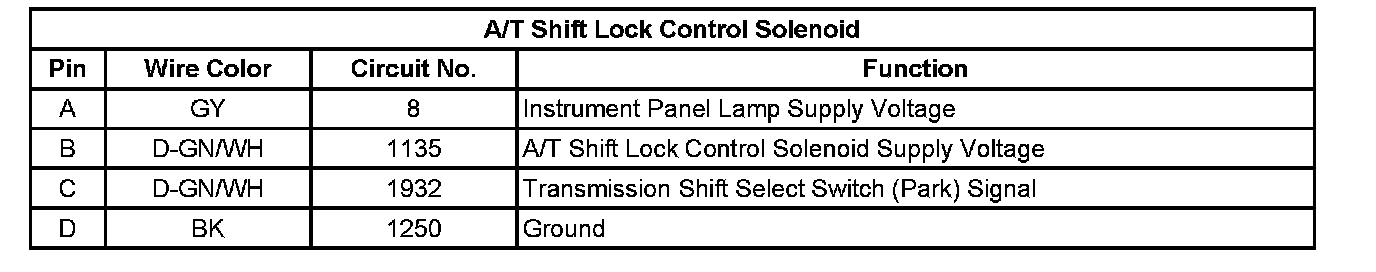

A/T Shift Lock Control Solenoid







A/T Shift Lock Control Solenoid:
