Pressure Regulating Solenoid, A/T

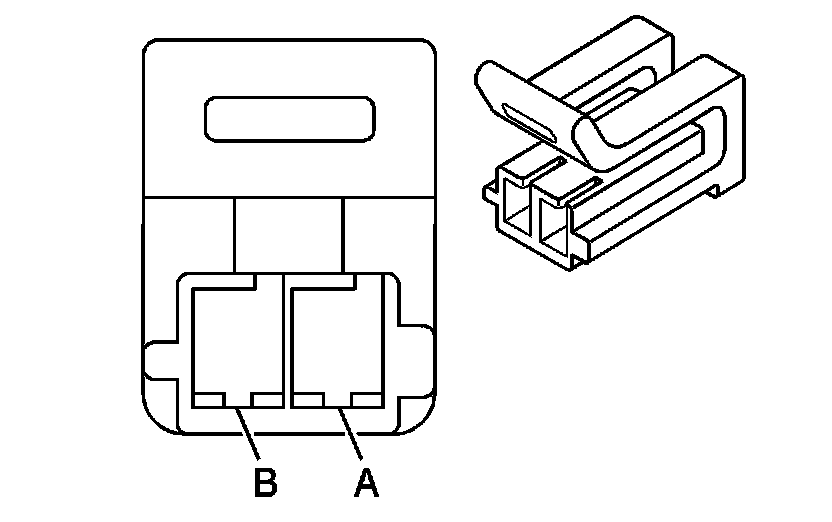

Automatic Transmission Internal Connector End Views

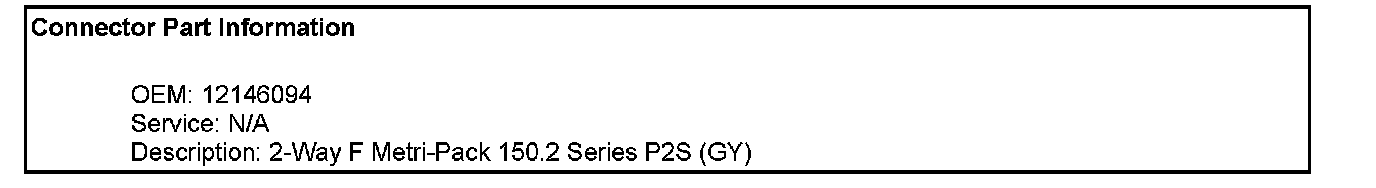

Pressure Control Solenoid Valve, Wiring Harness Side

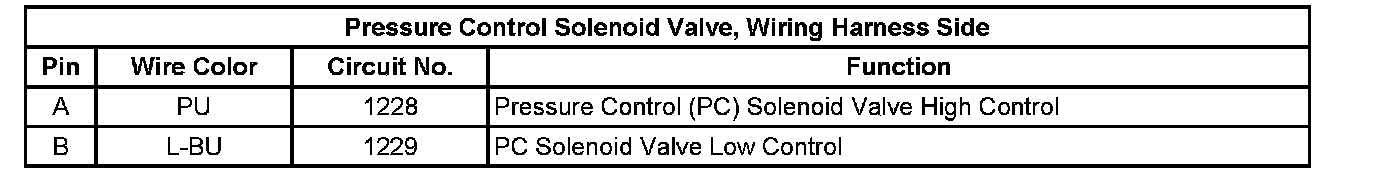

Pressure Control Solenoid Valve, Wiring Harness Side:
