Air Door Actuator / Motor, HVAC



HVAC Connector End Views

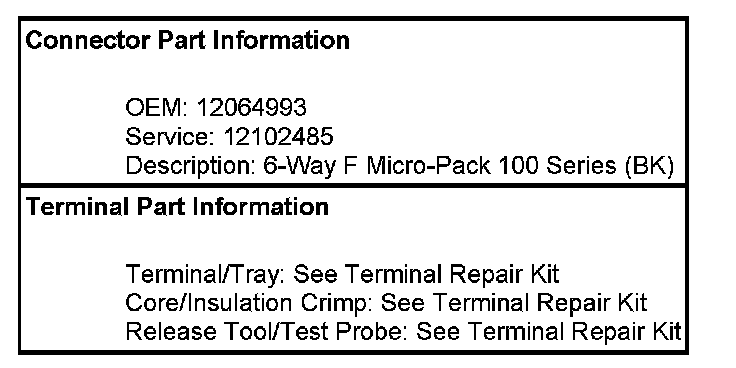

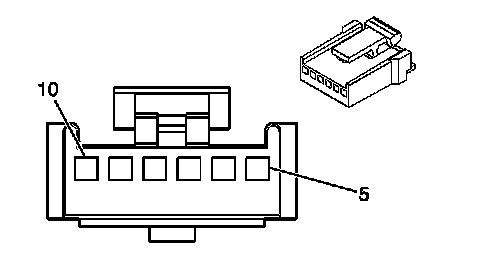

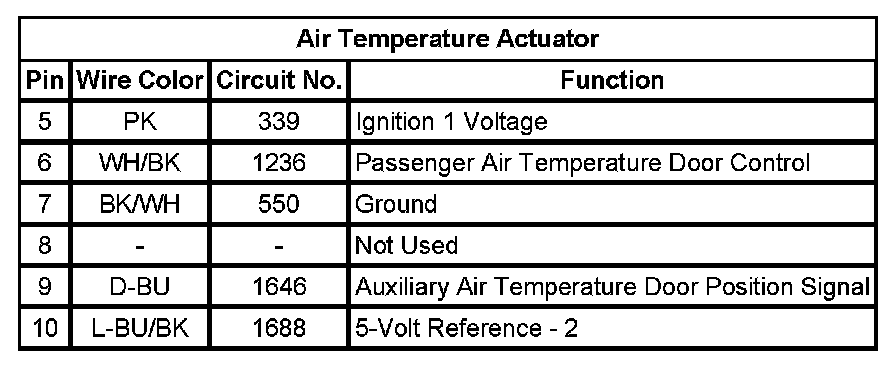

Air Temperature Actuator

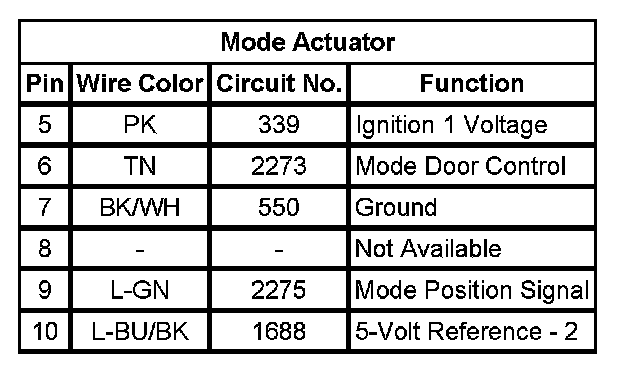

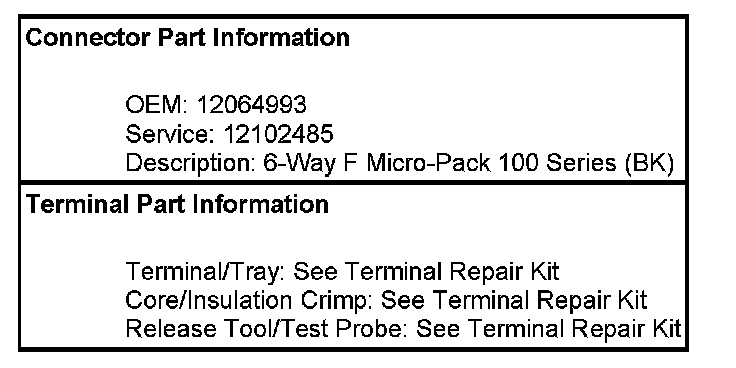

Mode Actuator

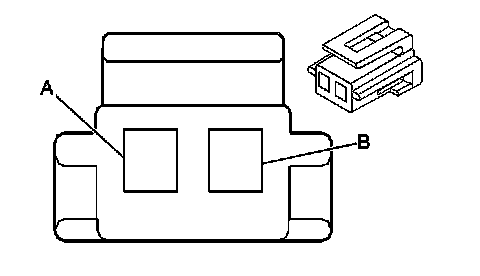

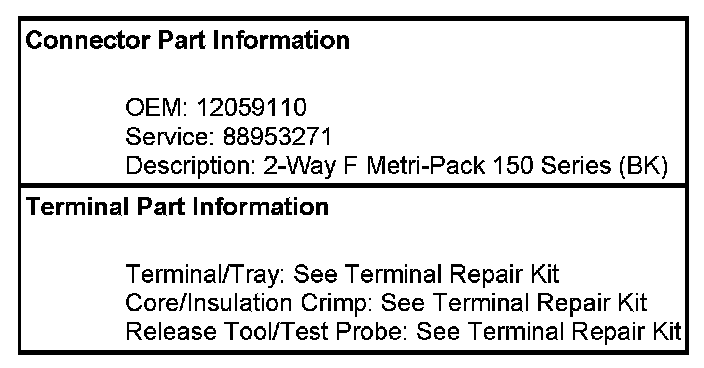

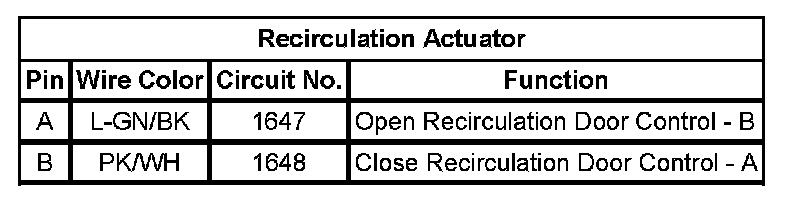

Recirculation Actuator

Auxiliary Transmission Fluid Pump (M33 Only):
