Cobalt L4-2.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components

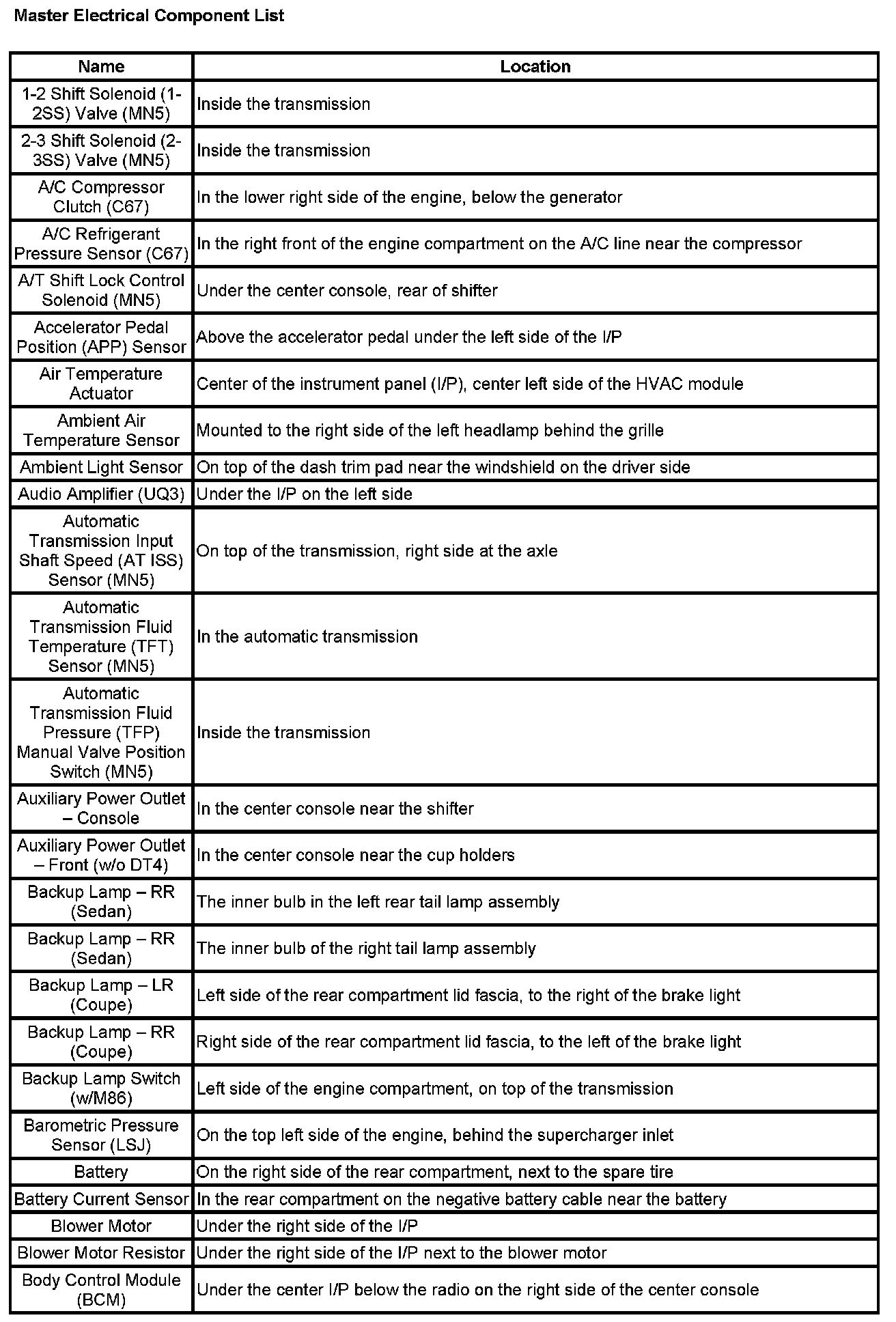

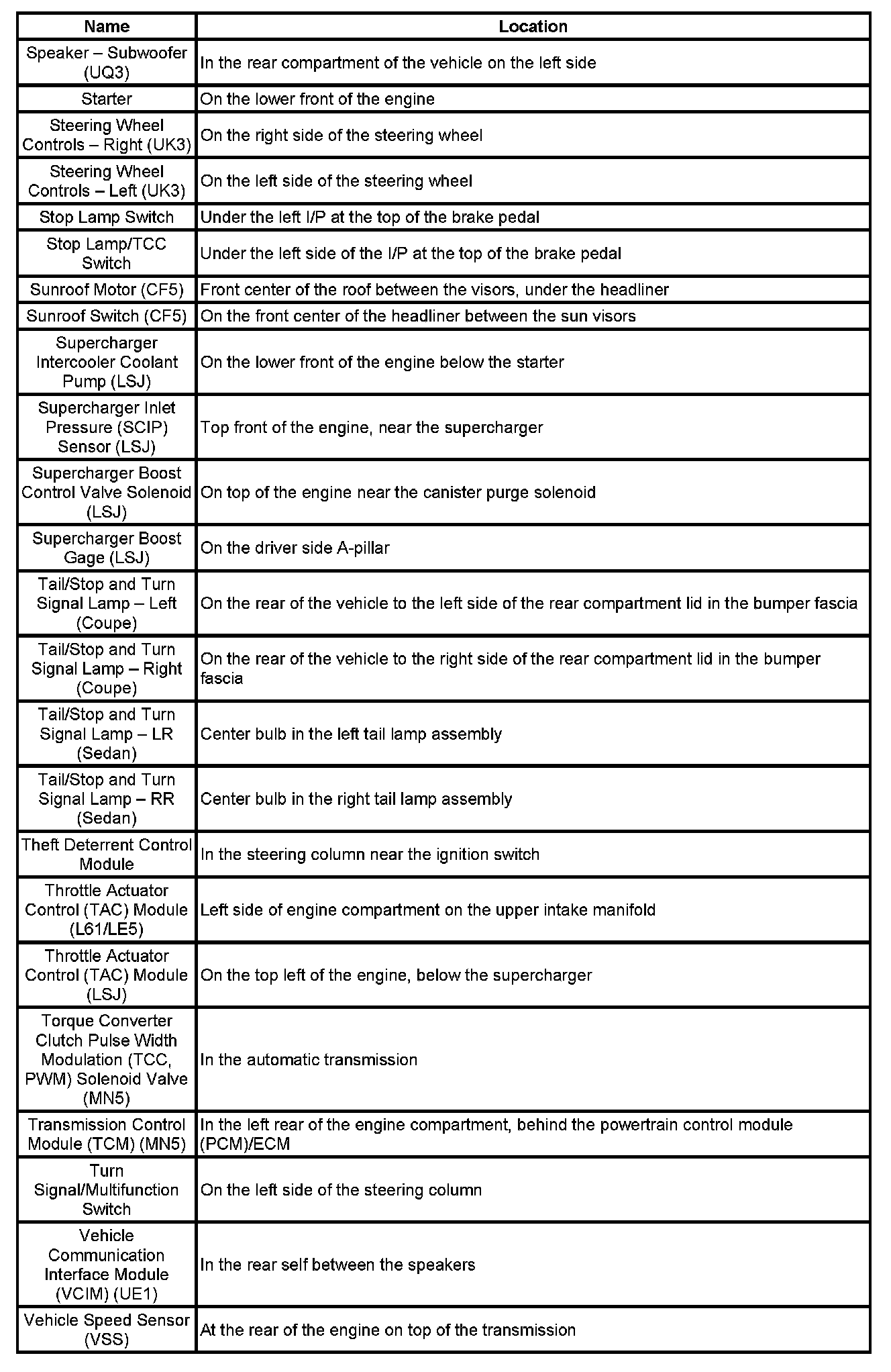

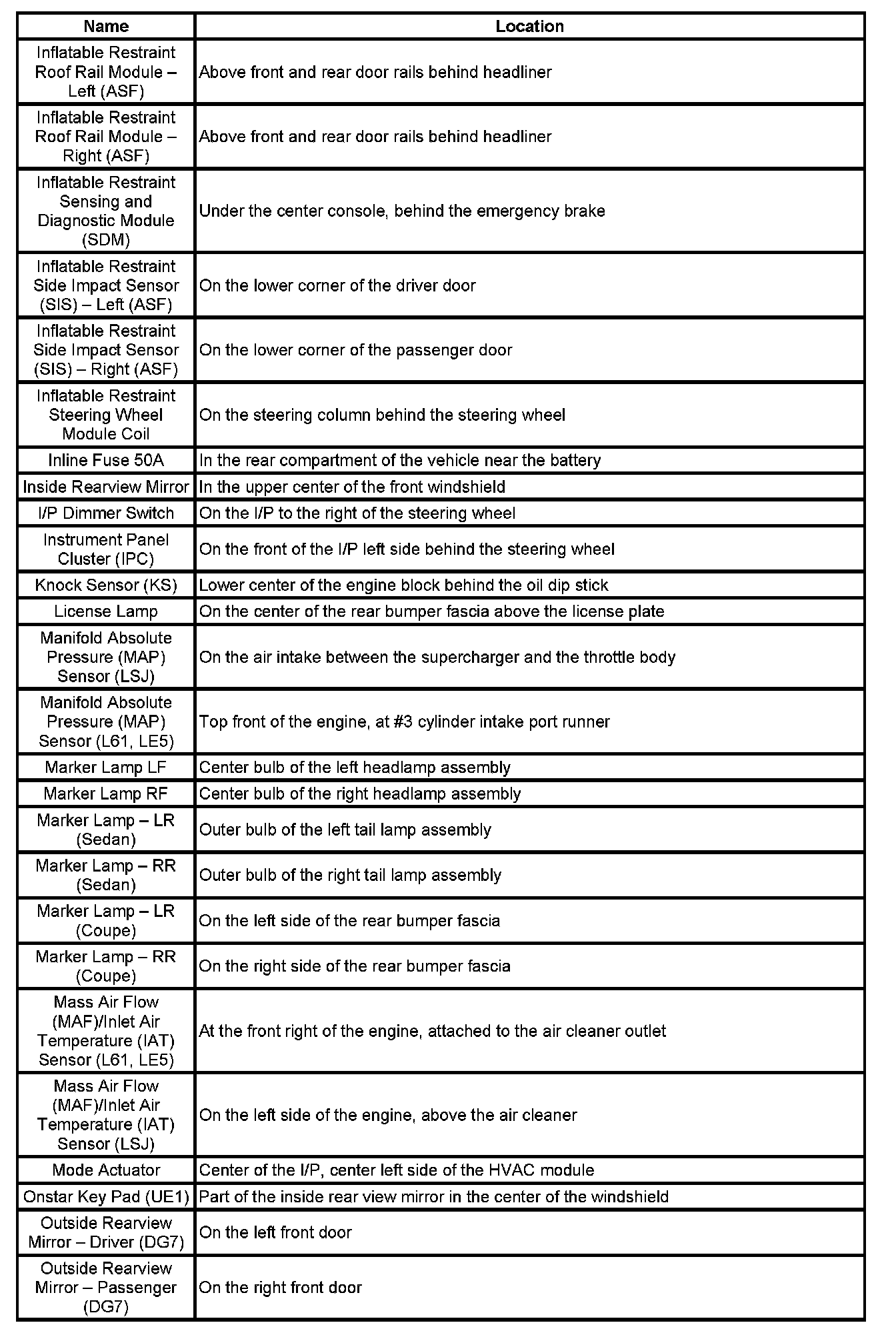

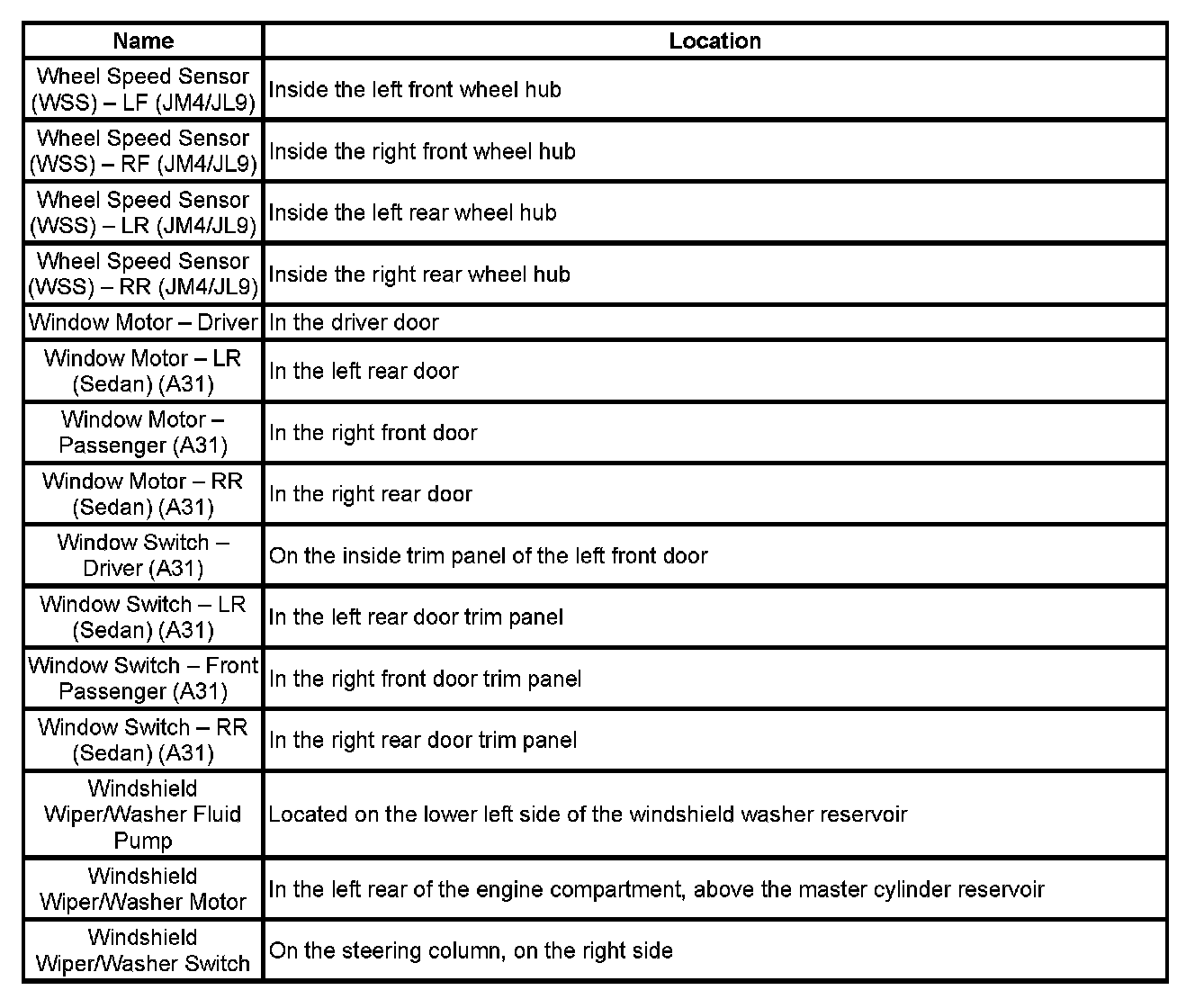

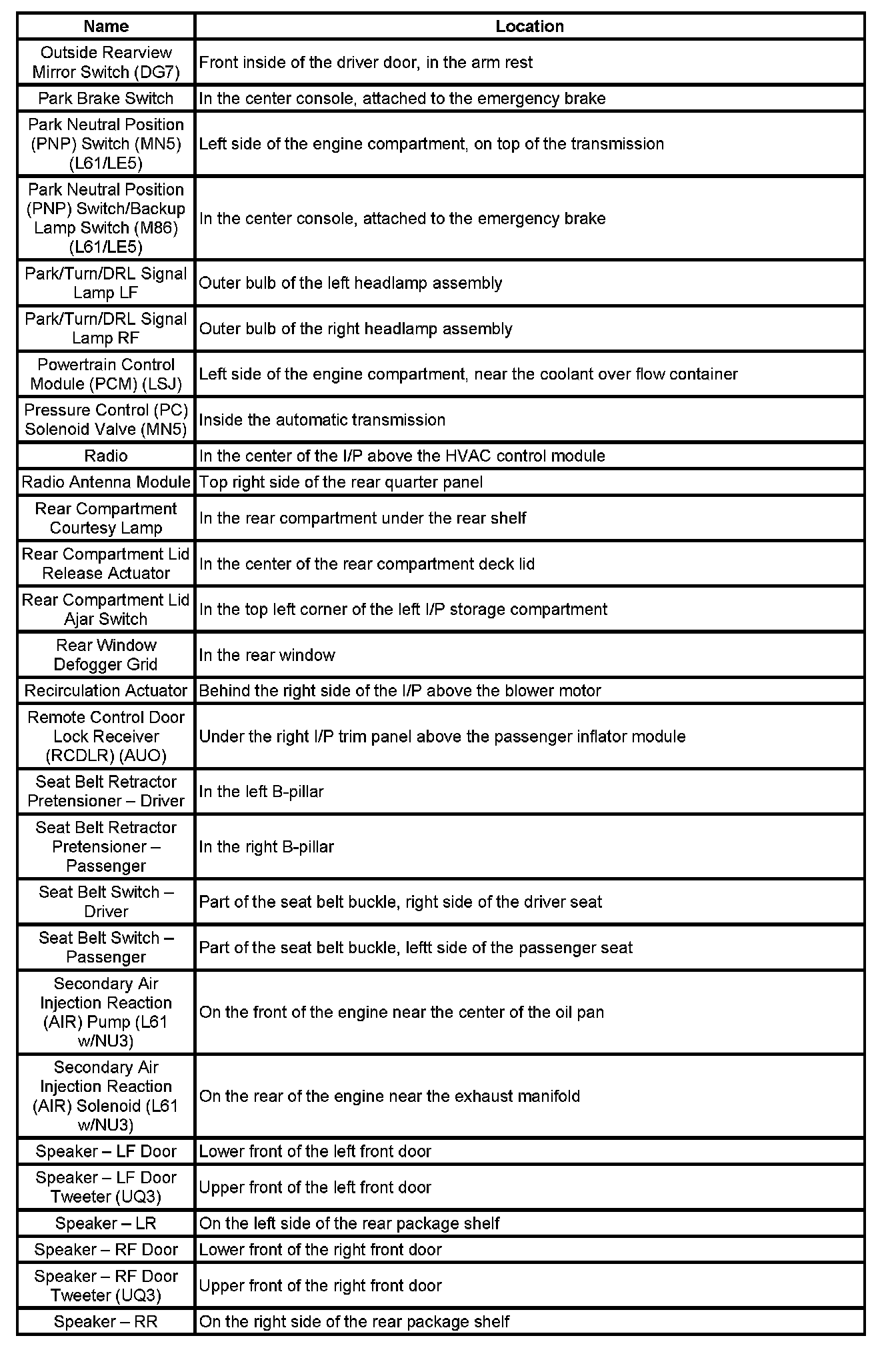

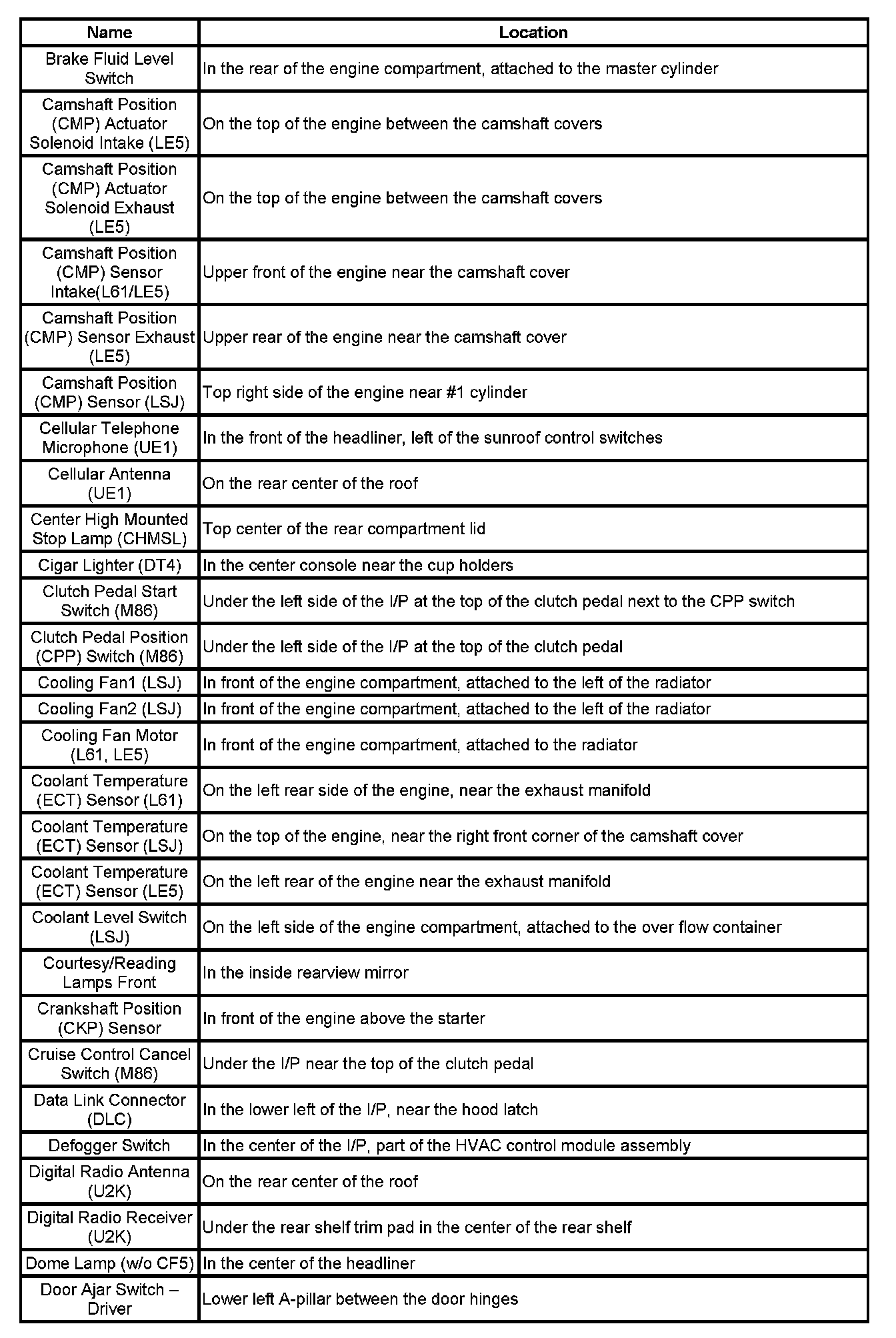

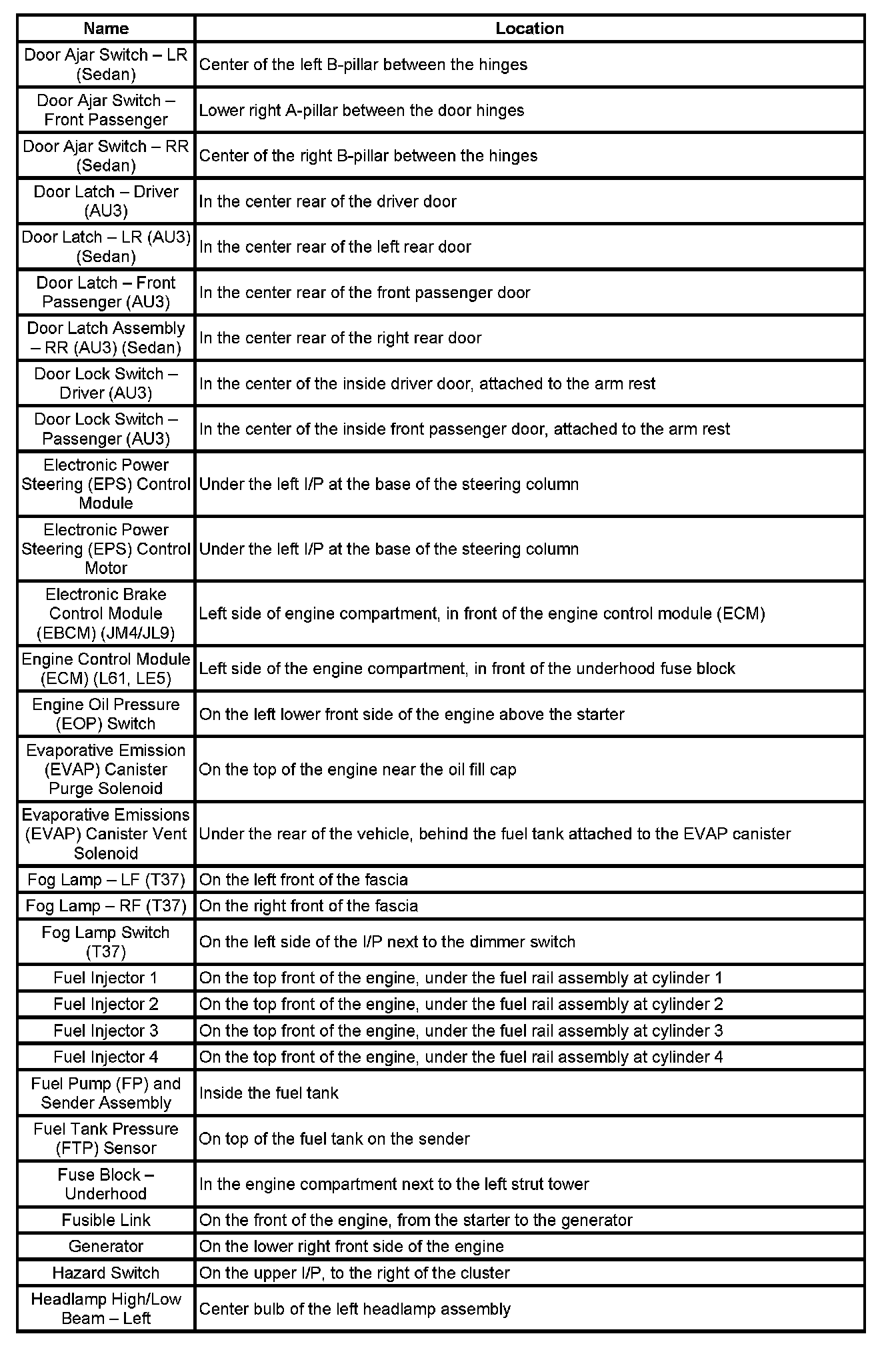

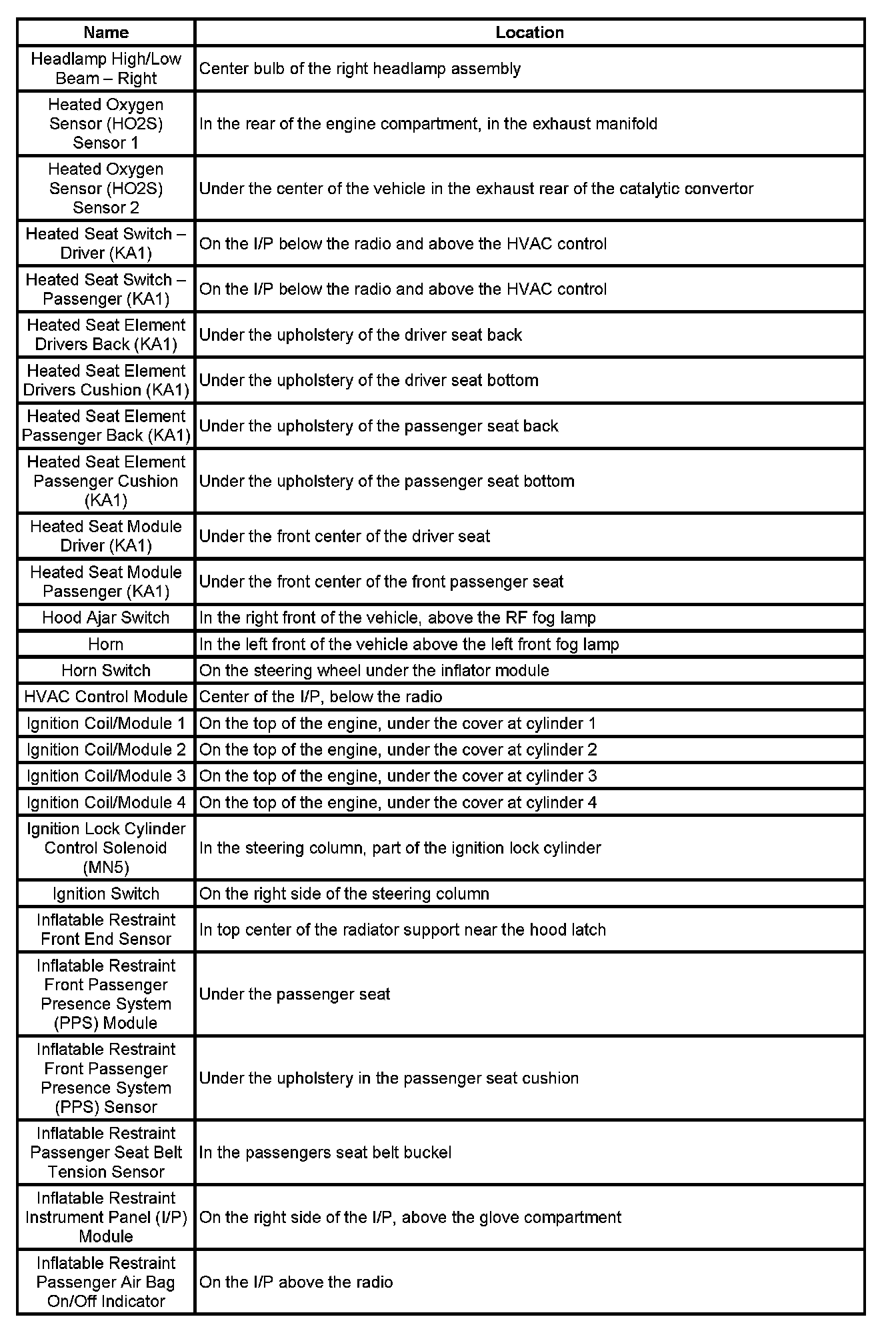

Components
1-2 Sh - Bo:
Br - Do:
Do - He:
He - In:
In - Ou:
Ou - Sp:
Sp - Ve:
Wh - Wi:
