Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Testing and Inspection >> Component Tests and General Diagnostics >> Brake Assist System Diagnosis

Brake Assist System Diagnosis

Brake Assist System Diagnosis

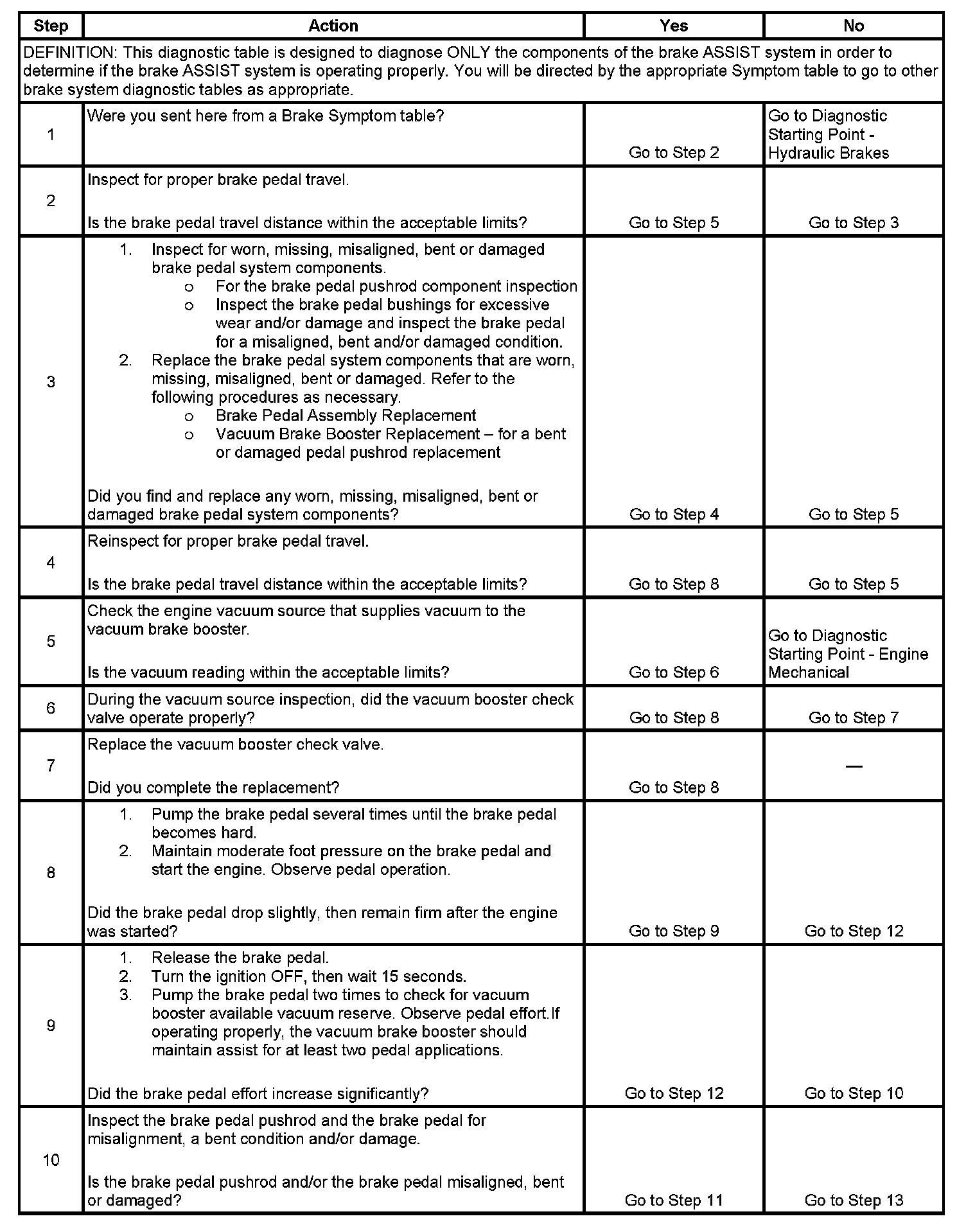

Step 1 - 10:

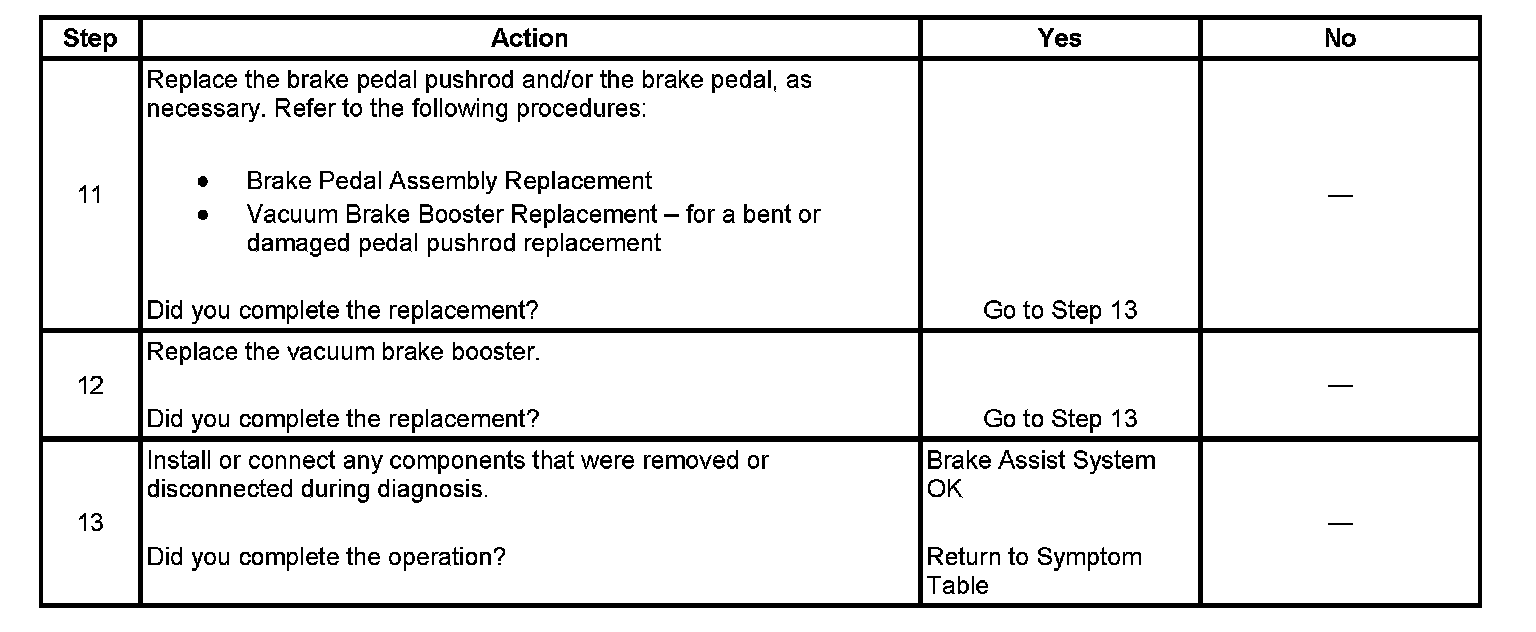

Step 11 - 13:
