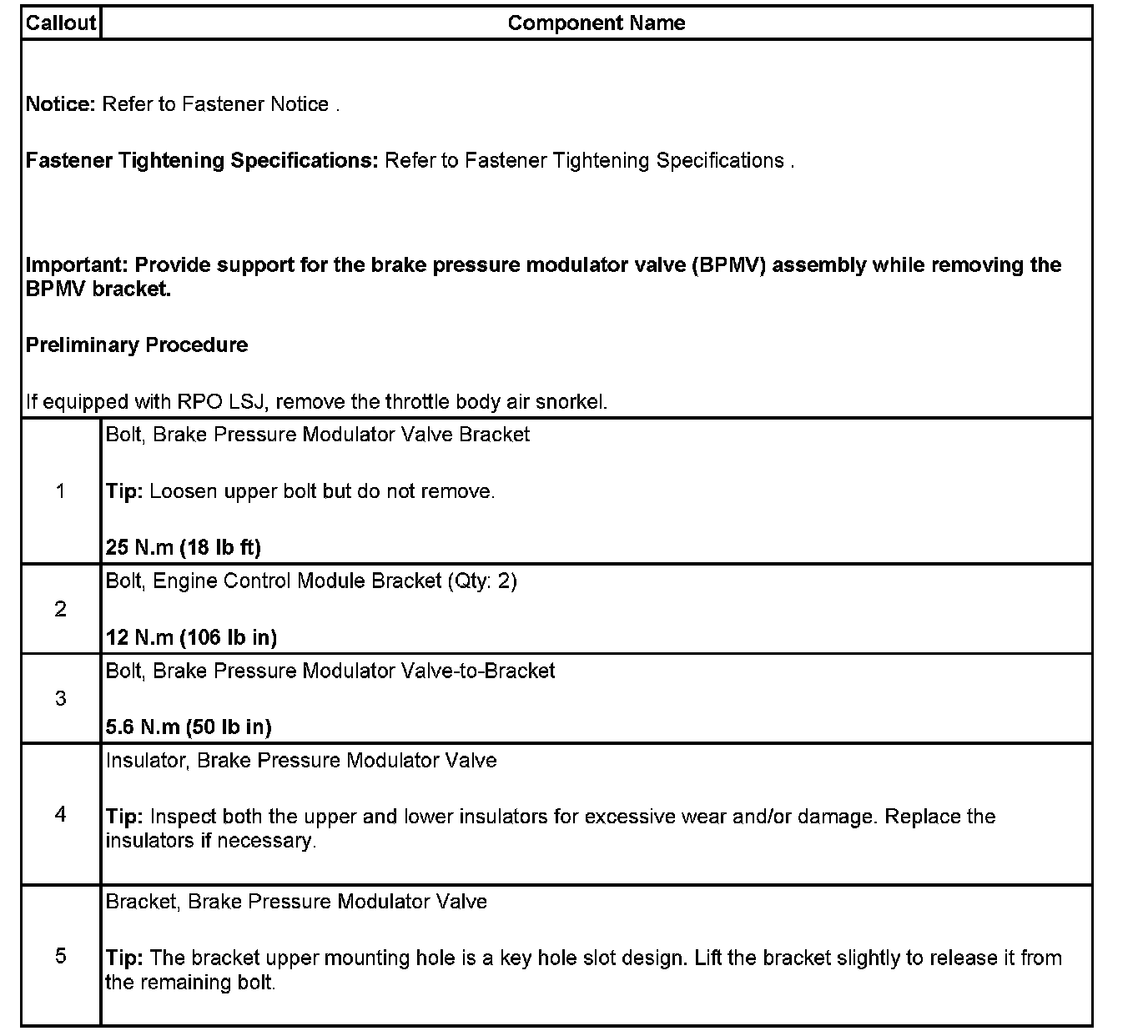

Brake Pressure Modulator Valve Bracket Replacement



Brake Pressure Modulator Valve Bracket Replacement









Preliminary ProcedureIf equipped with RPO LSJ, remove the throttle body air snorkel.
