Sunroof / Moonroof Switch: Service and Repair

SUNROOF SWITCH REPLACEMENT

REMOVAL PROCEDURE
1. Use a small, flat-bladed tool in order to disengage the clips located at the sides of the switch bezel.

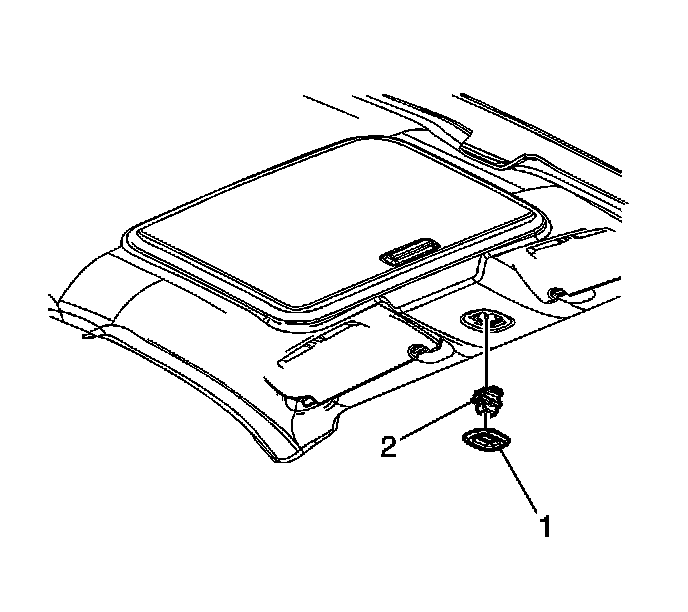

2. Rotate the switch bezel (1) down and to the left to remove it from the headliner.




3. Disconnect the electrical connector from the sunroof control switch.
4. Remove the sunroof control switch (2) from the bezel.

INSTALLATION PROCEDURE




1. Install the sunroof control switch (2) to the bezel (1).
2. Connect the electrical to the switch.
3. Rotate the sunroof control switch and bezel into the headliner and press to engage the clips.
