Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Testing and Inspection >> Heated Seat Inoperative

Heated Seat Inoperative

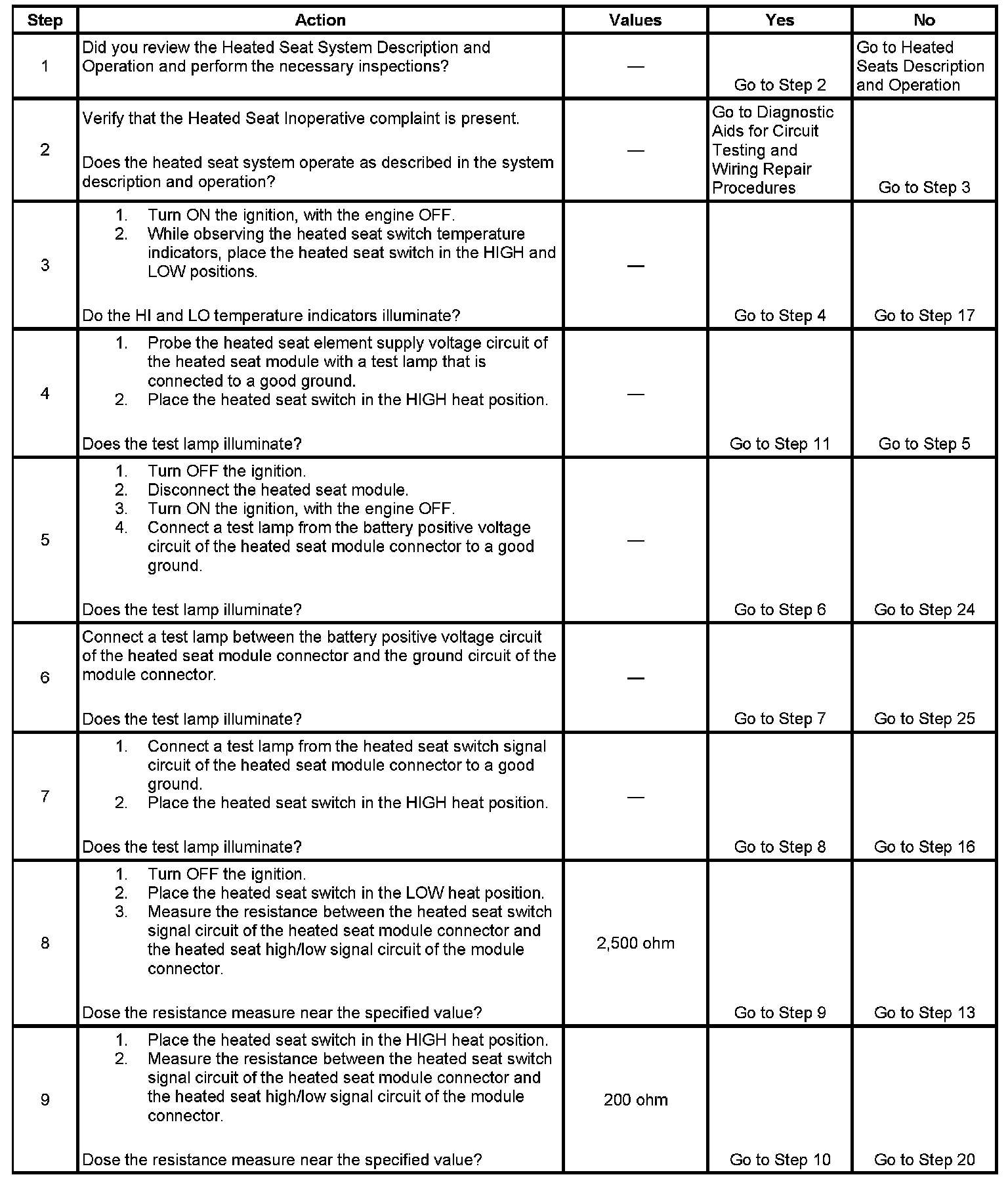

Step 1 - Step 9:

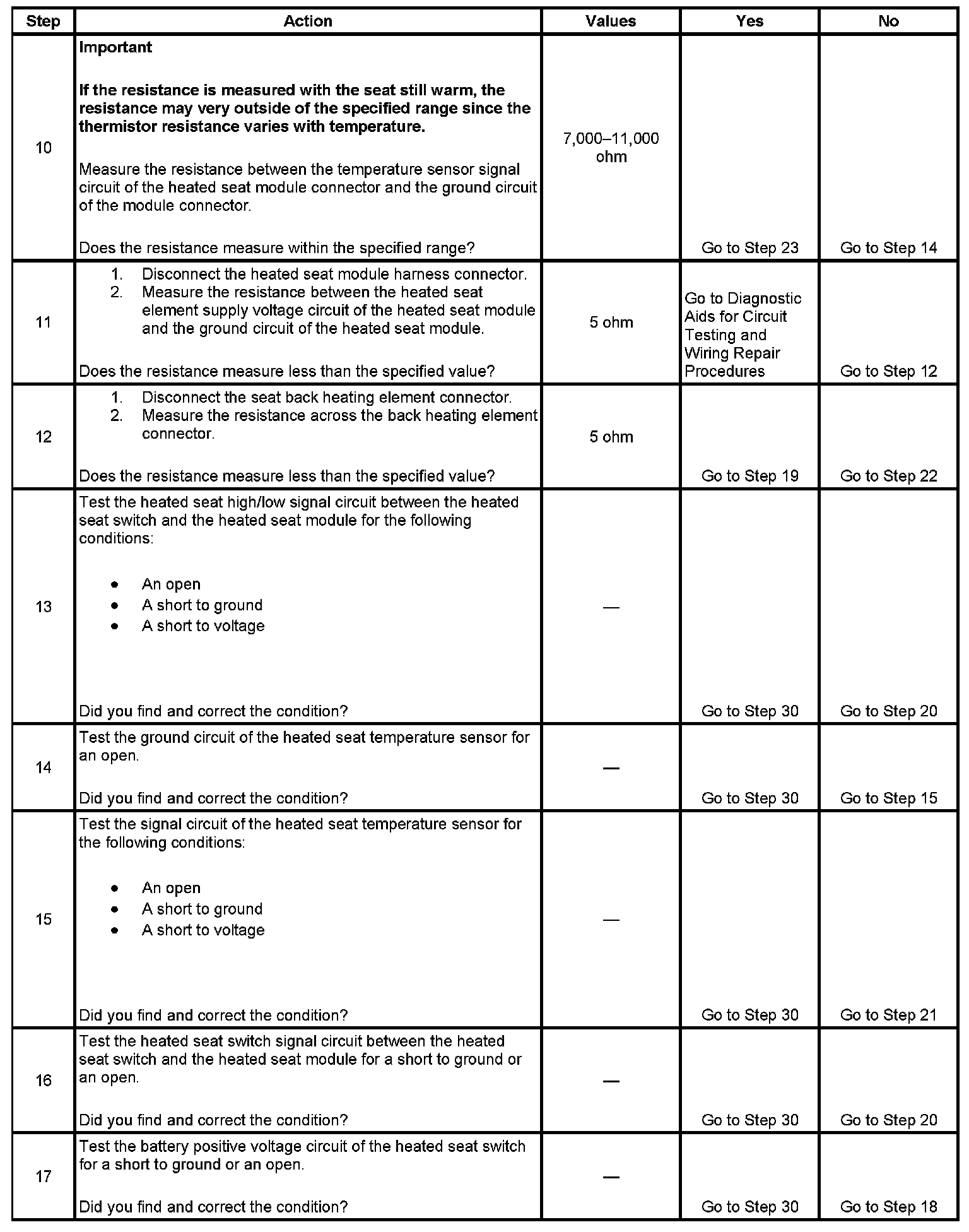

Step 10 - Step 17:

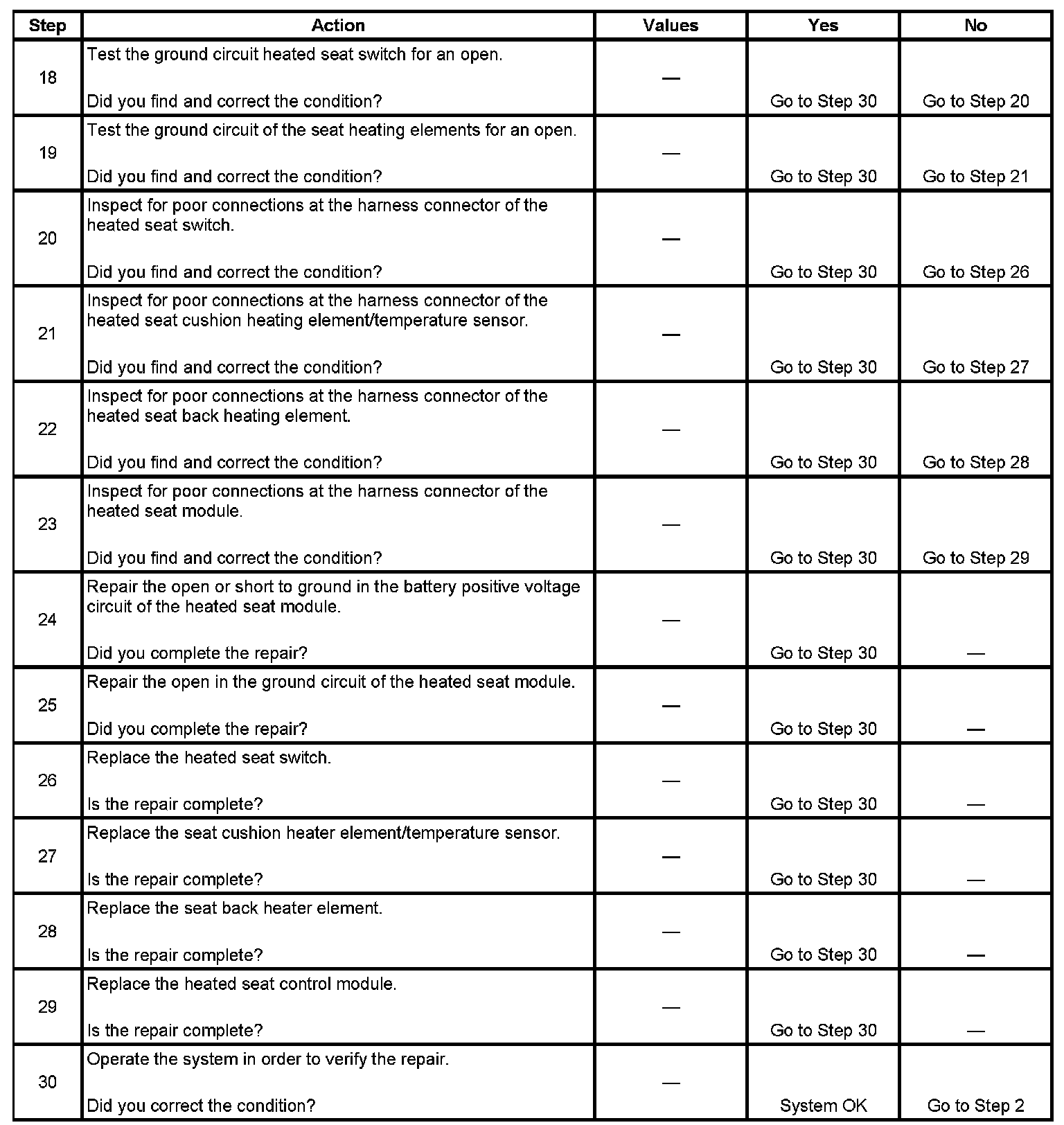

Step 18 - Step 30:
