Outside Rearview Mirror

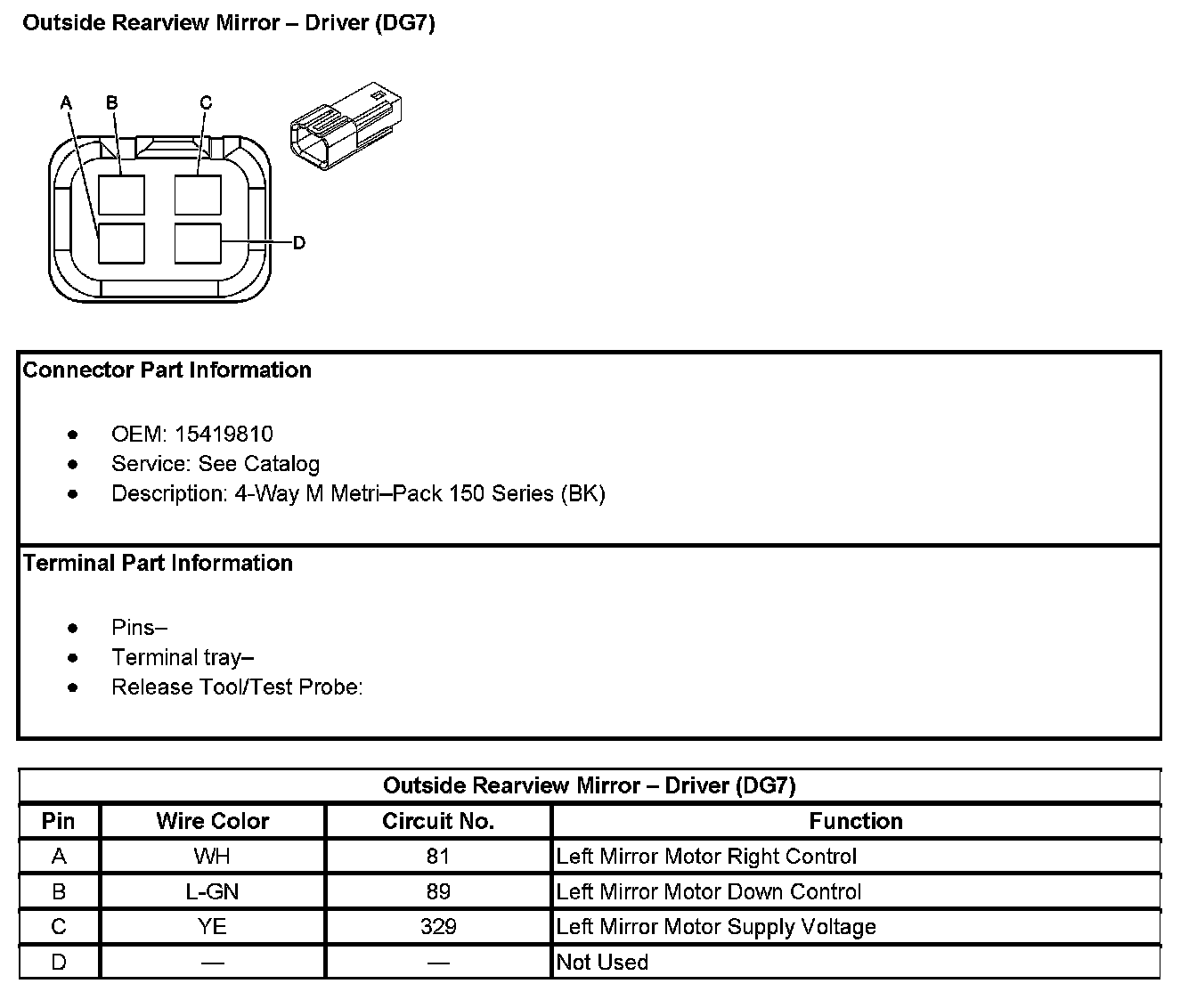

Outside Rearview Mirror - Driver (With RPO Code DG7):

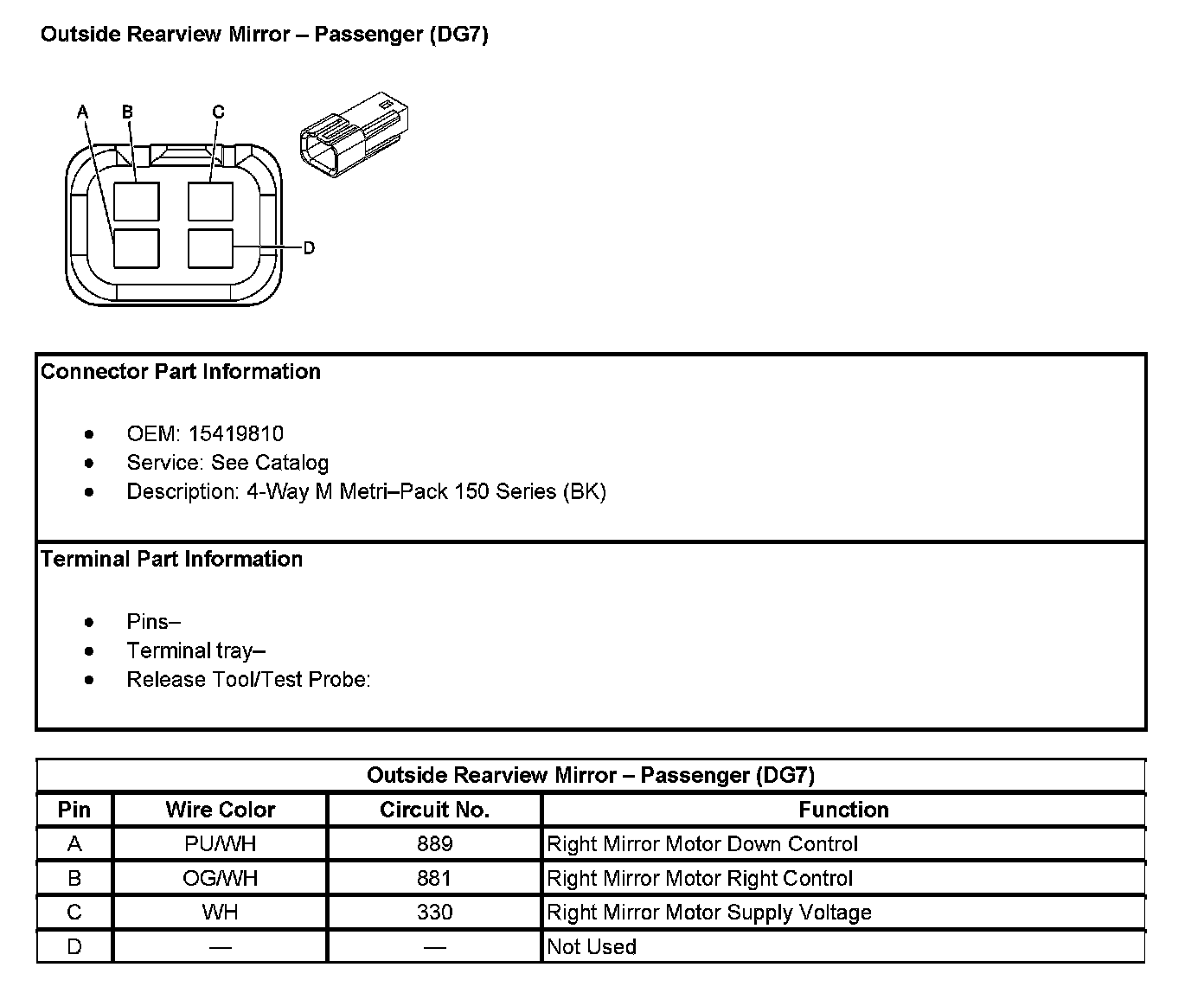

Outside Rearview Mirror - Passenger (With RPO Code DG7):
