Power Door Lock Switch: Diagrams

Door Lock Switch - Driver (With RPO Code AU3):

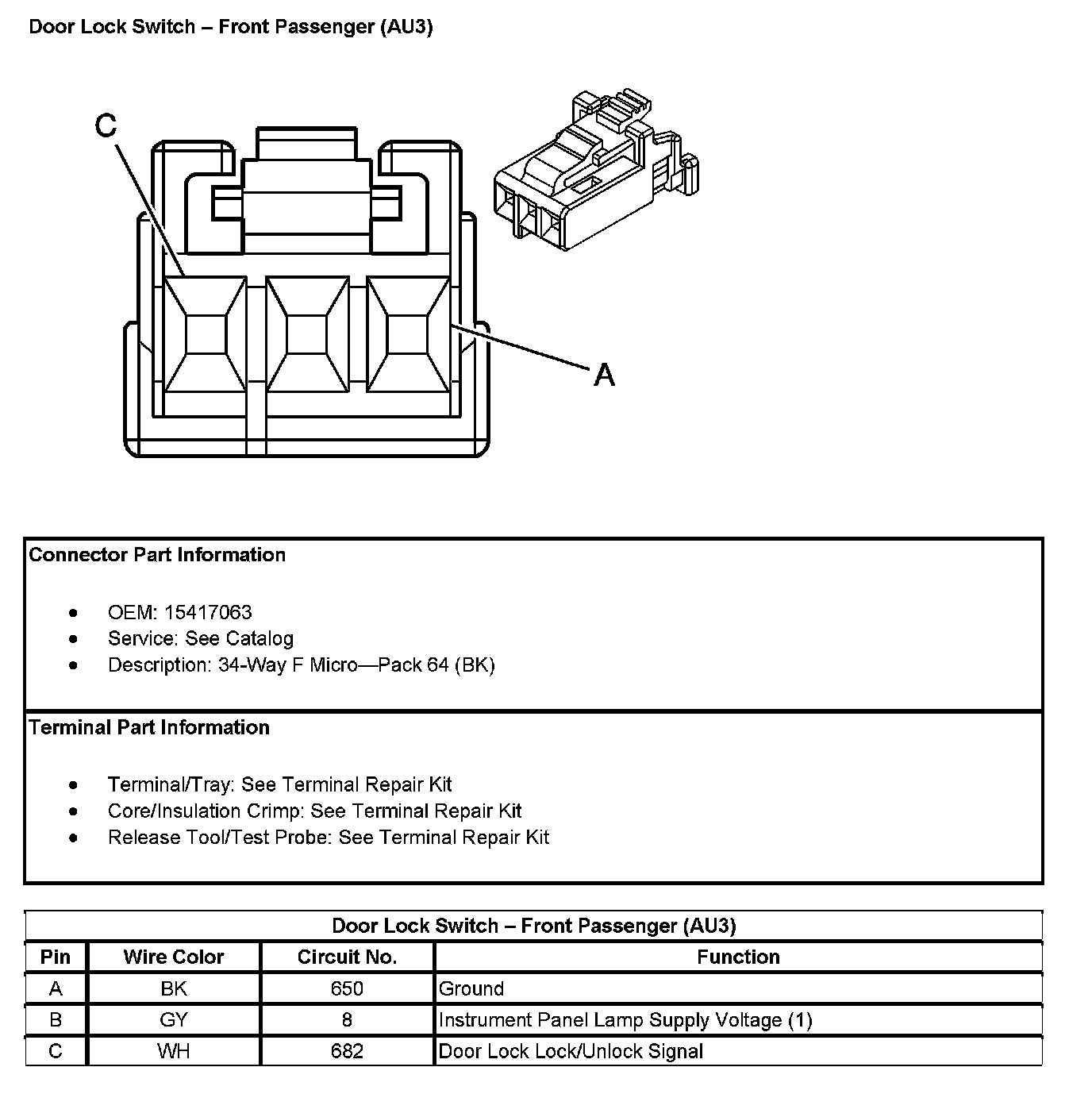

Door Lock Switch - Front Passenger (With RPO Code AU3):
