Home >> Chevrolet >> 2007 >> Cobalt L4-2.0L SC >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Removal and Replacement >> Console Front Trim Plate Replacement

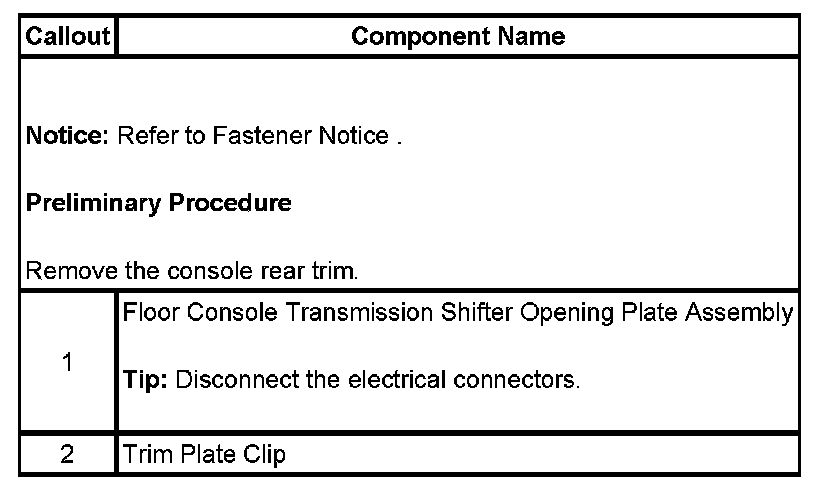

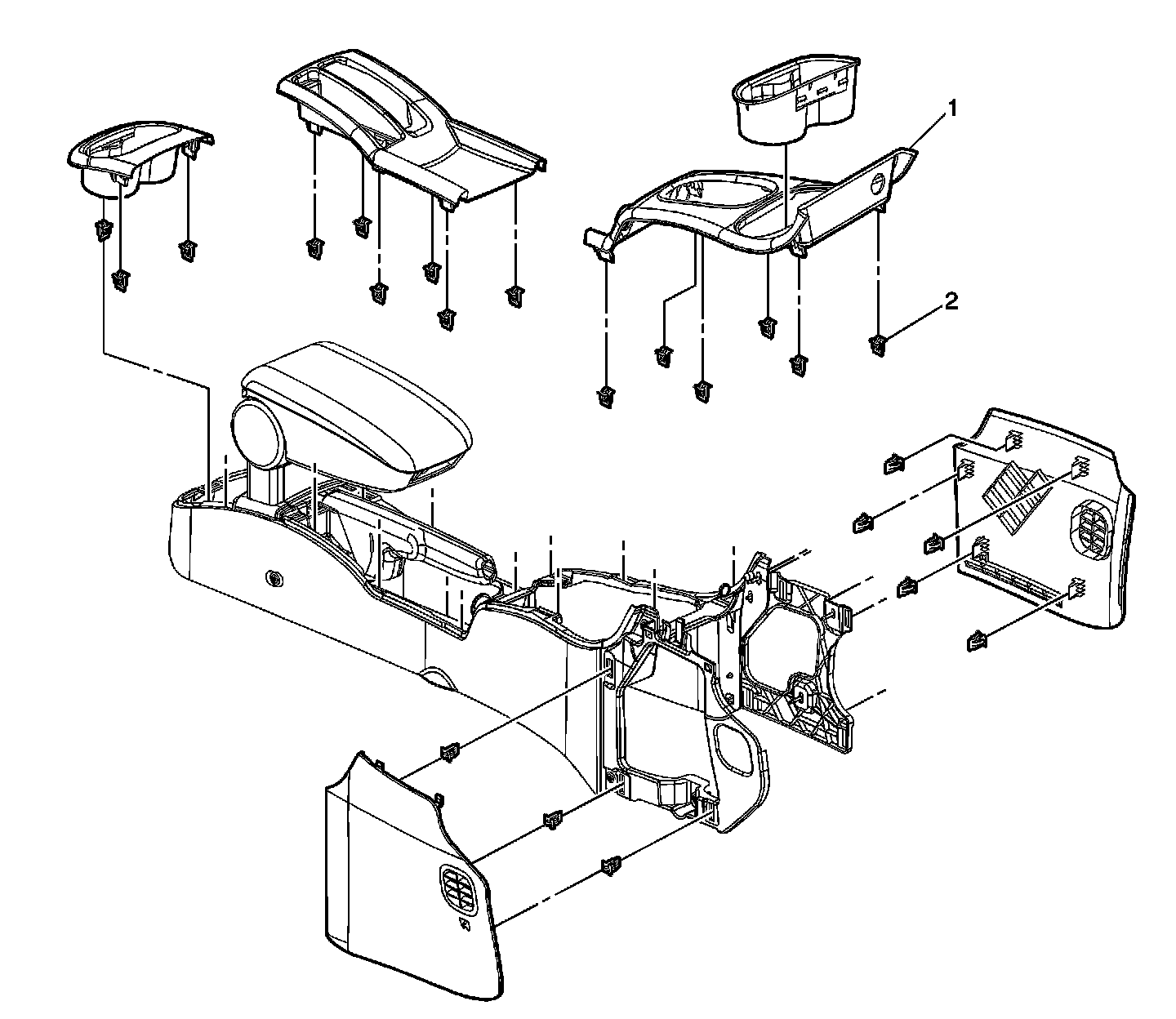

Console Front Trim Plate Replacement



Console Front Trim Plate Replacement
