P2135

DTC P2135

Circuit Description

The throttle actuator control assembly has two throttle position (TP) sensors mounted within the assembly. The powertrain control module (PCM) provides individual signal, ground, and 5-volt reference circuits to each sensor. Both sensors operate within a voltage range between 0.35-4.65 volts. When the throttle is opened from 0-100 percent, one sensor signal voltage increases while the other decreases. The signal circuit for TP sensor 1 is referenced to ground, and the signal circuit for TP sensor 2 is pulled up to 5 volts within the PCM.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P2135 Throttle Position (TP) Sensor 1-2 Correlation

Conditions for Running the DTC

* The ignition is ON.
* DTCs P0120, P0220, P0641, or P0651 are not set.
* The ignition voltage is greater than 5.23 volts.
* DTC P2135 runs continuously when the above conditions are met.

Conditions for Setting the DTC

The difference between the TP sensor 1 and TP sensor 2 exceeds a predetermined value for more than 0.4 second.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame and/or the Failure Records.
* The control module commands the TAC system to operate in the Reduced Engine Power mode.
* A message center or an indicator displays Reduced Engine Power.
* Under certain conditions the control module commands the engine OFF.

Conditions for Clearing the MIL/DTC

* The PCM will turn OFF the malfunction indicator lamp (MIL) during the third consecutive trip in which the diagnostic has run and passed.
* The history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
* The DTC can be cleared by using a scan tool.

Diagnostic Aids

If the DTC is determined to be intermittent, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

Test Description

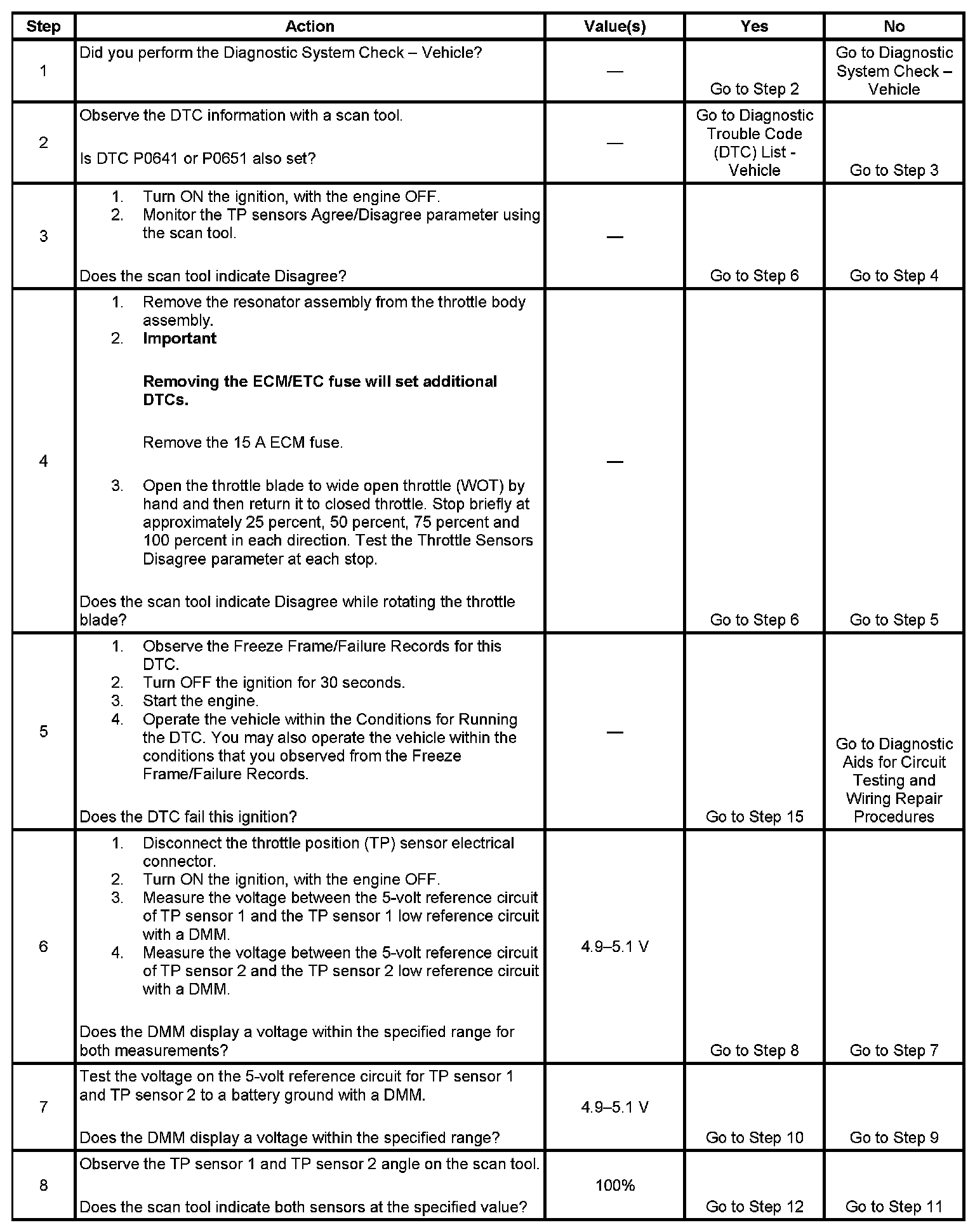

Step 1 - Step 8:

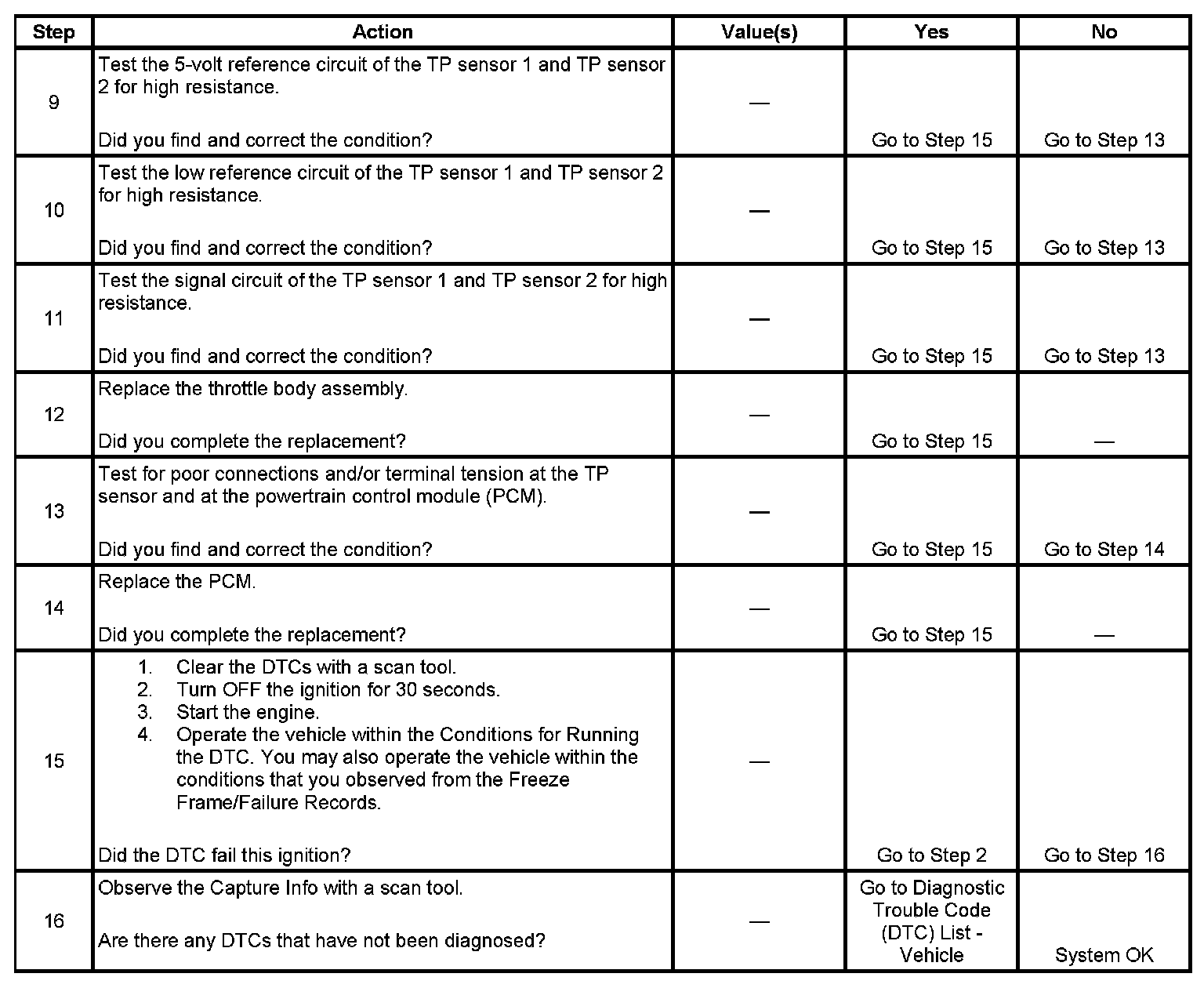

Step 9 - Step 16:

The numbers below refer to the step numbers on the diagnostic table.
6. This step tests the integrity of the 5-volt reference and ground circuits of the TP sensors.
7. This step determines if the 5-volt reference circuit or the sensor ground circuit is the cause of the DTC.
8. If the scan tool displays 100 percent for the TP sensor 1 and the TP sensor 2 angle, this indicates that the TP sensor signal circuits are not the cause of the DTC.
9. This step tests for excessive resistance in the TP sensor 5-volt reference circuit between the TP sensor harness connector and the PCM harness connector.
10. This step tests for excessive resistance in the TP sensor ground circuit between the TP sensor harness connector and the PCM harness connector.
11. This step tests for the TP sensor signal circuits for being shorted to another circuit in the PCM wiring harness between the PCM and the TP sensor wiring harness.
16. When the PCM detects a problem within the throttle control system, more than one related DTC may set. This is due to the many redundant tests run continuously on this system. Locating and repairing one individual problem may correct more than one DTC. Keep this in mind when reviewing captured DTC info.
