P0650



DTC P0650

Circuit Description

The malfunction indicator lamp (MIL) is located on the instrument panel cluster (IPC). The MIL informs the driver that an emission system fault has occurred and that the engine control system requires service. The control module monitors the MIL control circuit for conditions that are incorrect for the commanded state of the MIL. If the control module detects an improper voltage on the MIL control circuit, DTC P0650 will set.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0650 Malfunction Indicator Lamp (MIL) Control Circuit

Conditions for Running the DTC

* The engine is running.
* DTC P0650 runs continuously when the above condition is met.

Conditions for Setting the DTC

The control module detects that the commanded state of the MIL driver and the actual state of the control circuit do not match for 12 seconds.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame/Failure Records.

Conditions for Clearing the MIL/DTC

* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.

Test Description

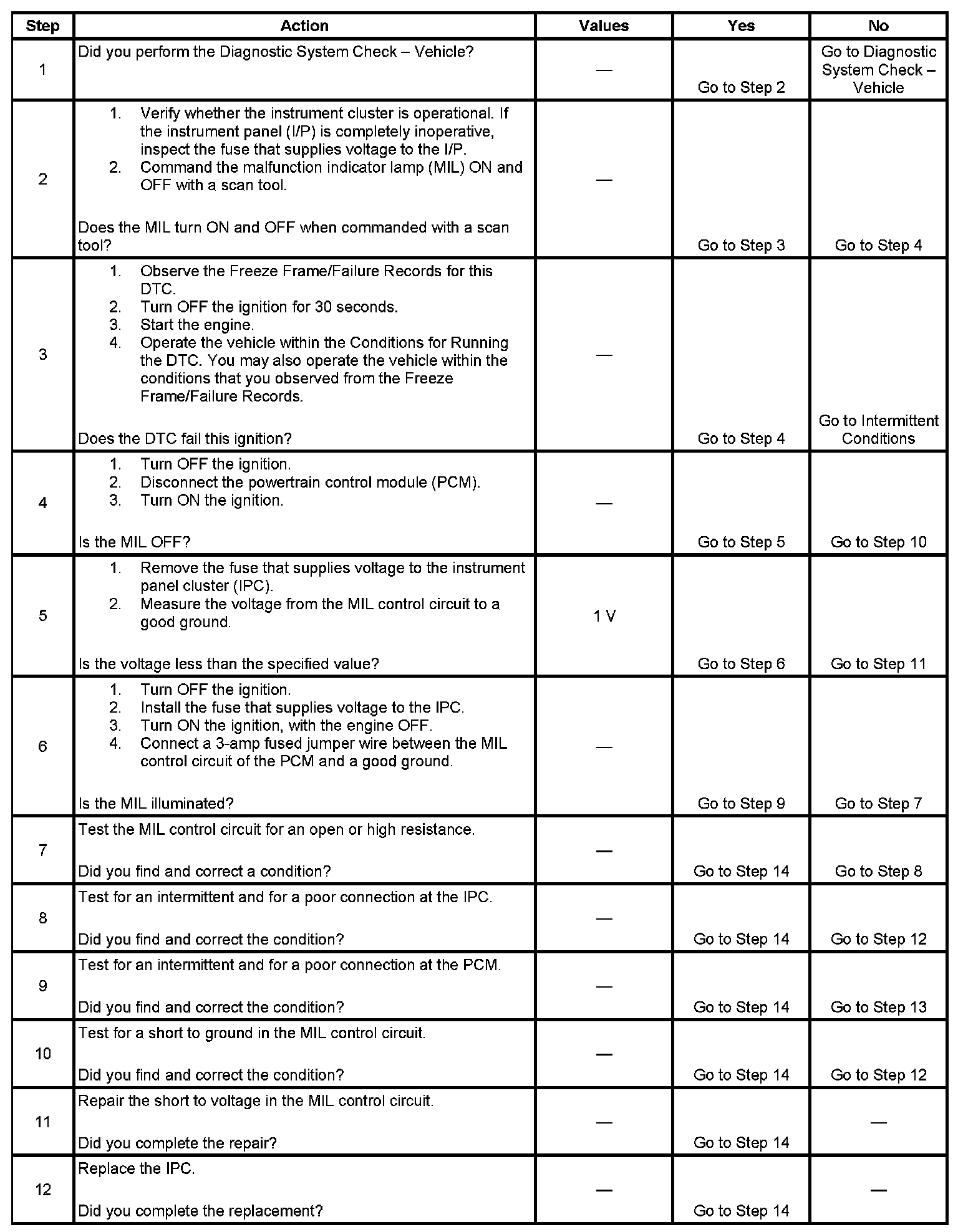

Step 1 - Step 12:

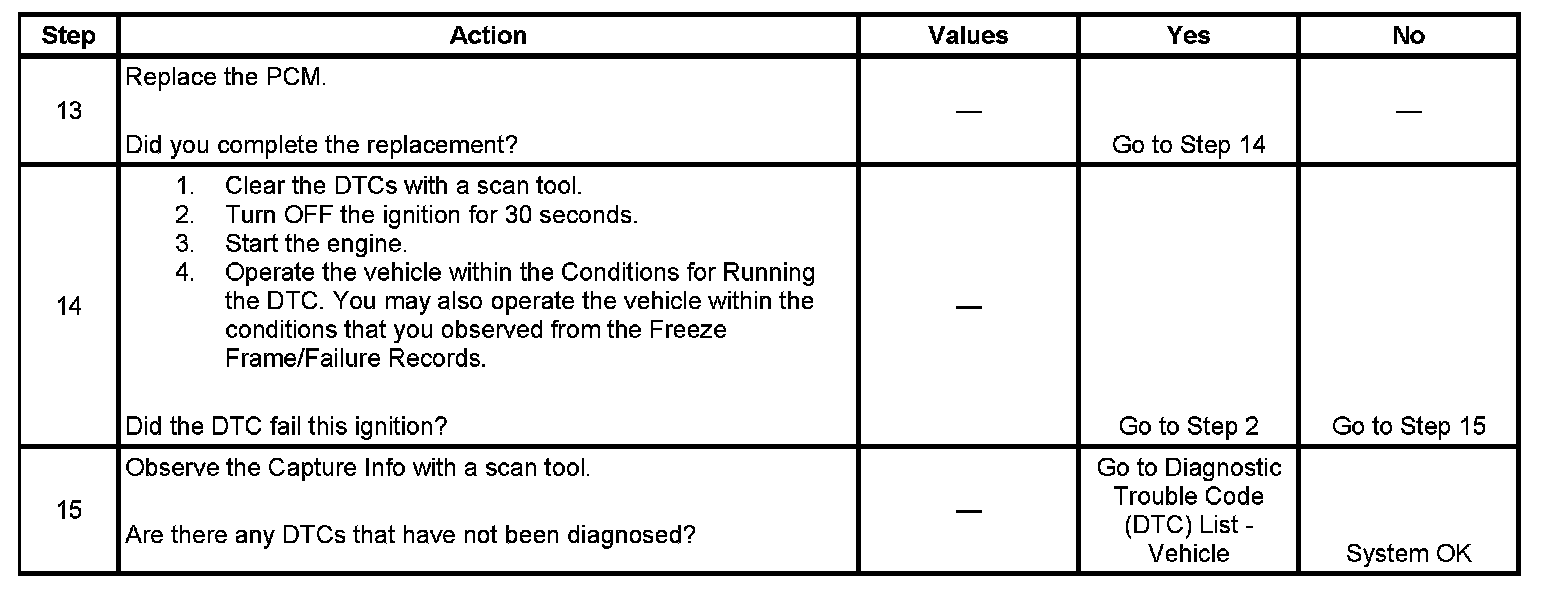

Step 13 - Step 15:




The numbers below refer to the step numbers on the diagnostic table.
4. This step tests for a short to ground in the MIL control circuit. With the engine control module (ECM) disconnected and the ignition ON, the MIL should be OFF.
5. This step tests for a short to voltage on the MIL control circuit. With the fuse removed, there should be no voltage on the MIL control circuit.
