P0452

DTC P0452

Circuit Description

The fuel tank pressure (FTP) sensor measures the difference between the air pressure or vacuum in the evaporative emission (EVAP) system, and the outside air pressure. The control module supplies a 5-volt reference and a low reference circuit to the FTP sensor. The FTP sensor signal circuit voltage varies depending on EVAP system pressure or vacuum. If the FTP sensor signal voltage goes below a calibrated value, this DTC sets.

The following table illustrates the relationship between the FTP sensor signal voltage and the EVAP system pressure/vacuum.






DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0452 Fuel Tank Pressure (FTP) Sensor Circuit Low Voltage

Conditions for Running the DTC

* The ignition is ON.
* DTC P0452 runs continuously after a 1-second delay.

Conditions for Setting the DTC

* The FTP voltage is less than 0.1 volt.
* All conditions present for more than 5 seconds.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

Conditions for Clearing the MIL/DTC

* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.

Test Description

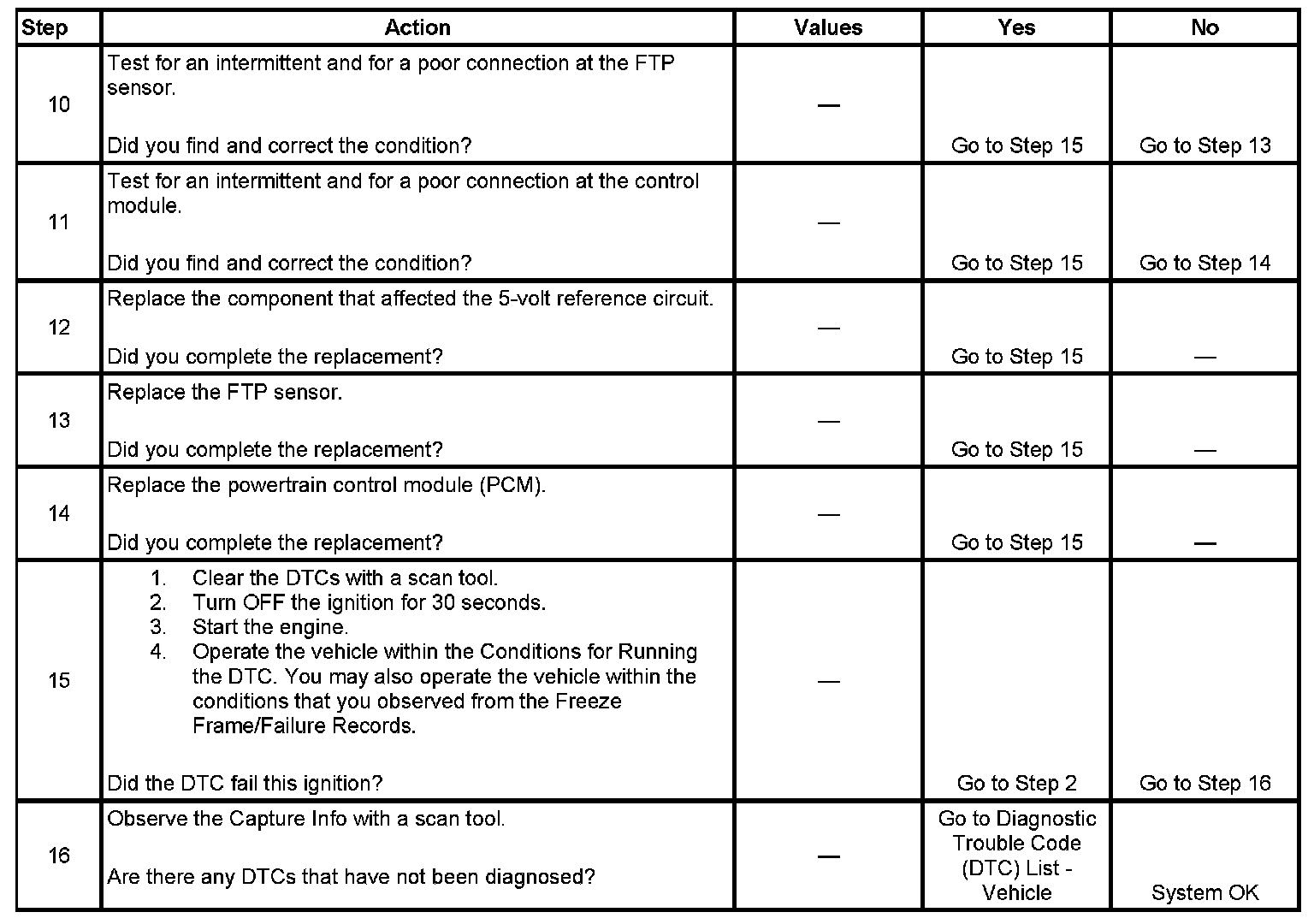

Step 10 - Step 16:

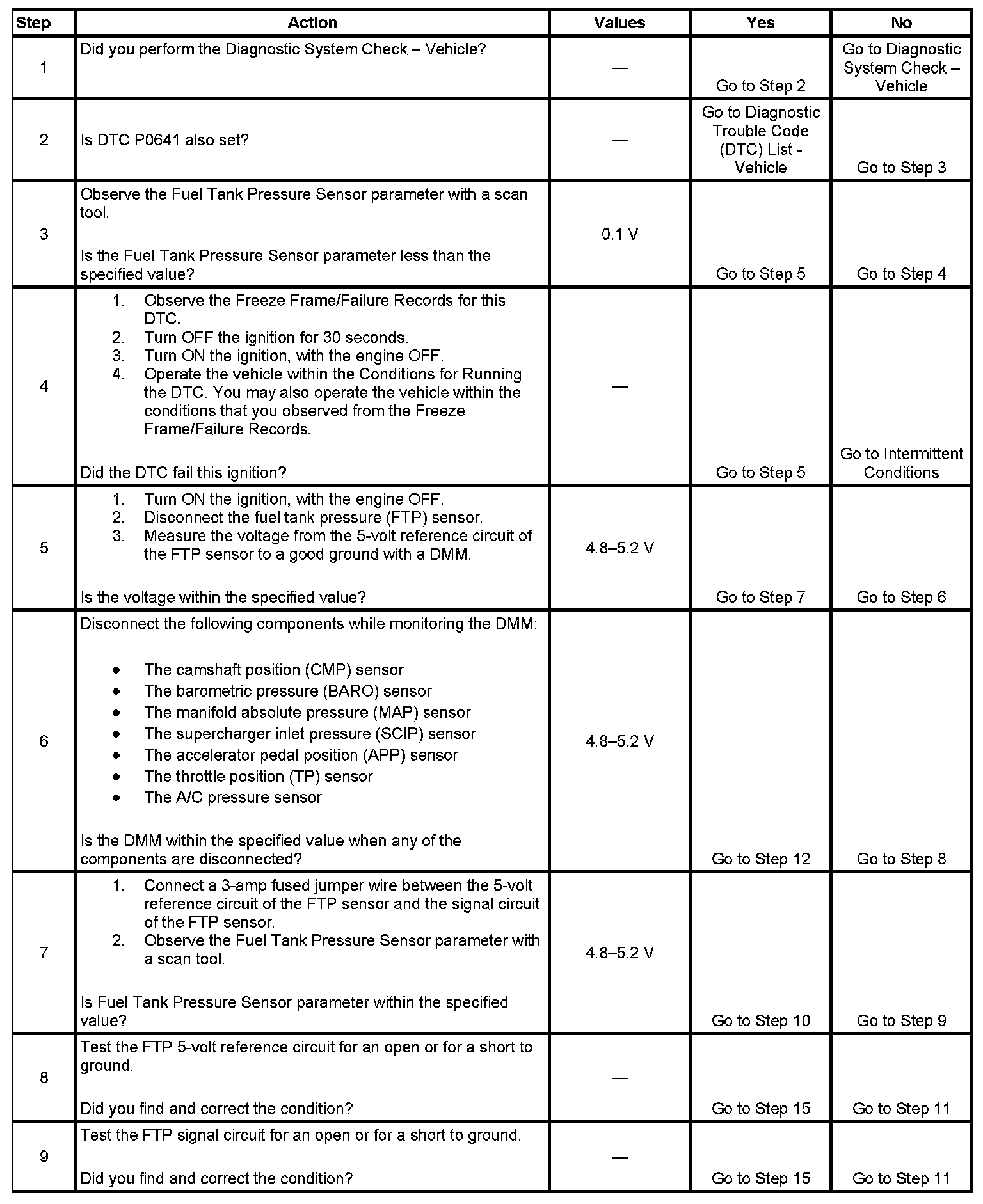

The numbers below refer to the step numbers on the diagnostic table.
3. This step verifies that the condition is present.
5. This step tests the 5-volt reference of the FTP sensor.
6. This step tests if another component is causing the 5-volt reference circuit condition.
7. If the scan tool displays 5 volts, the FTP sensor signal circuit, the FTP sensor 5-volt reference circuit, and the control module are OK.
