P0336



DTC P0336

Circuit Description

The crankshaft position (CKP) sensor is a variable reluctance sensor. The CKP sensor indicates the crankshaft speed and position. The CKP sensor produces an AC voltage of different amplitude and frequency. The frequency depends on the velocity of the crankshaft. The AC voltage output depends on the crankshaft position and the battery voltage. The CKP sensor works in conjunction with a 58X reluctor wheel attached to the crankshaft. The CKP sensor is also used to detect misfire and tachometer display. The CKP sensor connects to the powertrain control module (PCM) through the following circuits:

* The CKP sensor signal circuit
* The low reference circuit

If the PCM detects an excessive number of resyncs from the CKP sensor, DTC P0336 sets.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0336 Crankshaft Position (CKP) Sensor Performance

Conditions for Running the DTC

* The engine is running.
* The engine speed is greater than 450 RPM.
* DTC P0336 runs continuously when the above condition is met.

Conditions for Setting the DTC

Automatic Transmission

The PCM detects 5 CKP resyncs within 10 seconds.

Manual Transmission

The PCM detects 15 CKP resyncs within 20 seconds.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

Conditions for Clearing the MIL/DTC

* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.

Test

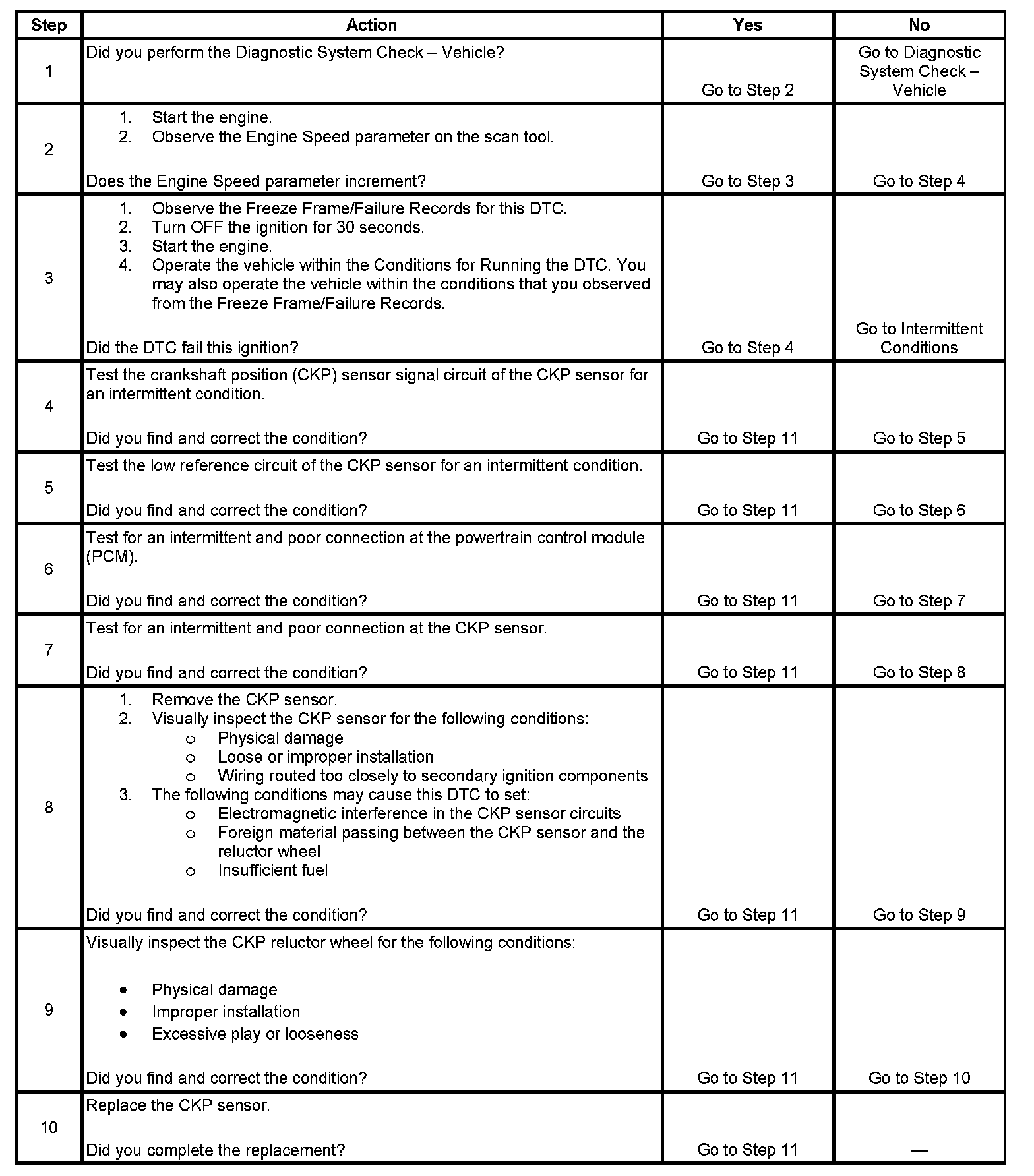

Step 1 - Step 7:

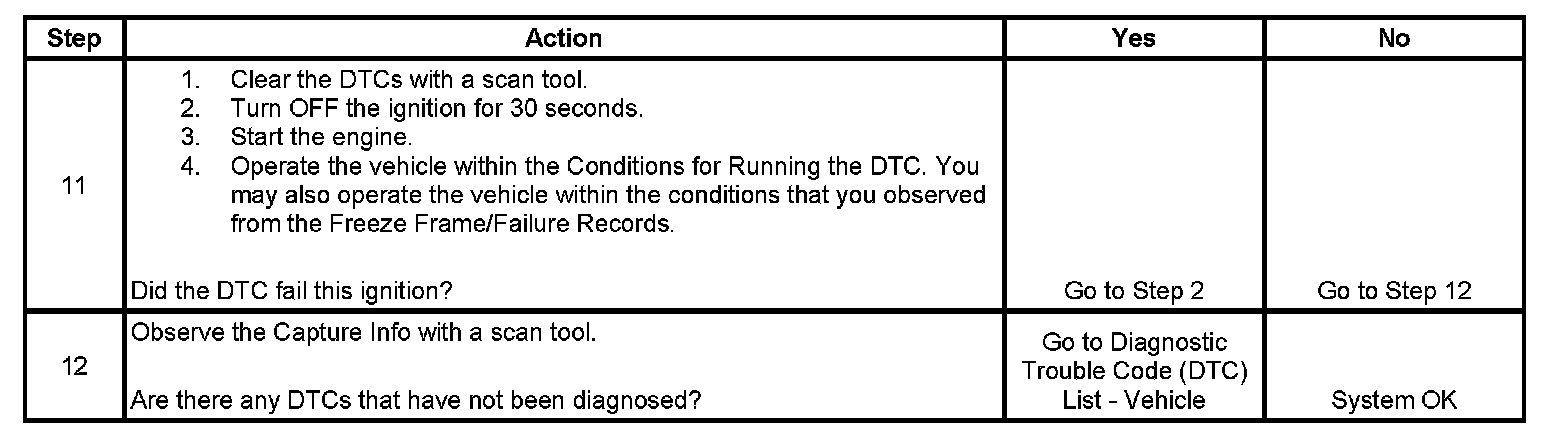

Step 11 - Step 12:
