P0327
DTC P0327
Circuit Description
The knock sensor (KS) system enables the powertrain control module (PCM) to control the ignition timing for the best possible performance while protecting the engine from potentially damaging levels of detonation. The KS is located on the intake side of the engine block. The KS produces an AC voltage signal that varies depending on the vibration level during engine operation. The PCM adjusts the spark timing based on the amplitude and the frequency of the KS signal. The PCM receives the KS signal through a signal circuit. The KS ground is supplied by the PCM through a low reference circuit. The PCM learns a minimum KS noise level at idle and uses calibrated values for the rest of the RPM range. The PCM should monitor a normal KS signal within the noise channel. If the PCM detects the KS signal outside of the noise channel, or the KS signal is not present, DTC P0327 will set.
DTC Descriptor
This diagnostic supports the following DTC:
DTC P0327 Knock Sensor (KS) Circuit Low Voltage
Conditions for Running the DTC
* The engine speed is more than 1,800 RPM.
* DTC P0327 runs continuously when the above conditions are met.
Conditions for Setting the DTC
The maximum minus the minimum KS voltage is less than 0.06 volts for 8 seconds.
Action Taken When the DTC Sets
* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
Conditions for Clearing the MIL/DTC
* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.
Diagnostic Aids
* Inspect the KS for physical damage. A KS that is dropped or damaged may cause a DTC to set.
* Inspect the KS for proper installation. A KS that is loose or over torqued may cause a DTC to set. The KS should be free of thread sealant. The KS mounting surface should be free of burrs, casting flash, and foreign material.
* The KS must be clear of hoses, brackets, and engine electrical wiring.
* For an intermittent condition, refer to Intermittent Conditions. Intermittent Conditions

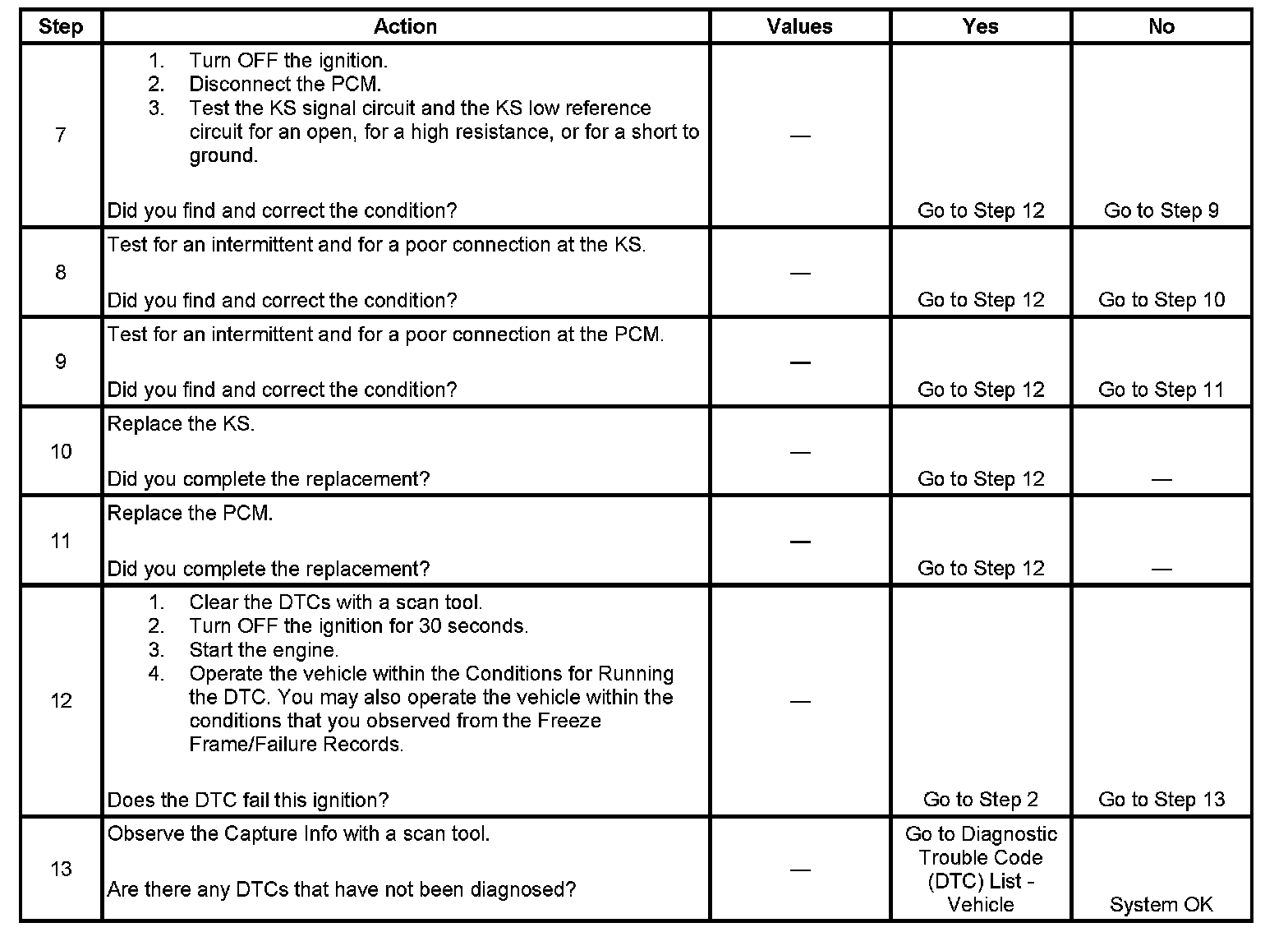

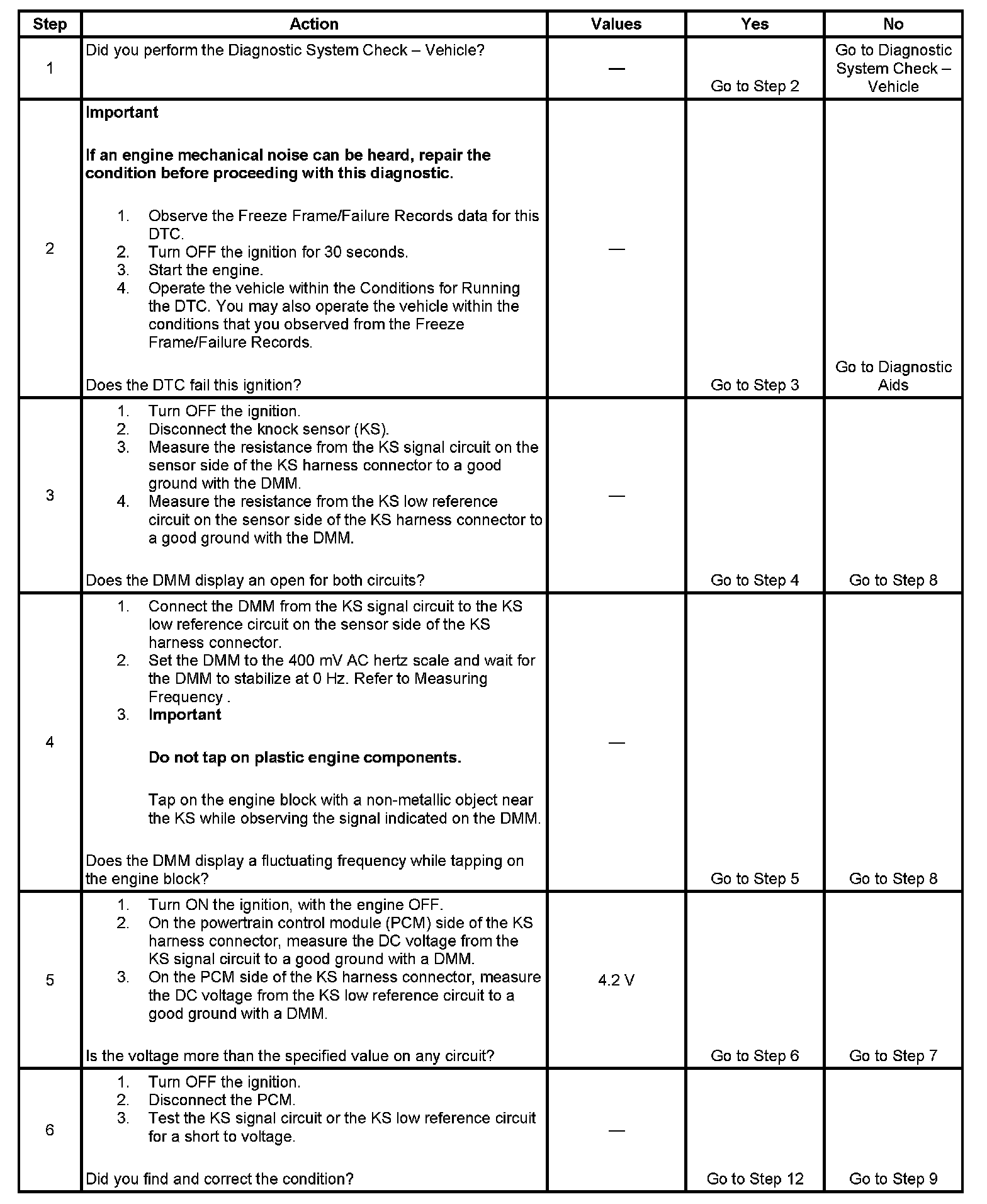

Test
