P023A
DTC P023A
Circuit Description
The supercharger intercooler relay is a normally open relay. The relay armature is held in the open position by spring tension. The ignition 1 voltage is supplied directly to the relay coil and to the armature contact when the ignition is ON, or the engine is running. The powertrain control module (PCM) supplies the ground path to the relay coil control circuit via an internal integrated circuit called an output driver module (ODM). When the engine is running, the PCM commands the relay ON, and the relay coil creates an electromagnetic field. This electromagnetic field overcomes the spring tension and pulls the armature contact into the stationary contact of the relay load circuit. The closing of the relay contacts allow current to flow from the battery to the supercharger intercooler pump. When the ignition switch is turned to the OFF position, power is interrupted to the output driver module in the PCM and the relay electromagnetic field collapses. This allows the spring tension to separate the relay armature contact from the relay load circuit contact, which interrupts current flow to the supercharger intercooler pump.
If the PCM detects an improper voltage on the supercharger intercooler pump relay control circuit for more than 30 seconds, DTC P023A sets.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P023A Charge Air Cooler (CAC) Coolant Pump Relay Control Circuit
Conditions for Running the DTC
* The ignition is ON, or the engine is running.
* The Ignition 1 Voltage parameter is between 11-18 volts.
* DTC P023A runs continuously when the above conditions are met.
Conditions for Setting the DTC
The PCM detects an improper voltage on the supercharger intercooler pump relay control circuit for more than 30 seconds.
Action Taken When the DTC Sets
* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
Conditions for Clearing the MIL/DTC
* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.

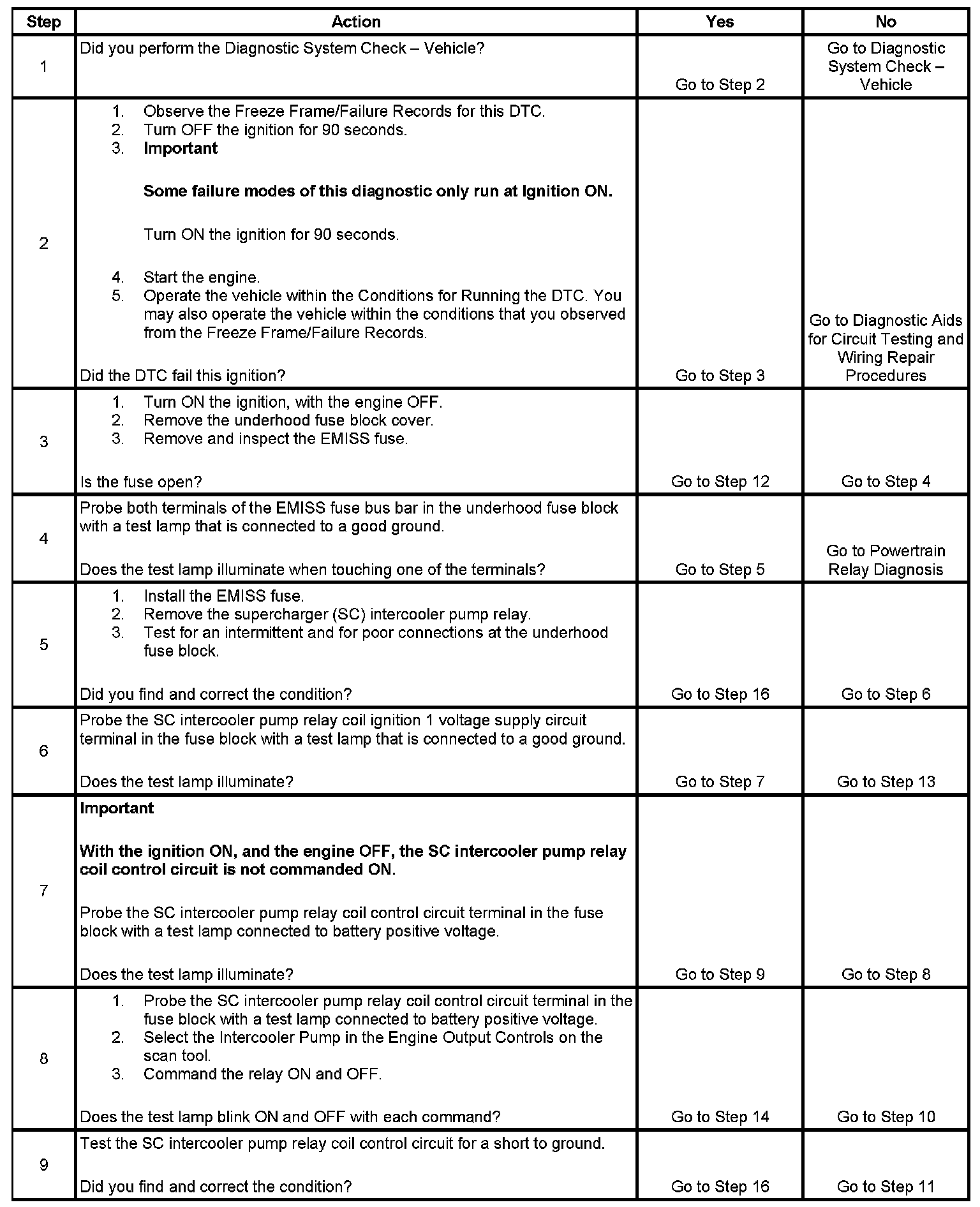

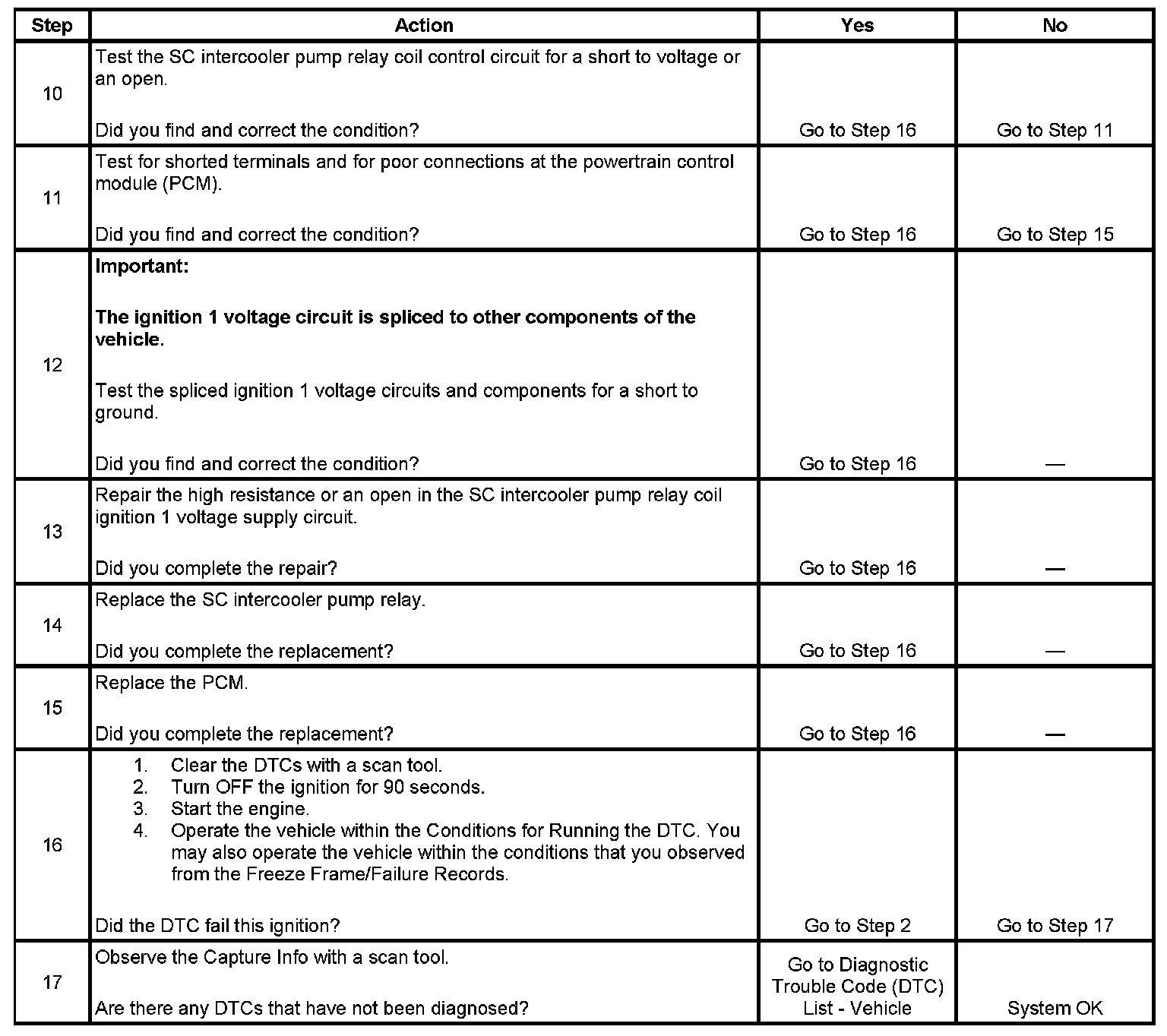

Test
