P0107

DTC P0107

Circuit Description

The manifold absolute pressure (MAP) sensor that resides in the engine intake manifold is integrated with the intake air temperature (IAT) sensor 2. The purpose of this integrated sensor is to measure the following:

* The atmospheric pressure and the vacuum or the reduced pressure that exists under different operating conditions in the engine intake manifold
* The supercharged air pressure that exists under high load or wide open throttle conditions in the engine intake manifold
* The IAT 2 after the supercharger and the intercooler as it enters the engine intake manifold
* The IAT 2 after the supercharger bypass valve and the intercooler as it enters the engine intake manifold

The MAP/IAT sensor 2 has the following types of circuits:

* A powertrain control module (PCM) supplied and regulated MAP 5-volt reference circuit
* A PCM supplied ground for the low reference circuit that is shared by the MAP and the IAT sensor 2
* A MAP sensor signal circuit that supplies a voltage input to the PCM
* A PCM supplied 5-volt, IAT signal circuit

The diaphragm within the MAP sensor responds to all of the various pressure changes in the intake manifold, and provides a signal voltage to the PCM on the signal circuit, relative to those pressure changes.

The PCM monitors the MAP sensor signal for voltage that is outside of the normal range of a properly operating sensor. If the PCM detects a MAP sensor signal voltage that is excessively low, DTC P0107 sets.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0107 Manifold Absolute Pressure (MAP) Sensor Circuit Low Voltage

Conditions for Running the DTC

* DTCs P0120, P0121, P0220, P0641, P0651, P2135 are not set.
* The engine is cranking or running.
* The TP Indicated Angle parameter is more than 0 percent, when the engine speed is less than 1,100 RPM.
OR
* The TP Indicated Angle parameter is more than 10 percent, when the engine speed is more than 1,100 RPM.
* DTC P0107 runs continuously when the above conditions are met.

Conditions for Setting the DTC

The PCM detects that the MAP sensor signal voltage is less than 0.1 volts for more than 2 seconds.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

Conditions for Clearing the MIL/DTC

* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.

Test Description

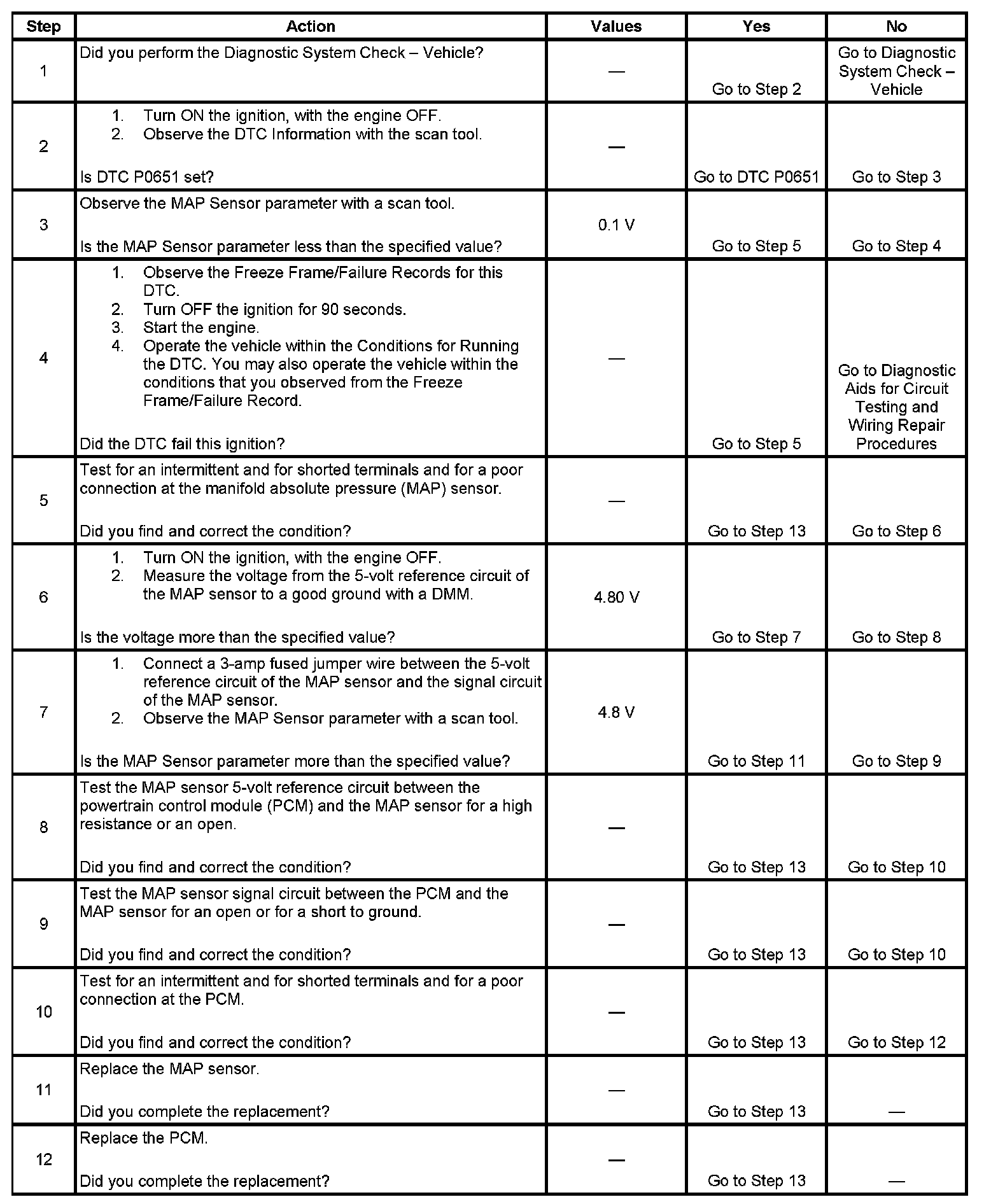

Step 1 - Step 12:

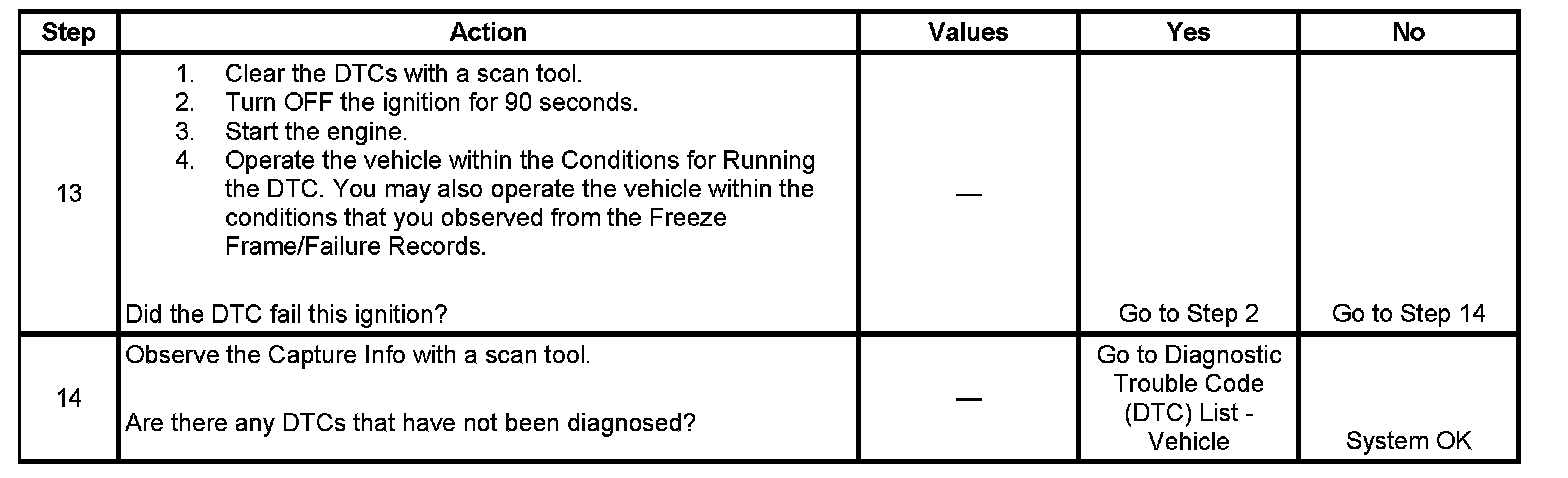

Step 13 - Step 14:

The numbers below refer to the step numbers on the diagnostic table.
2. The MAP sensor 5-volt reference circuit is shared with other sensors. If DTC P0651 is set, this indicates a shorted 5-volt reference circuit or a shorted component, and should be diagnosed first.
