P0033



DTC P0033

Circuit Description

Supercharger boost pressure is regulated to prevent engine and drive train damage. When the engine is operating under high boost conditions, the powertrain control module (PCM) limits boost pressure to 12 psi or less. The PCM disables boost under the following conditions:

* When reverse gear is selected
* When the vehicle is decelerating
* If an intercooler pump failure is detected
* If the intake air temperature (IAT) sensor 2 becomes excessively high
* If the engine coolant temperature (ECT) becomes excessively high
* Under heavy load in first and second gear at engine speeds above 5,800 RPM
* When drivetrain abuse is detected

The PCM controls boost pressure by pulse width modulation (PWM) of the boost control solenoid. The boost control solenoid is a normally open valve. Under most conditions, the PCM commands the boost control solenoid to operate at a 99-100 percent duty cycle. This keeps the solenoid valve closed and allows only inlet vacuum from the supercharger plenum to the bypass valve actuator to control the position of the bypass valve. At idle, engine vacuum is applied to the upper side of the bypass valve actuator, counteracting spring tension to hold the bypass valve open. When the engine load is increased, the engine vacuum is decreased, causing the spring in the bypass valve to overcome the diminishing applied vacuum, closing the bypass valve and allowing the boost pressure to increase. When reduced boost pressure is desired, the PCM commands the boost control solenoid to operate at a 0-98 percent duty cycle. This opens the solenoid valve and allows boost pressure to enter the bypass valve actuator at the lower side to counteract the spring tension, opening the bypass valve and recirculating excess boost pressure back into the supercharger inlet.

The PCM monitors the voltage level on the boost control solenoid control circuit. If the PCM detects an improper voltage level on the supercharger boost control solenoid control circuit, DTC P0033 sets.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0033 Supercharger Bypass Valve Solenoid Control Circuit

Conditions for Running the DTC

* The ignition is ON.
OR
* The engine is running.
* The ignition 1 voltage is between 11-18 volts.
* This DTC runs continuously within the enabling conditions.

Conditions for Setting the DTC

The PCM detects an improper voltage level on the boost control solenoid control circuit for more than 20 seconds.

Action Taken When the DTC Sets

* The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
* The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

Conditions for Clearing the MIL/DTC

* The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
* A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
* A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
* Clear the MIL and the DTC with a scan tool.

Diagnostic Aids

* For additional information, review the Boost Control System Description. Refer to Boost Control System Description.
* If the condition is intermittent, refer to Inducing Intermittent Fault Conditions and Intermittent Conditions. Component Tests and General Diagnostics Intermittent Conditions

Test

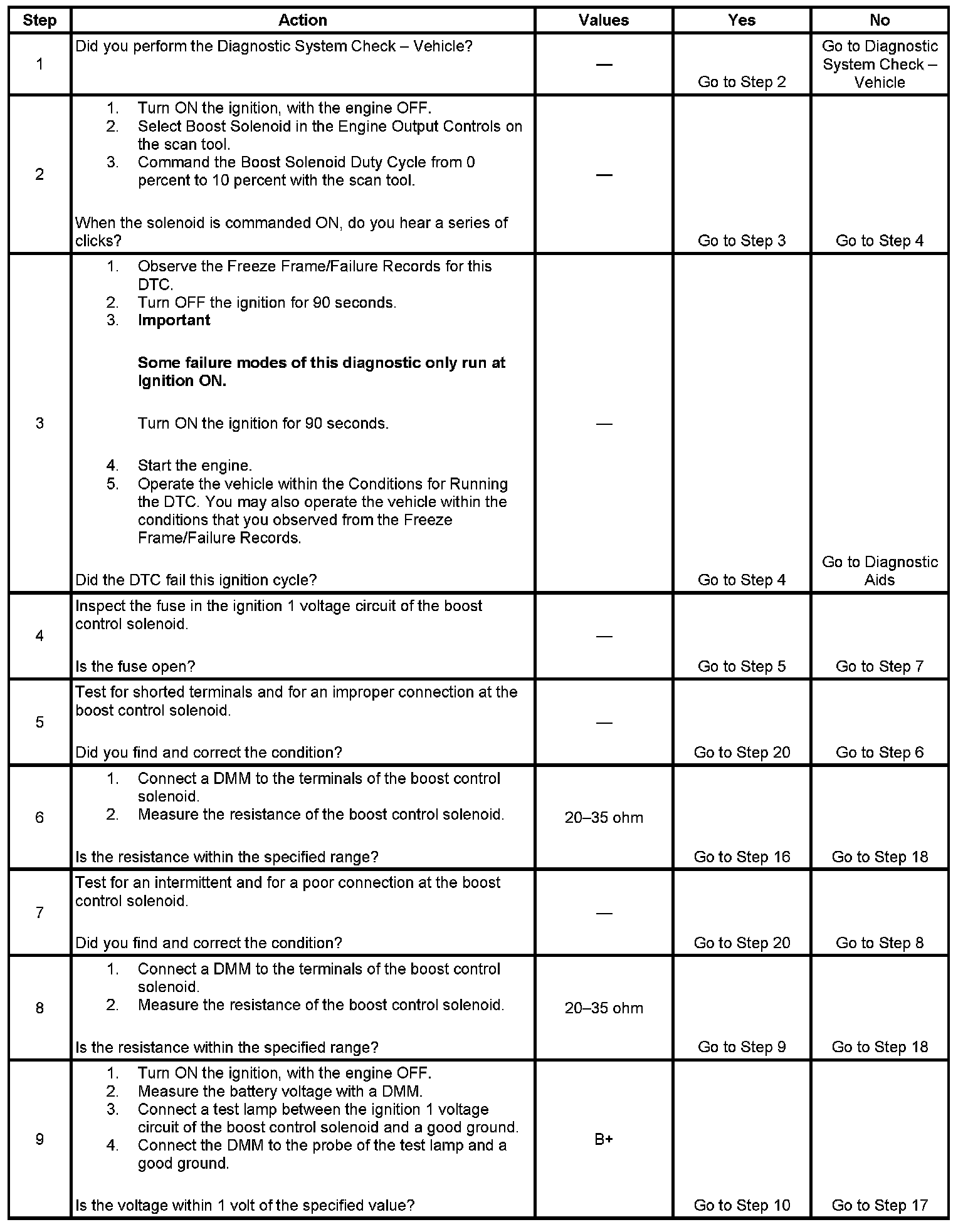

Step 1 - Step 9:

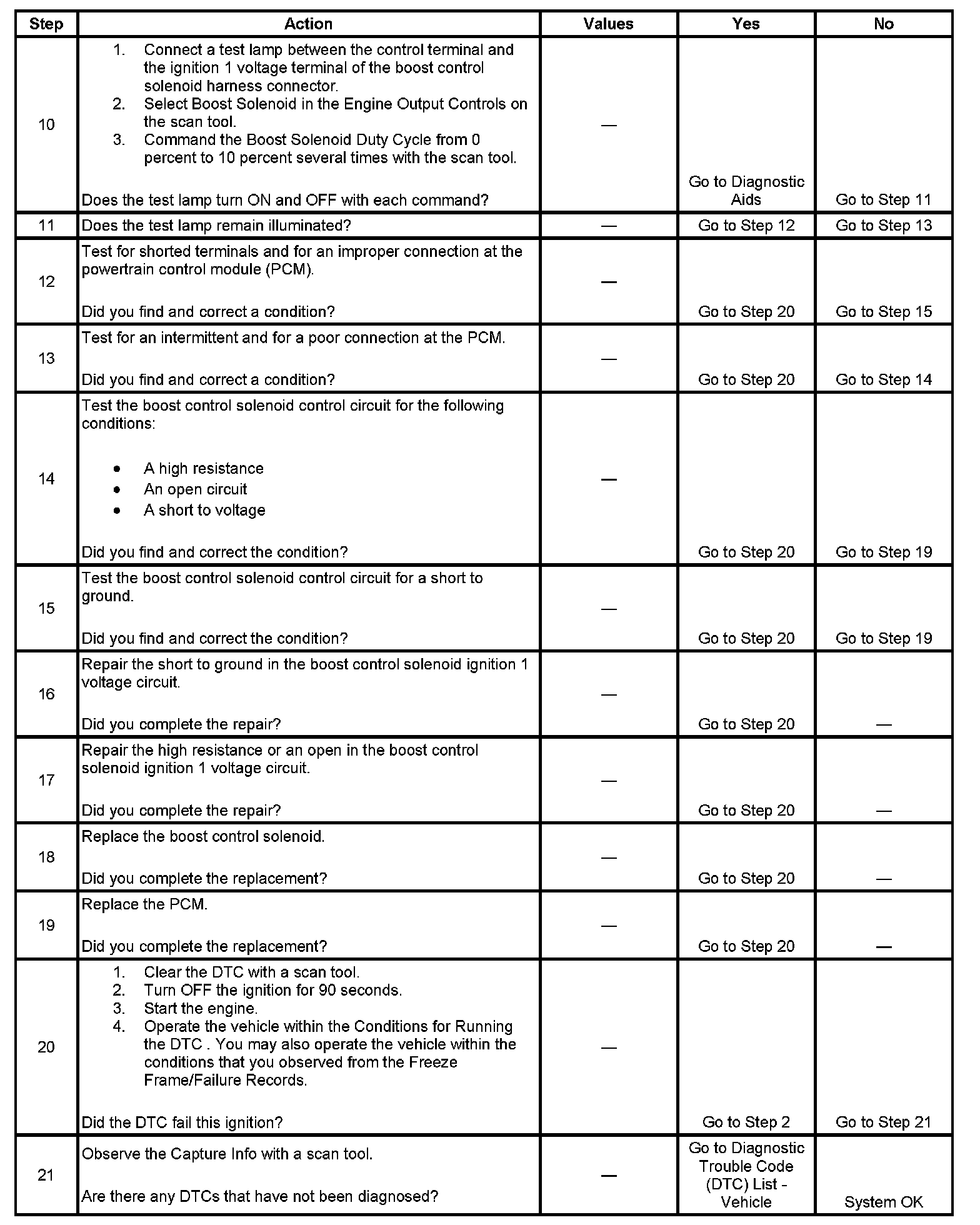

Step 10 - Step 21:
