Washer Pump/Reservoir Replacement

Washer Pump/Reservoir Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the front right wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.

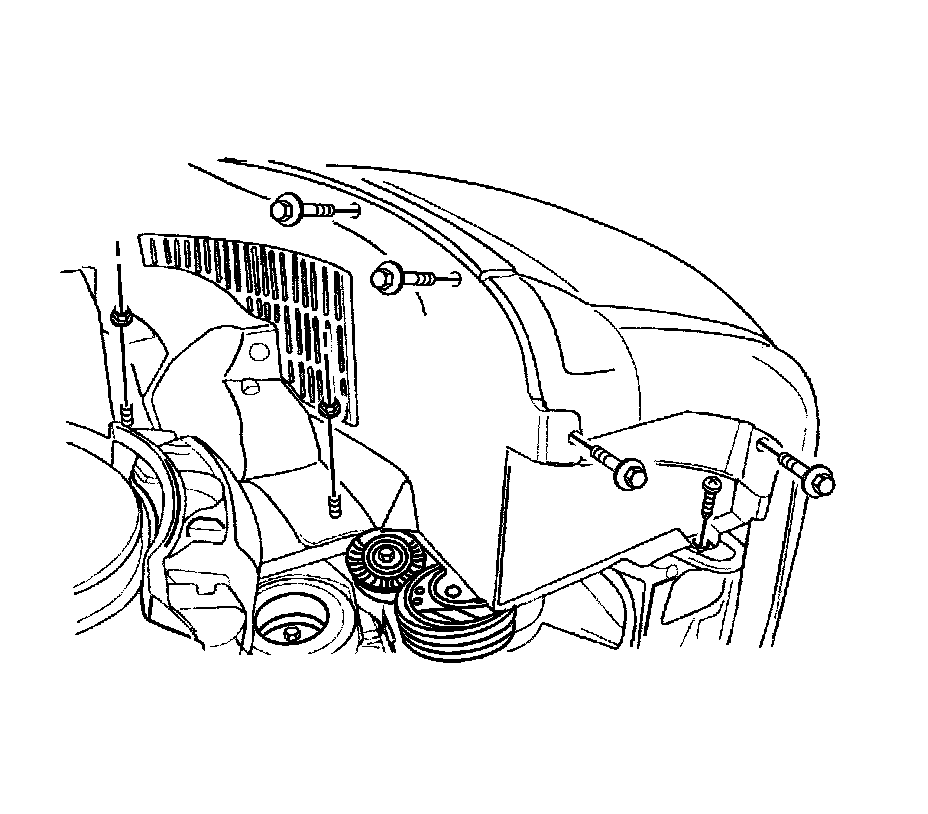

3. Remove the bolts and the screws and the front wheel well splash shield.

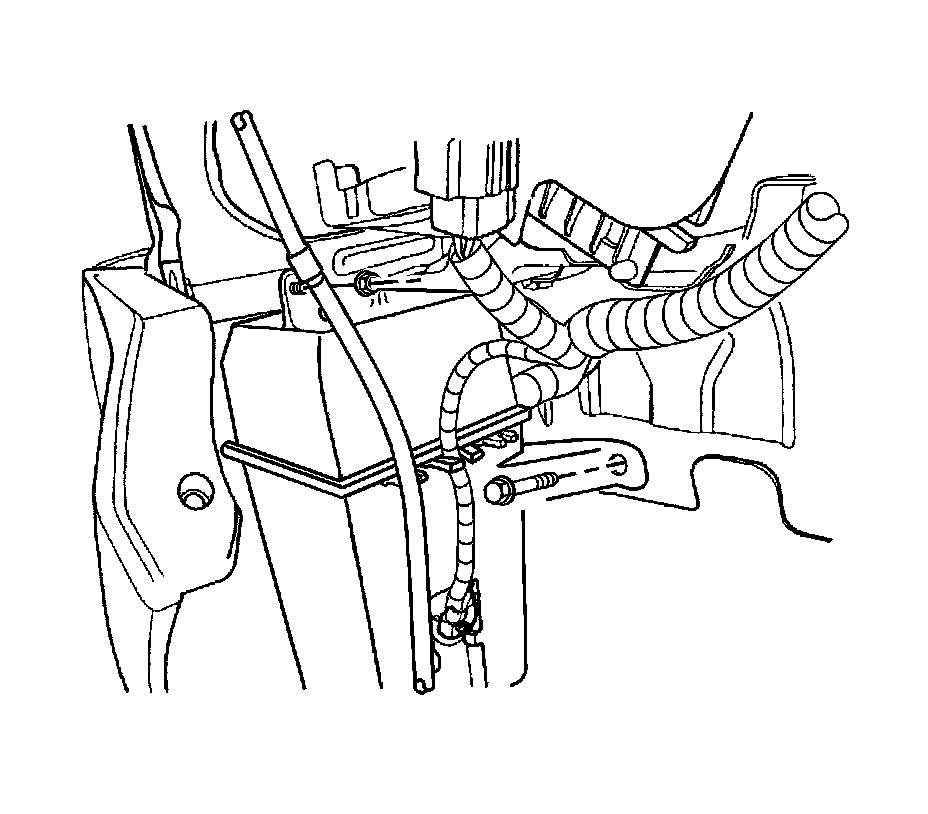

4. Disconnect the washer hose from the washer pump.
5. Disconnect the reservoir pump electrical connectors.
6. Remove the bolts and the reservoir.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the reservoir with the bolts.

Tighten the washer fluid reservoir bolts to 8 Nm (71 lb in).

2. Connect the reservoir pump electrical connector.
3. Connect the washer hose to the washer pump.




4. Install the front wheel well splash shield with the bolts and screws.

Tighten the front wheel well splash shield bolts to 1.5 Nm (13 lb in).

5. Install the front left wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
6. Connect the negative battery cable.
