Rear Door Window Glass: Service and Repair

Window Replacement - Rear Door

Removal Procedure




1. Remove the door seal trim. Refer to Water Deflector Replacement - Door Service and Repair.
2. Remove the exterior center pillar molding. Refer to Applique Replacement - Center Pillar Outer Applique Replacement - Center Pillar Outer in Exterior Trim.

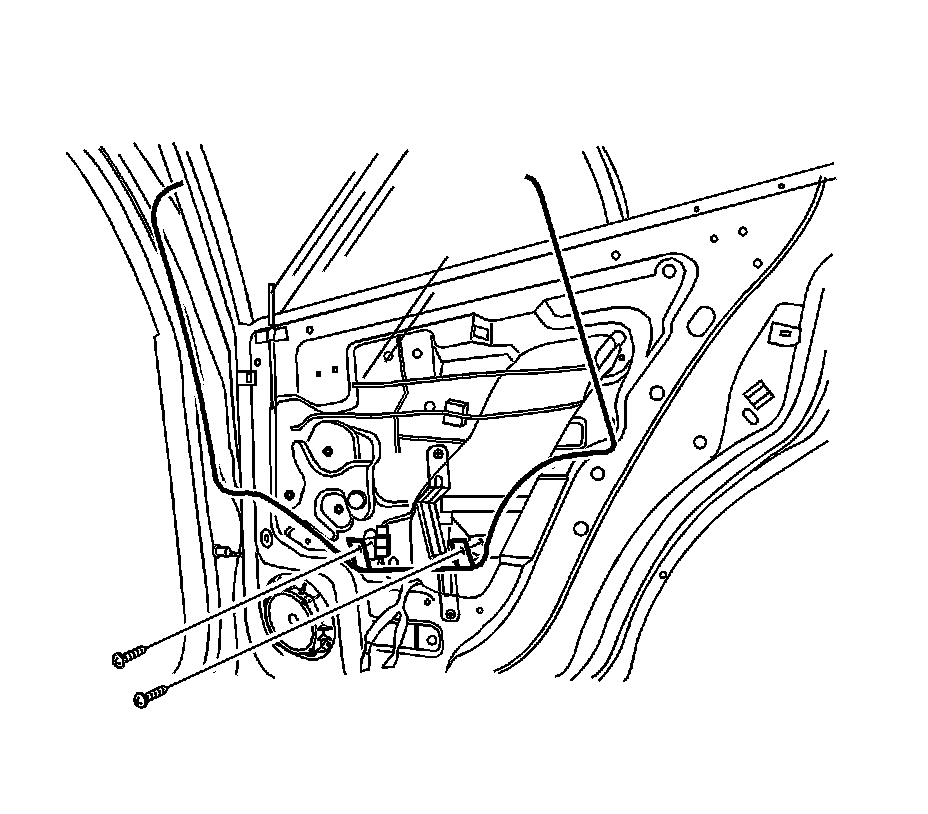

3. Remove the screws that secure the glass to the window regulator.
4. Remove the glass from the door.

Installation Procedure




1. Install the glass in the door and position the glass within the window regulator.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the glass screws.

Tighten the glass screws to 7 Nm (62 lb in).

3. Install the exterior center pillar molding. Refer to Applique Replacement - Center Pillar Outer Applique Replacement - Center Pillar Outer in Exterior Trim.
4. Install the door seal trim. Refer to Water Deflector Replacement - Door Service and Repair.
