Quarter Window Glass: Service and Repair

Quarter Window Replacement




1. Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Sedan) Trim Panel Replacement - Rear Quarter Upper (Sedan)Trim Panel Replacement - Rear Quarter Upper (Wagon) Trim Panel Replacement - Rear Quarter Upper (Wagon) in Interior Trim.

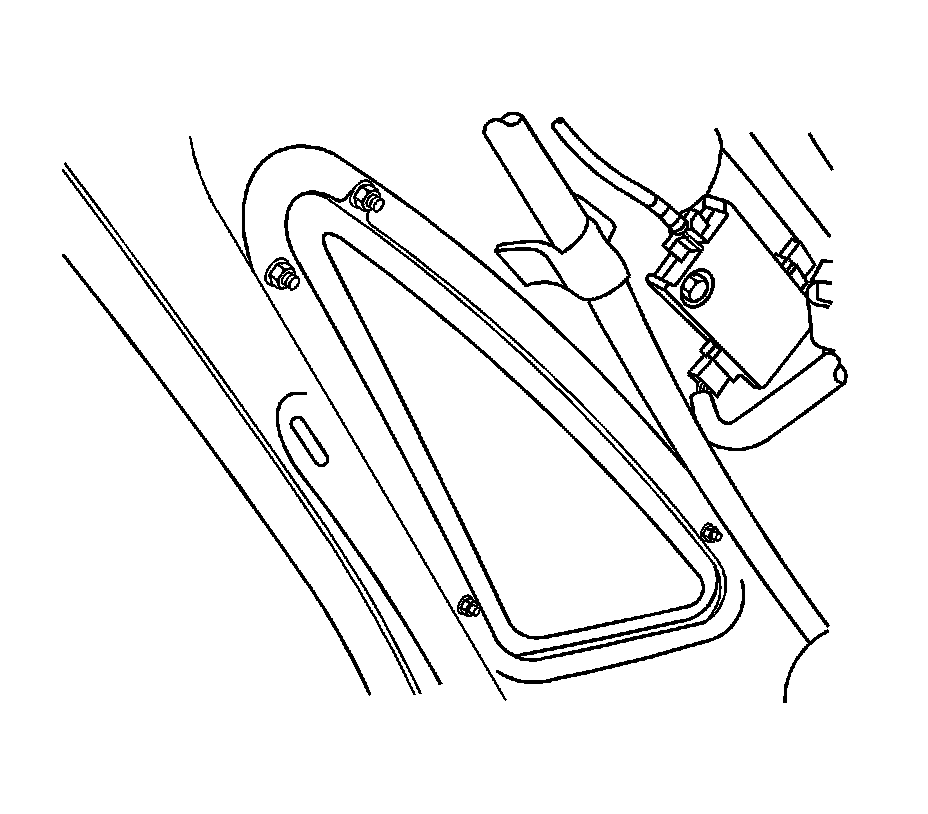

2. Remove the nuts and the rear door quarter glass.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

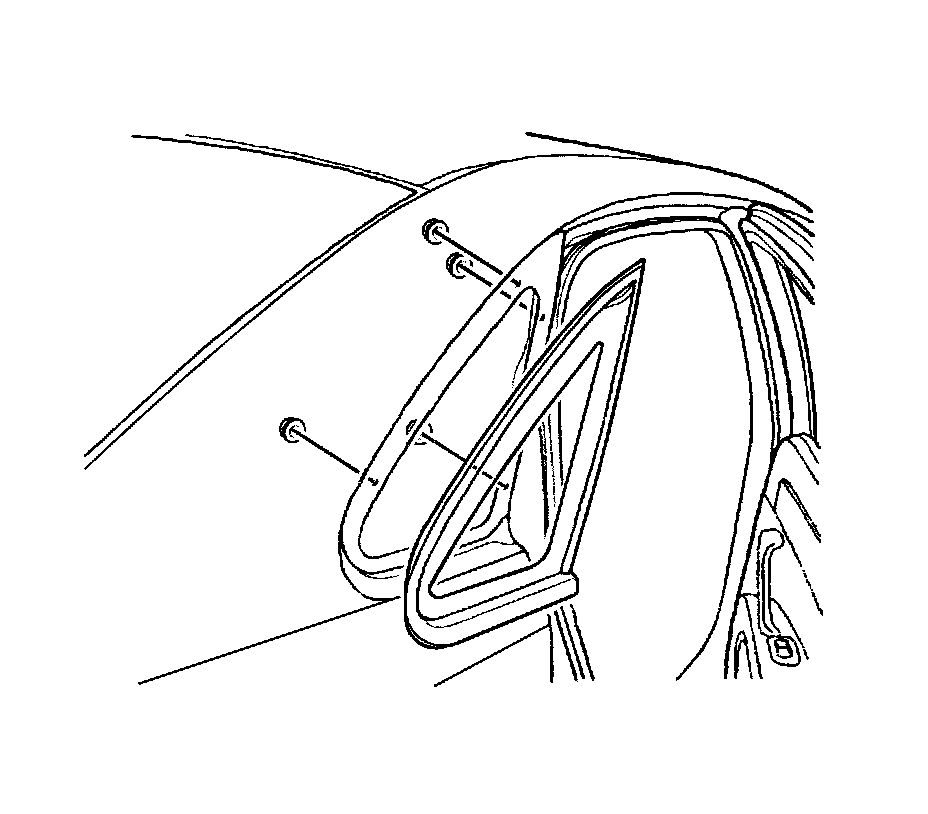

1. Install the rear door quarter glass with the nuts.

Tighten the rear door quarter glass nuts to 2.5 Nm (22 lb in).

2. Install the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Sedan) Trim Panel Replacement - Rear Quarter Upper (Sedan)Trim Panel Replacement - Rear Quarter Upper (Wagon) Trim Panel Replacement - Rear Quarter Upper (Wagon) in Interior Trim.
