Gearshift Lever Case Replacement




Gearshift Lever Case Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the rod clamp. Refer to Shift Linkage Adjustment 1. Shift Linkage Adjustment.
3. Remove the console.

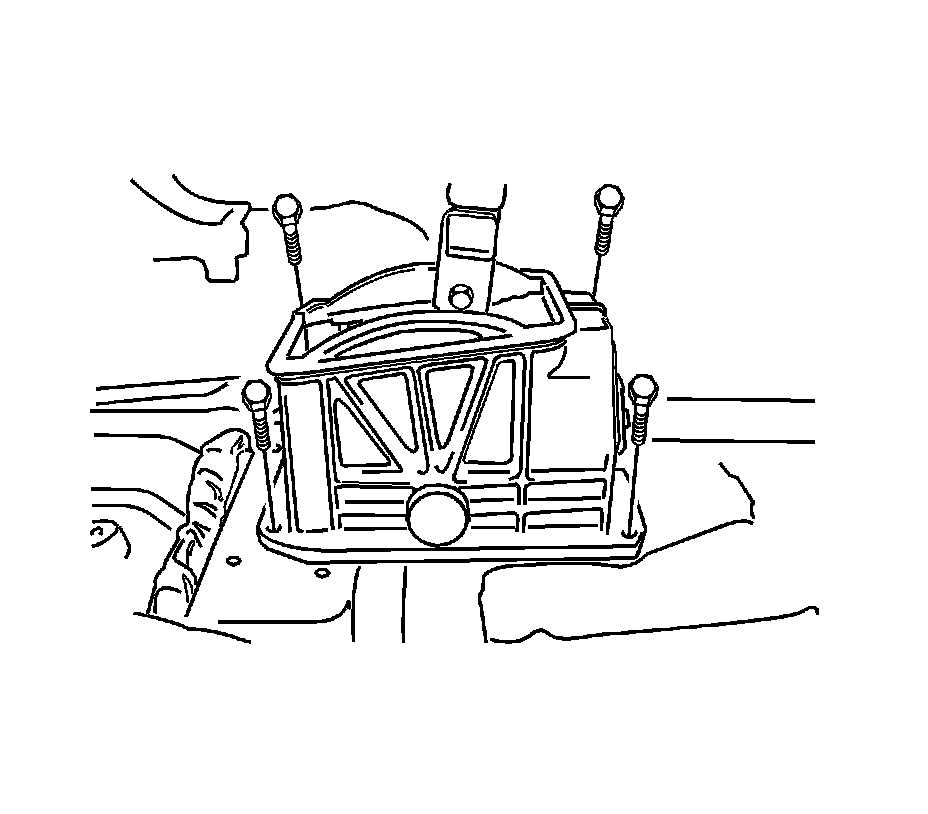

4. Remove the gearshift lever housing bolts and the gearshift lever housing.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

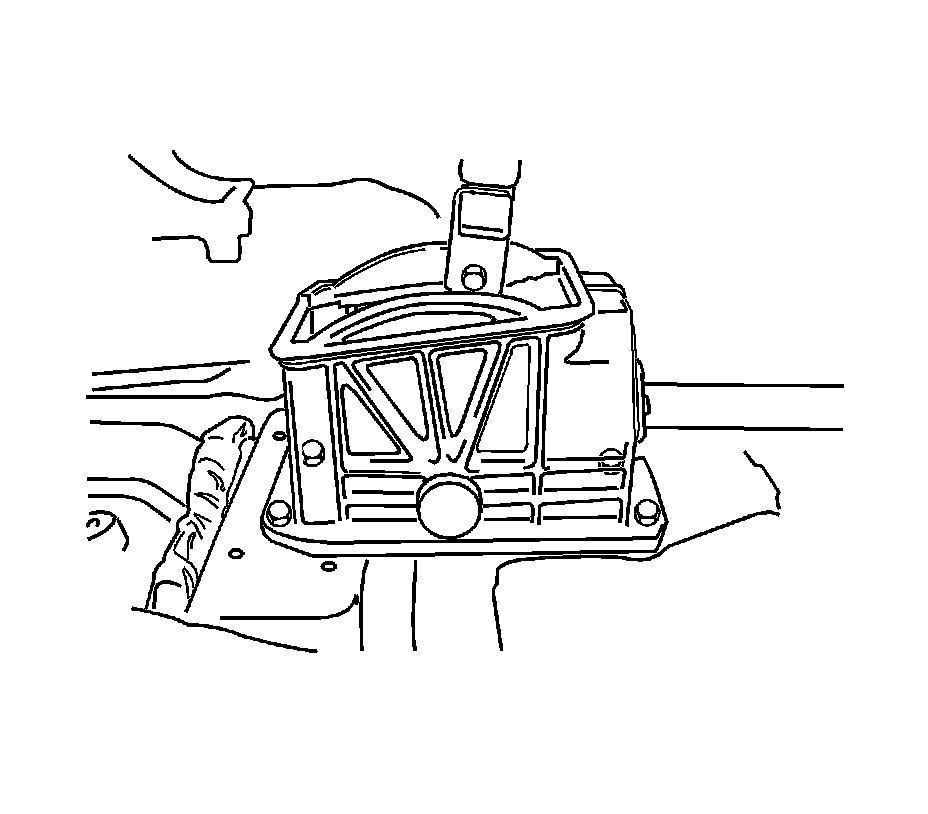

1. Install the gearshift lever housing and the gearshift lever housing bolts.

Tighten the gearshift housing bolts to 7 Nm (62 lb in).

2. Adjust the shift linkage.
3. Install the console.
4. Connect the negative battery cable.
