Gearshift Control Lever Replacement

Gearshift Control Lever Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Position the gearshift lever into NEUTRAL.
3. Disconnect the boot from the console cover.

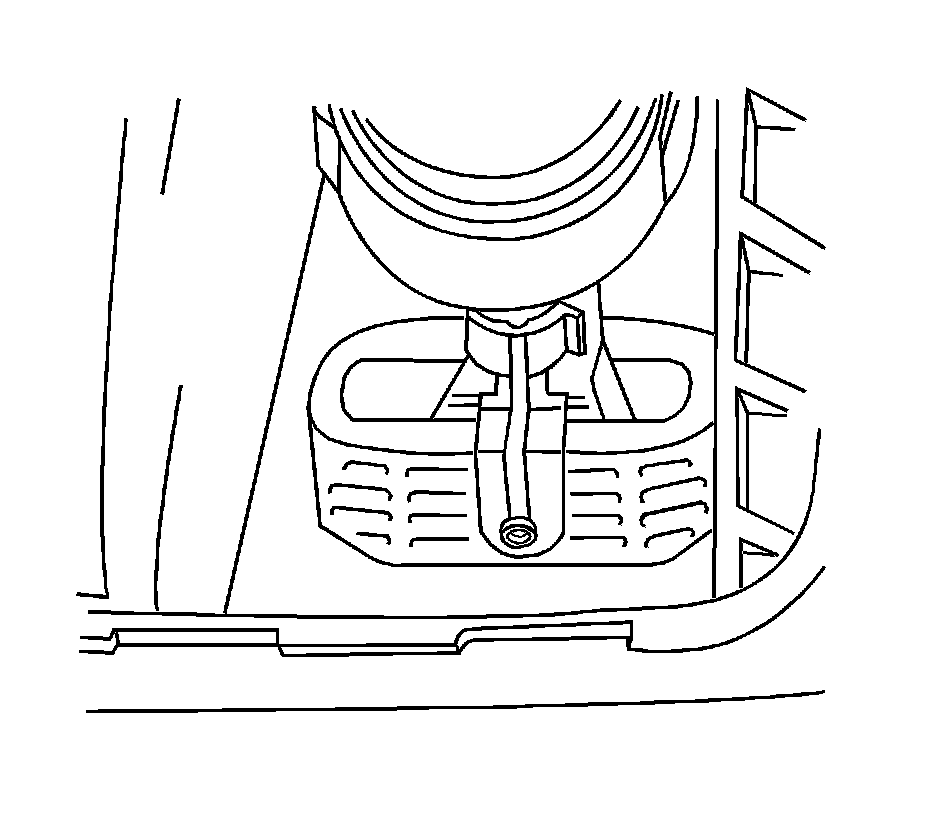

4. Lift the console cover upward to expose the shift control lever mechanism.




5. Rotate the gearshift lever stop clamp and remove it.
6. Remove the gearshift lever from the gearshift lever shaft.

Installation Procedure




1. Install the gearshift lever into the gearshift lever shaft.
2. Install the gearshift lever stop clamp.
3. Rotate the gearshift lever stop clamp to secure it.




4. Lower the boot and connect it to the console cover.
5. Connect the negative battery cable.
