22. Differential Assembly Installation




Differential Assembly Installation

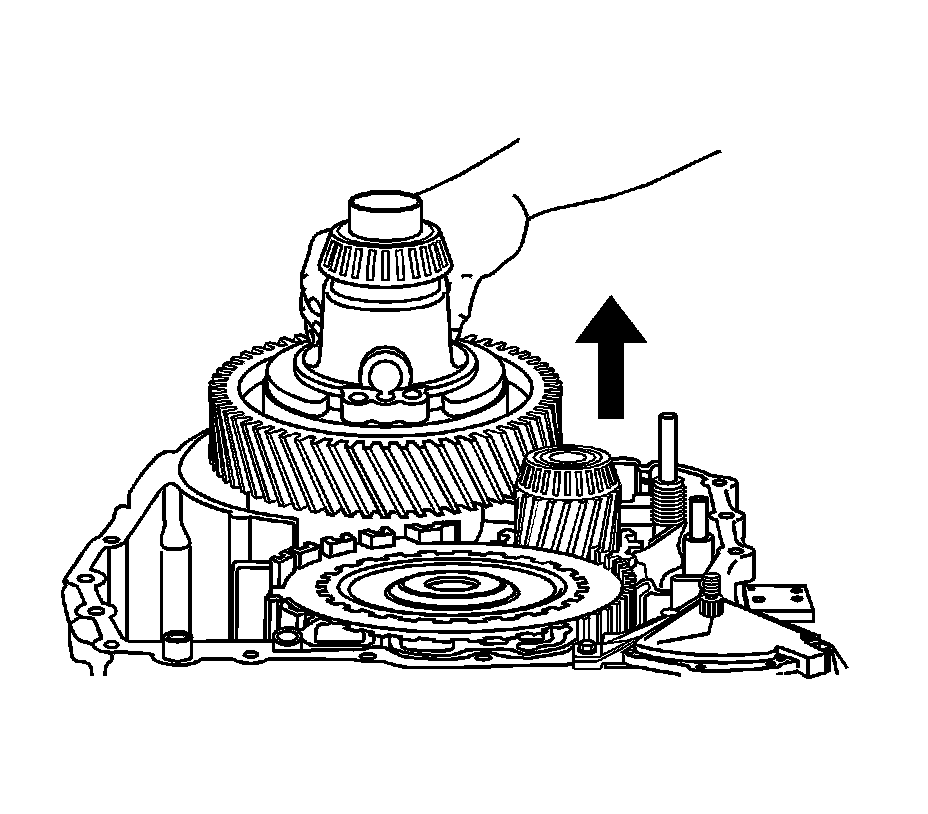

1. Install the differential.
2. Install the torque converter housing. Refer to Torque Converter Installation 32. Torque Converter Installation.
