13. Brake F, Slotted Nut Removal

Brake F, Slotted Nut Removal

Tools Required

DT 46474 (DW260-060) Brake F Cup Spring Compressor





Caution: Refer to Safety Glasses Caution Safety Glasses Caution.

1. Remove the side shaft. Refer to Side Shaft Removal 11. Side Shaft Removal.
2. Remove the disc set.




3. Remove the brake F inner disc carrier.

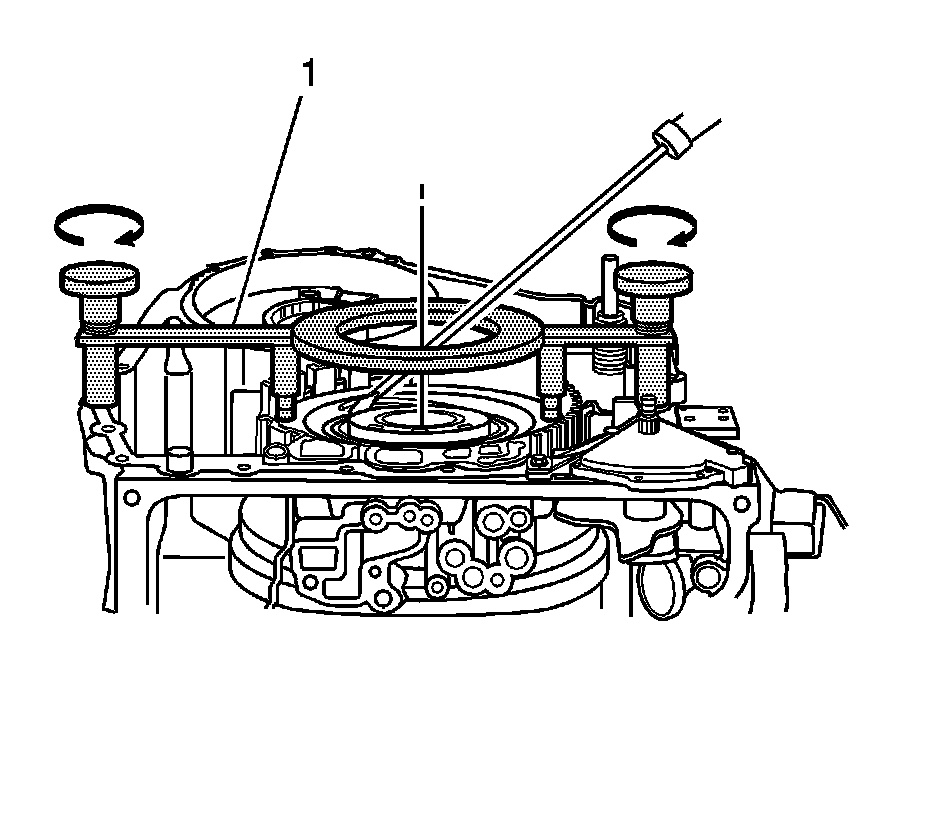

4. Install DT 46474 (1) and remove the brake F split stop ring.
5. Remove DT 46474 (1).




6. Remove the cup spring.




7. Release the piston F by applying compressed air to the bore.





Important: Remove the plate by pressing the plate upward from beneath.


8. Remove piston F and remove the bearing plate with the spur gear.
