Harness Routing Views

Harness Routing Views

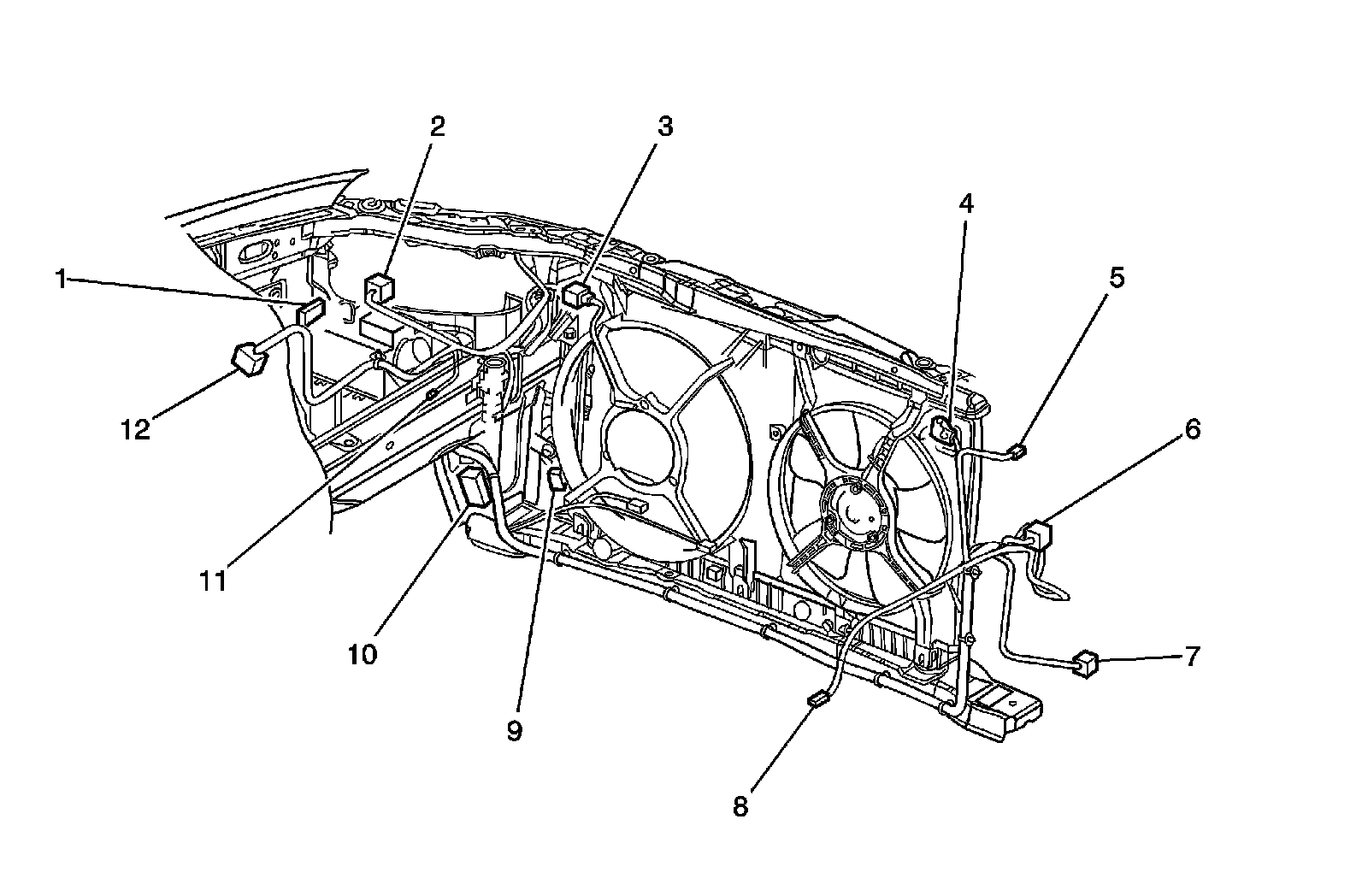

Front Harness Routing




1 - C109
2 - Left Hand Headlamp
3 - Main Cooling Fan
4 - Auxiliary Cooling Fan
5 - Right Hand Turn Signal Lamp
6 - Right Hand Headlamp
7 - Right Hand Fog Lamp
8 - Side Turn Signal Lamp
9 - Horn
10 - Cooling Fan Resistor
11 - G101
12 - C104

Rear Harness Wiring




1 - Trunk Latch Switch
2 - Theft Deterrent Tamper Switch
3 - License Plate Lamp

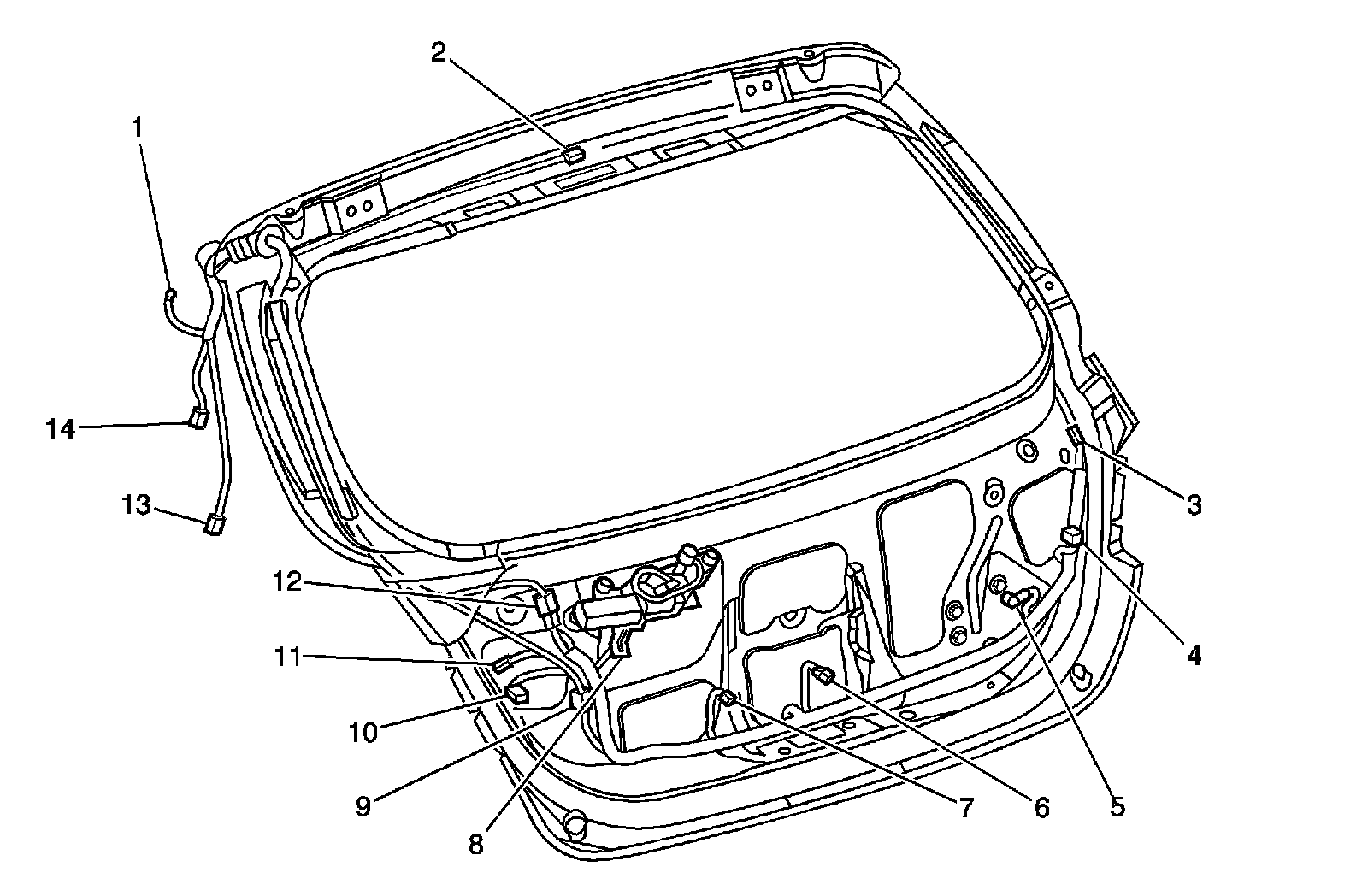

Liftgate Rear Harness Routing




1 - C402
2 - CHMSL
3 - Defog (+)
4 - RR Combination Lamp RH
5 - T/Gate Actuator
6 - Temper Switch
7 - License Lamp
8 - RR Wiper Motor
9 - C406
10 - RR Combination Lamp LH
11 - Defog (-)
12 - C405
13 - C404
14 - C403

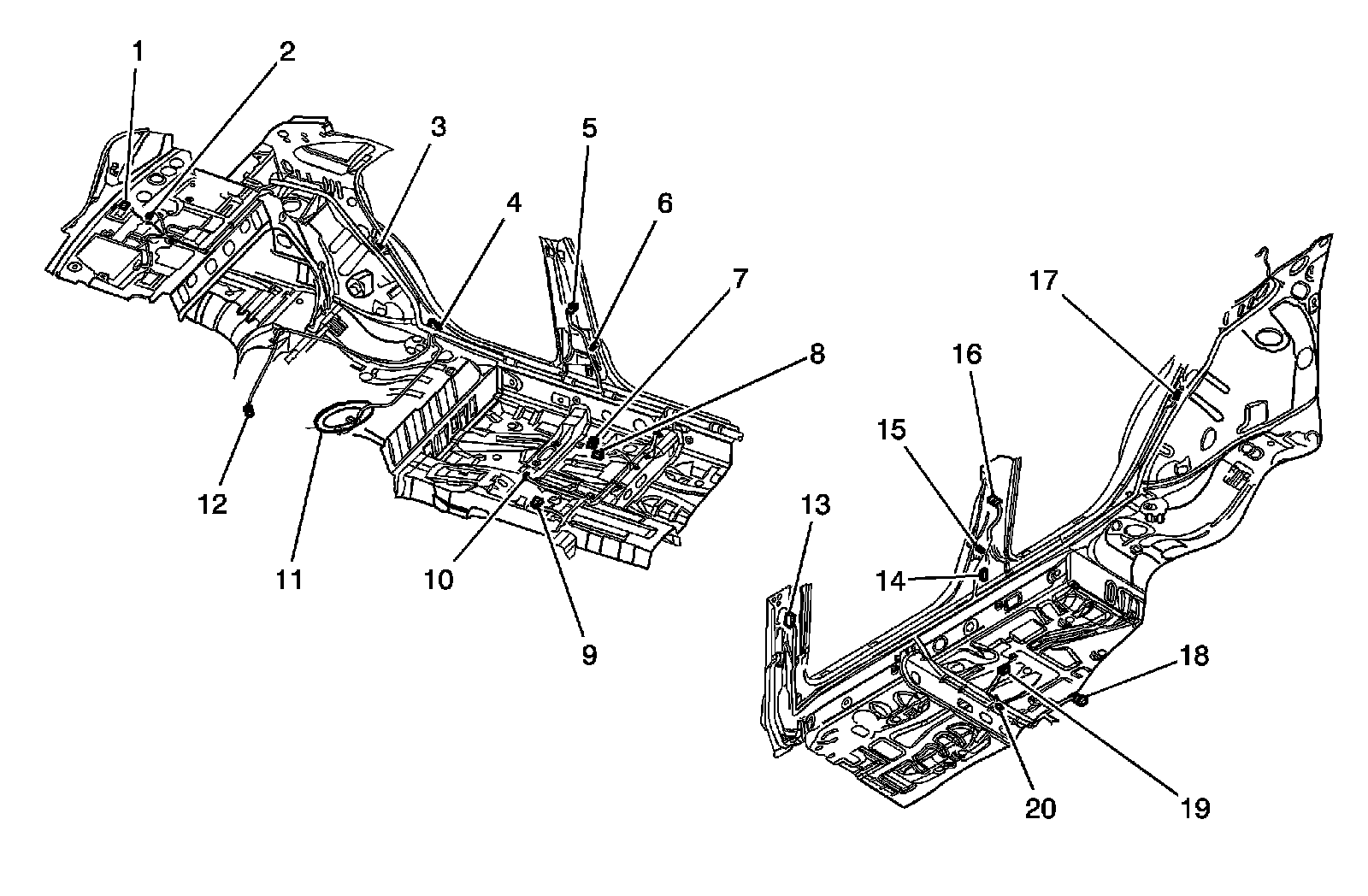

Floor Harness Routing




1 - Trunk Room Lamp
2 - CHMSL
3 - Rear Door Contact Switch
4 - G302
5 - C351
6 - Front Door Contact Switch
7 - Side Air Bag
8 - Side Air Bag Sensor
9 - C301
10 - Parking Brake Switch
11 - Fuel Pump
12 - C302
13 - C351
14 - Side Air Bag Sensor
15 - Front Door Contact Switch
16 - C371
17 - Rear Door Contact Switch
18 - C207
19 - Side Air Bag
20 - G301

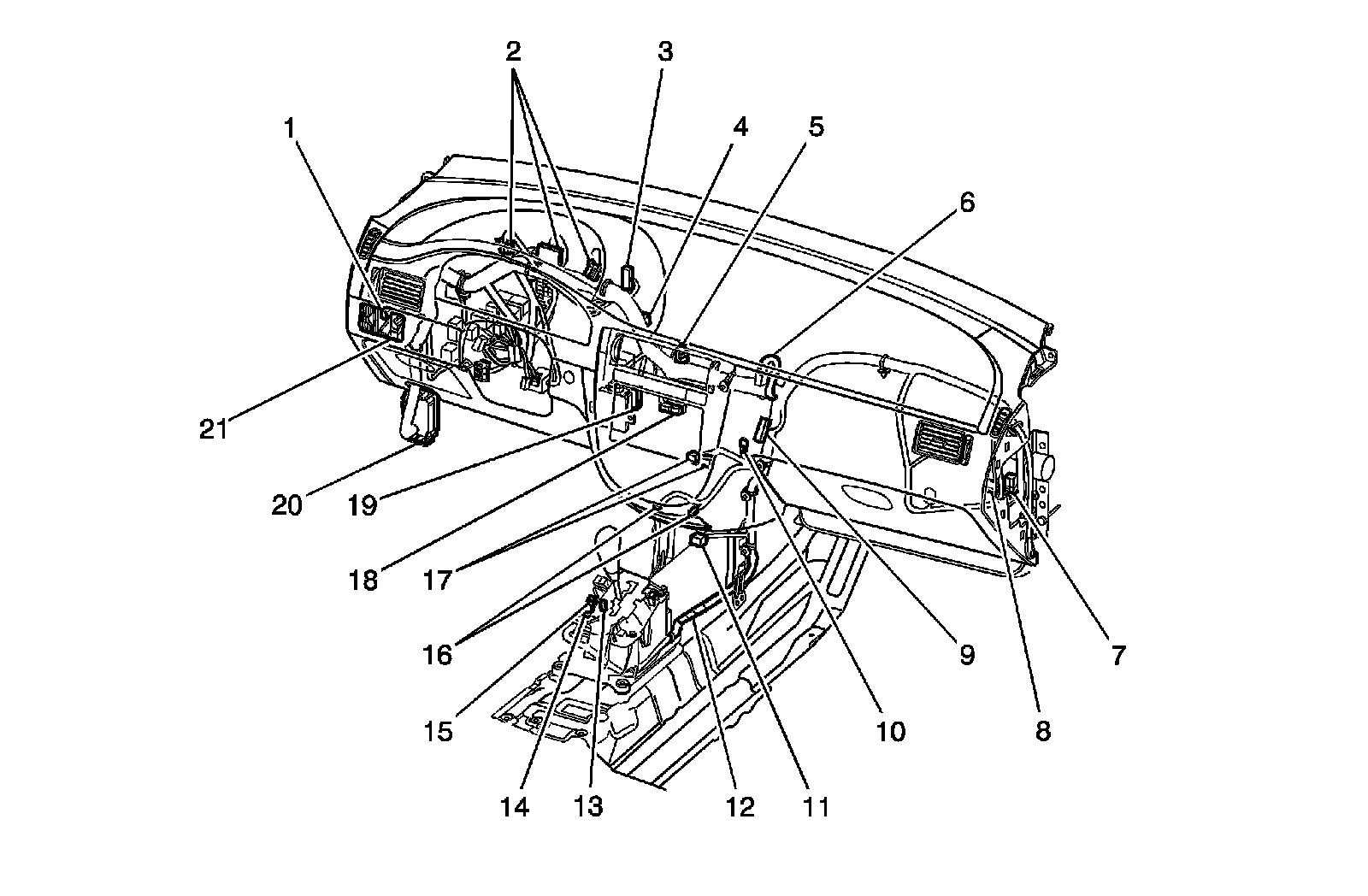

Instrument Harness Routing




1 - Headlamp Leveling Switch
2 - Instrument Cluster
3 - SP202
4 - C207
5 - Hazard Switch
6 - Clock
7 - Outside Rearview Mirror
8 - C208
9 - SP204
10 - G204
11 - Auxiliary Power Outlet
12 - C210
13 - PRNDL Illumination
14 - BTSI Solenoid
15 - Hold Switch
16 - Cigar Lighter and Ash Tray
17 - A/C Control Switch
18 - Radio
19 - SP203
20 - C202
21 - Dimmer Control Unit

Door Harness Routing




1 - Status Display
2 - C351
3 - Tweeter
4 - Door Speaker
5 - Trunk Open Switch
6 - Door Lock Switch
7 - Power Window Switch
8 - Door Lock Actuator
9 - Central Locking and Theft Deterrent
10 - Rear Door Lock Actuator
11 - Tweeter
12 - C371/C381
13 - Rear Door Speaker
14 - Rear Door Power Window Motor
15 - Rear Door Power Window Switch
