Rear Suspension

Stabilizer Shaft Link Replacement

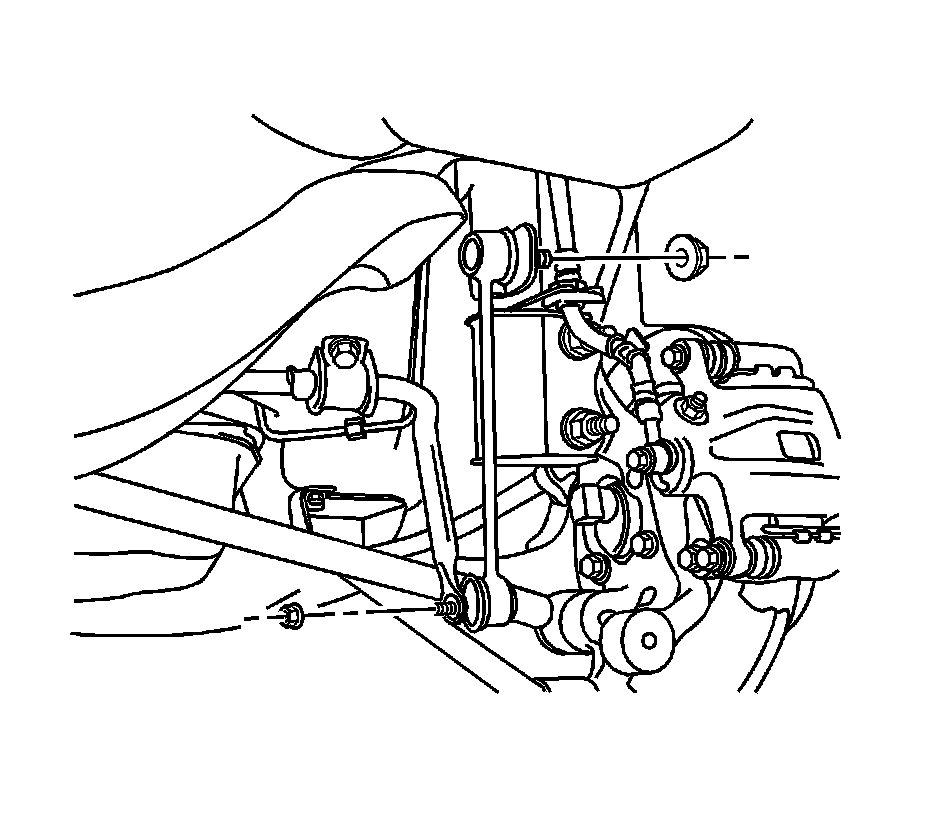

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair in General Information.
2. Remove the wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
3. Remove the stabilizer shaft-to-stabilizer link nut.
4. Remove the stabilizer link-to-strut assembly nut.
5. Remove the stabilizer link.

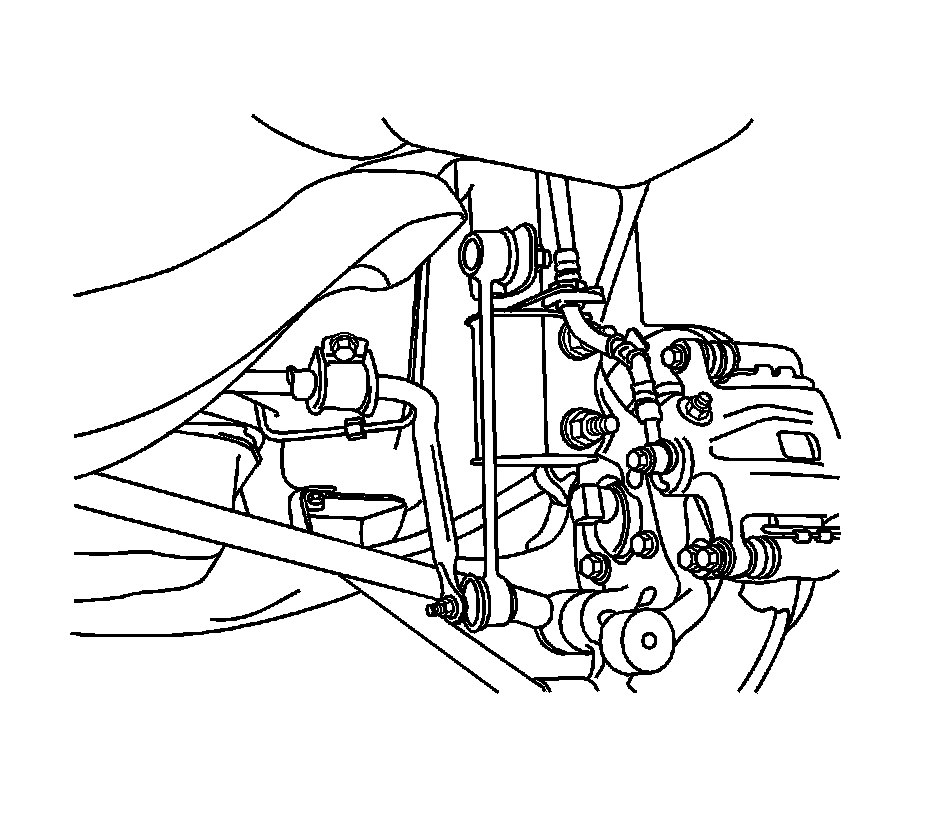

Installation Procedure




1. Install the stabilizer link.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the stabilizer link-to-strut assembly nut.

Tighten the stabilizer link-to-strut assembly nut to 47 Nm (35 lb ft).

3. Install the stabilizer shaft-to-stabilizer link nut.

Tighten the stabilizer shaft-to-stabilizer link nut to 47 Nm (35 lb ft).

4. Install the wheel. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
5. Lower the vehicle.
