Suspension: Locations

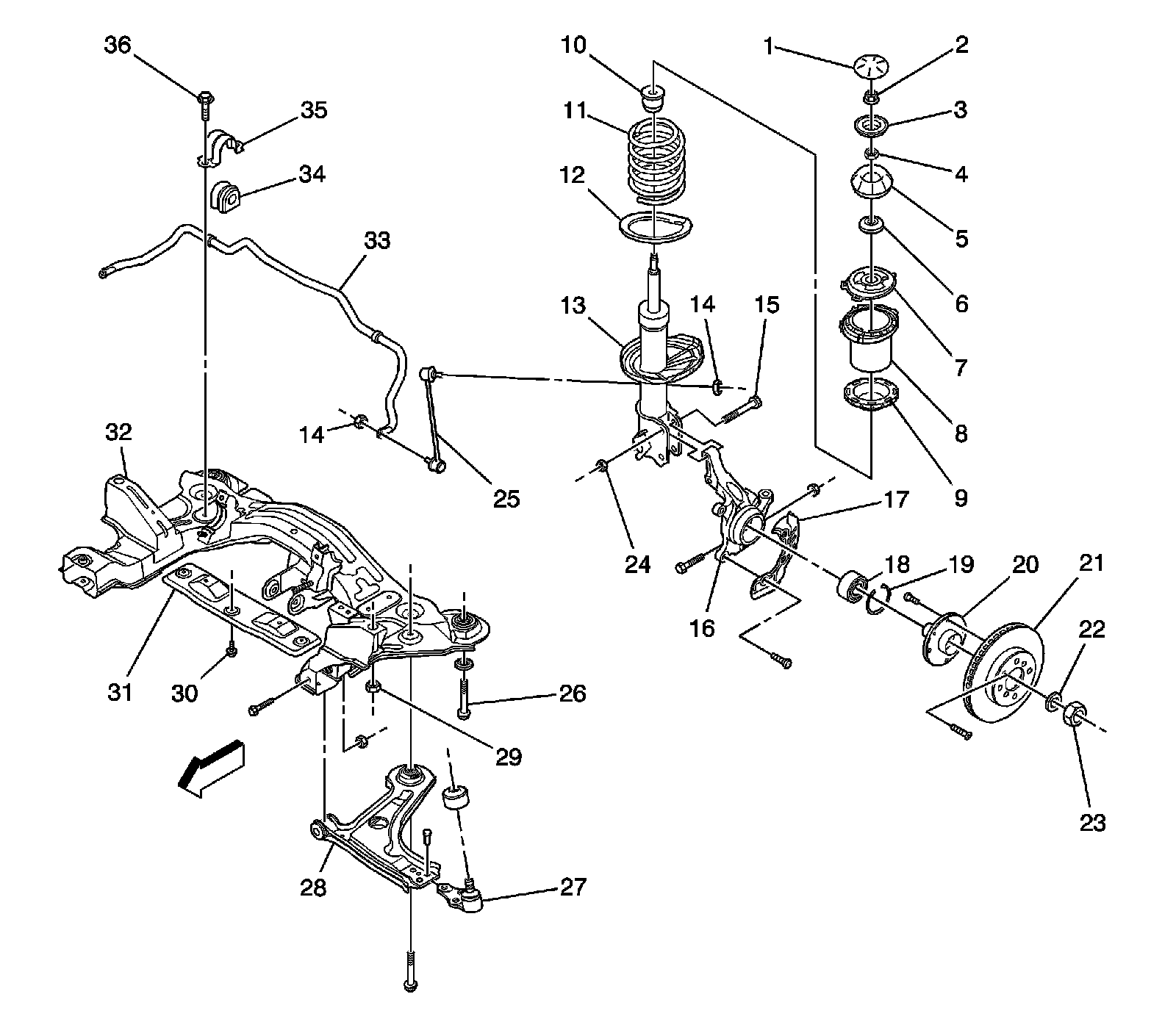

Front Suspension Components




1 - Cap
2 - Strut Upper Nut
3 - Washer
4 - Piston Rod Nut
5 - Strut Mount
6 - Strut Bearing
7 - Upper Spring Seat
8 - Front Spring Locator
9 - Upper Spring Insulator
10 - Hollow Bumper
11 - Front Coil Spring
12 - Lower Spring Insulator
13 - Front Strut
14 - Stabilizer Link Nut
15 - Steering Knuckle-to-Strut Assembly
16 - Steering Knuckle
17 - Brake Shield
18 - Front Hub Bearing
19 - Outer Snap Ring
20 - Front Hub
21 - Front Brake Disc
22 - Washer
23 - Caulking Nut
24 - Nut
25 - Stabilizer
26 - Crossmember Bolt
27 - Ball Joint
28 - Control Arm
29 - Crossmember Nut
30 - Crossmember Cover Bolt
31 - Crossmember Cover
32 - Front Suspension Crossmember
33 - Stabilizer
34 - Stabilizer Clamp Insulator
35 - Stabilizer Clamp
36 - Stabilizer Clamp Bolt
