Power Steering Fluid Reservoir: Service and Repair

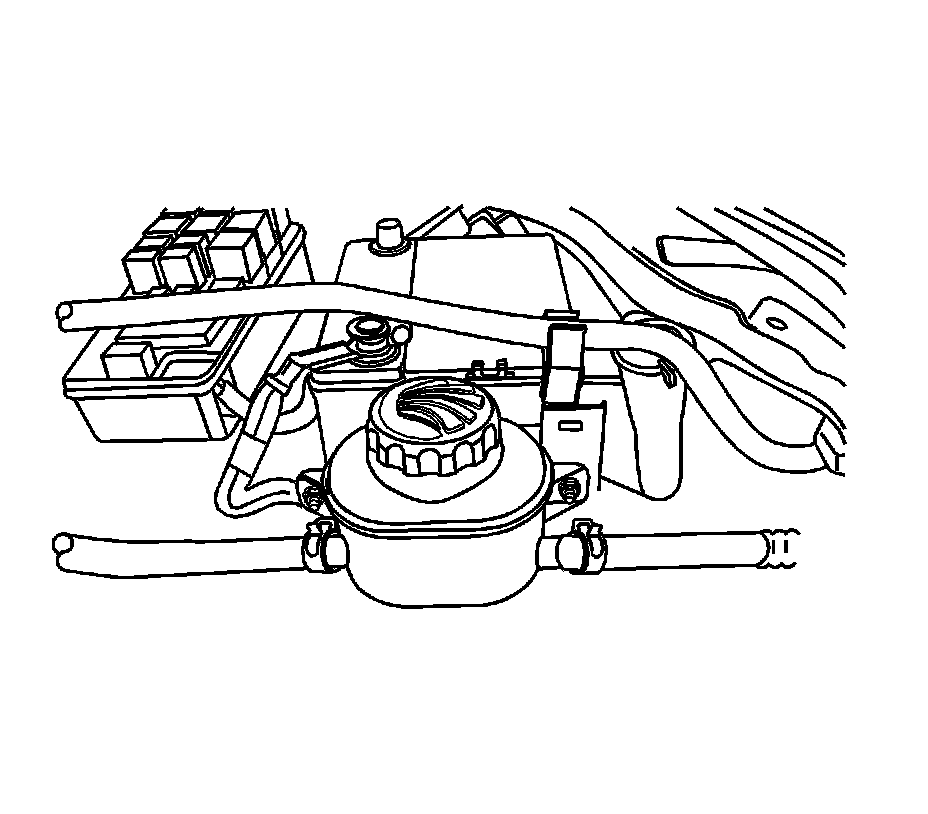

Power Steering Fluid Reservoir Replacement

Removal Procedure




1. Siphon the power steering fluid from the fluid reservoir.
2. Loosen the hose clamps and remove both hoses from the fluid reservoir.
3. Remove the fluid reservoir nuts.
4. Remove the reservoir.

Installation Procedure




1. Attach the fluid reservoir to the fluid reservoir bracket.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the fluid reservoir with the nuts.

Tighten the fluid reservoir nuts to 10 Nm (89 lb in).

3. Connect both hoses to the fluid reservoir and secure the hose clamps.

Notice: Refer to Using Proper Power Steering Fluid Notice Using Proper Power Steering Fluid Notice.

4. Fill the fluid reservoir with power steering fluid.
5. Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system. Refer to Bleeding the Power Steering System Bleeding the Power Steering System.
