Seat Belt Height Adjuster: Service and Repair

Seat Belt Height Adjuster Replacement - Front

Removal Procedure




1. Remove the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar Trim Panel Replacement - Upper Center Pillar in Interior Trim.

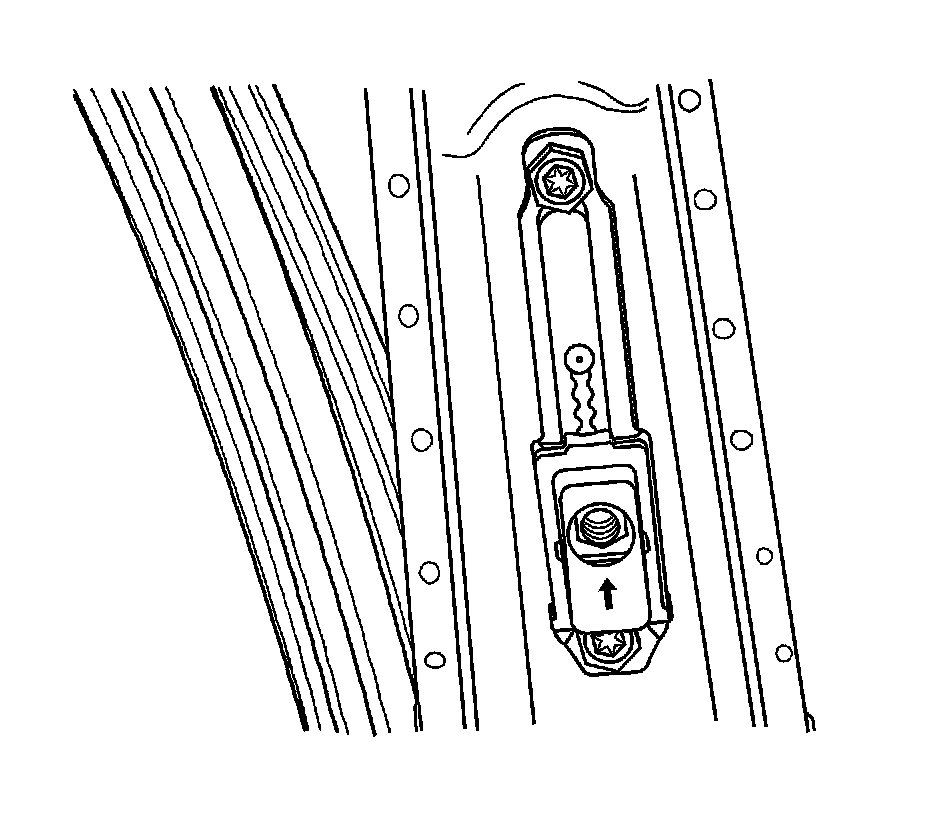

2. Remove the bolts and the seat belt height adjuster.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the seat belt height adjuster with the bolts.

Tighten the front seat belt height adjuster bolts to 23 Nm (17 lb ft).

2. Install the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar Trim Panel Replacement - Upper Center Pillar in Interior Trim.
