Fuse Block: Locations

Electrical Center Identification Views

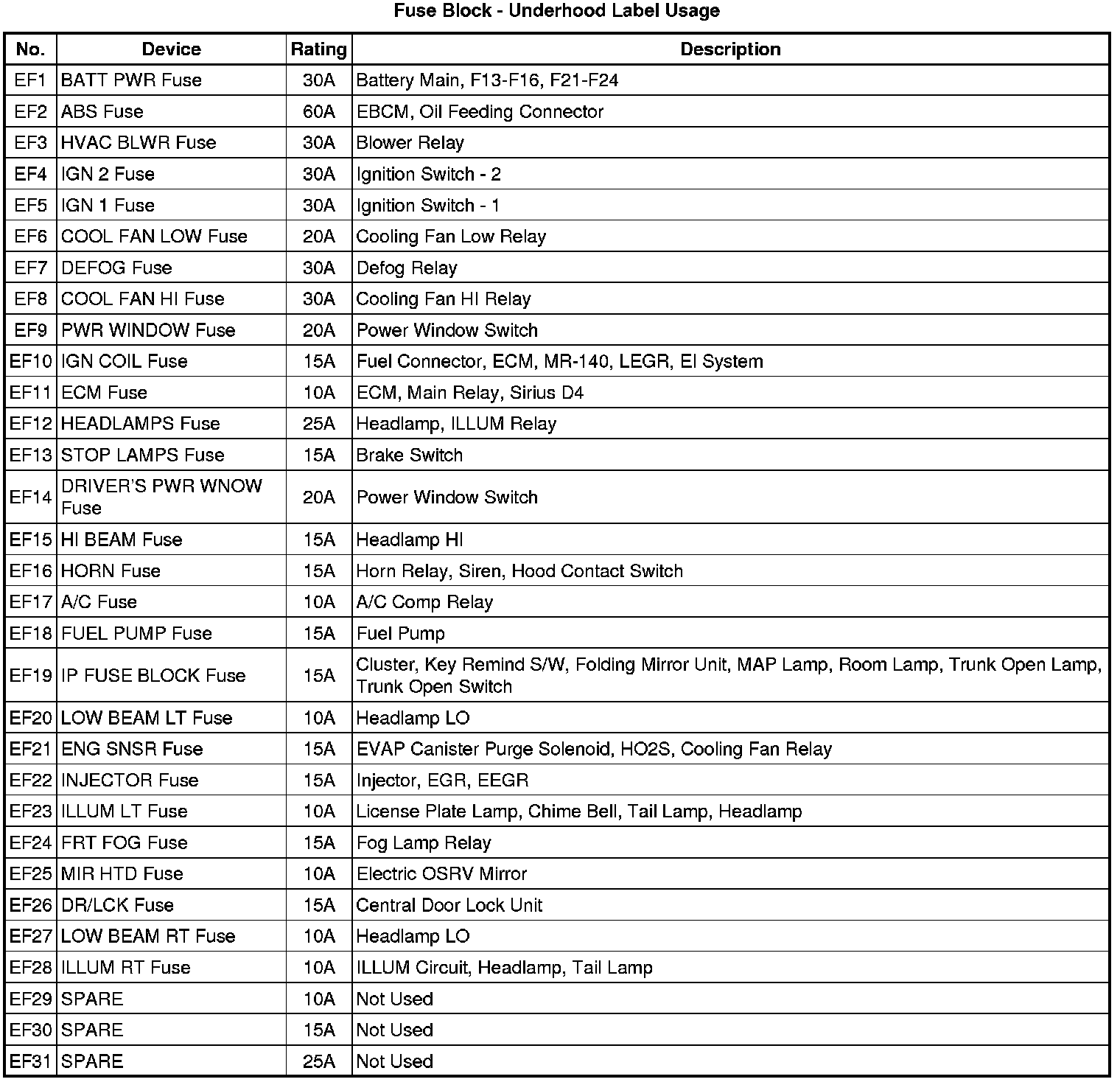

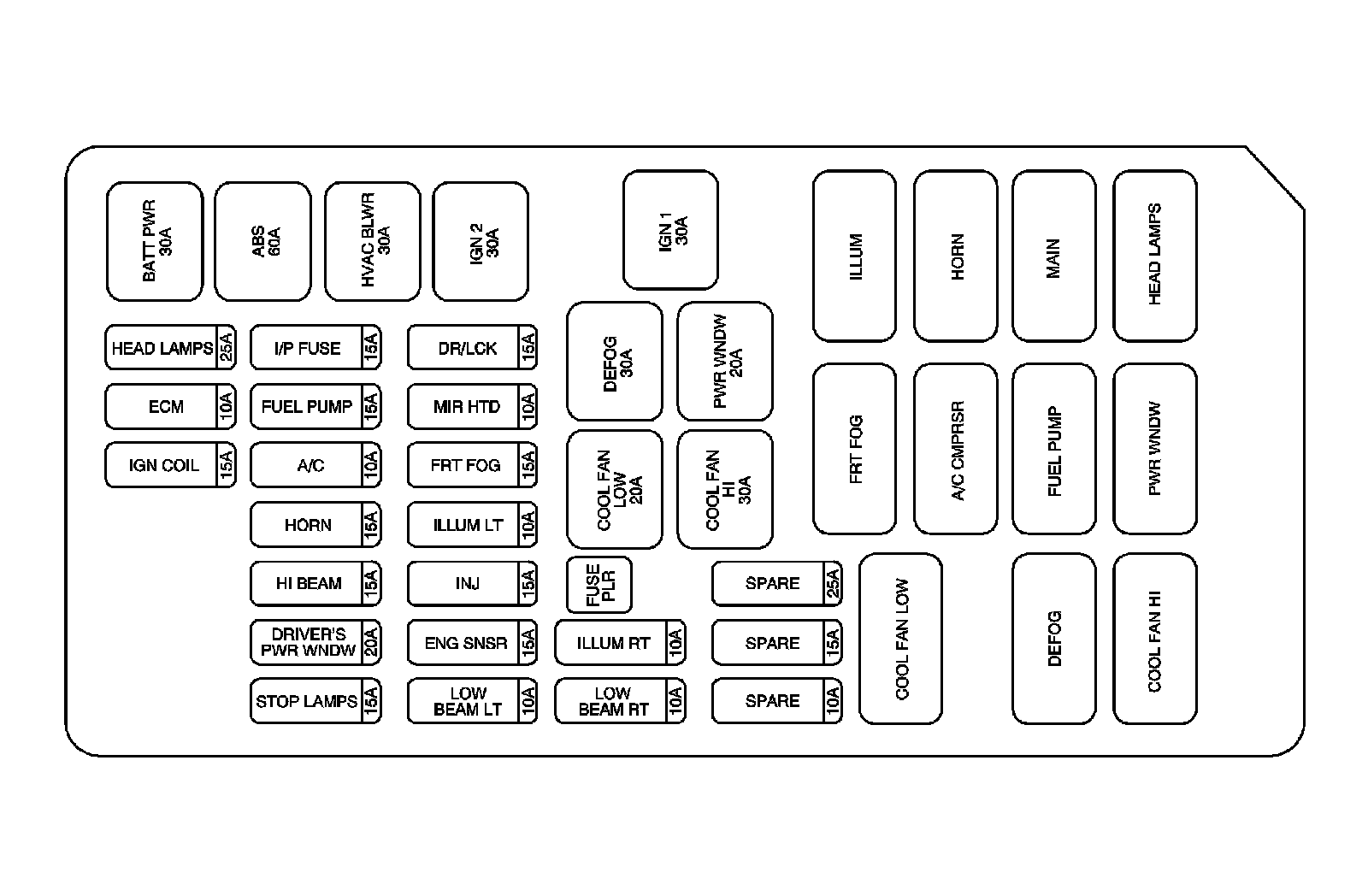

Fuse Block - Underhood Label

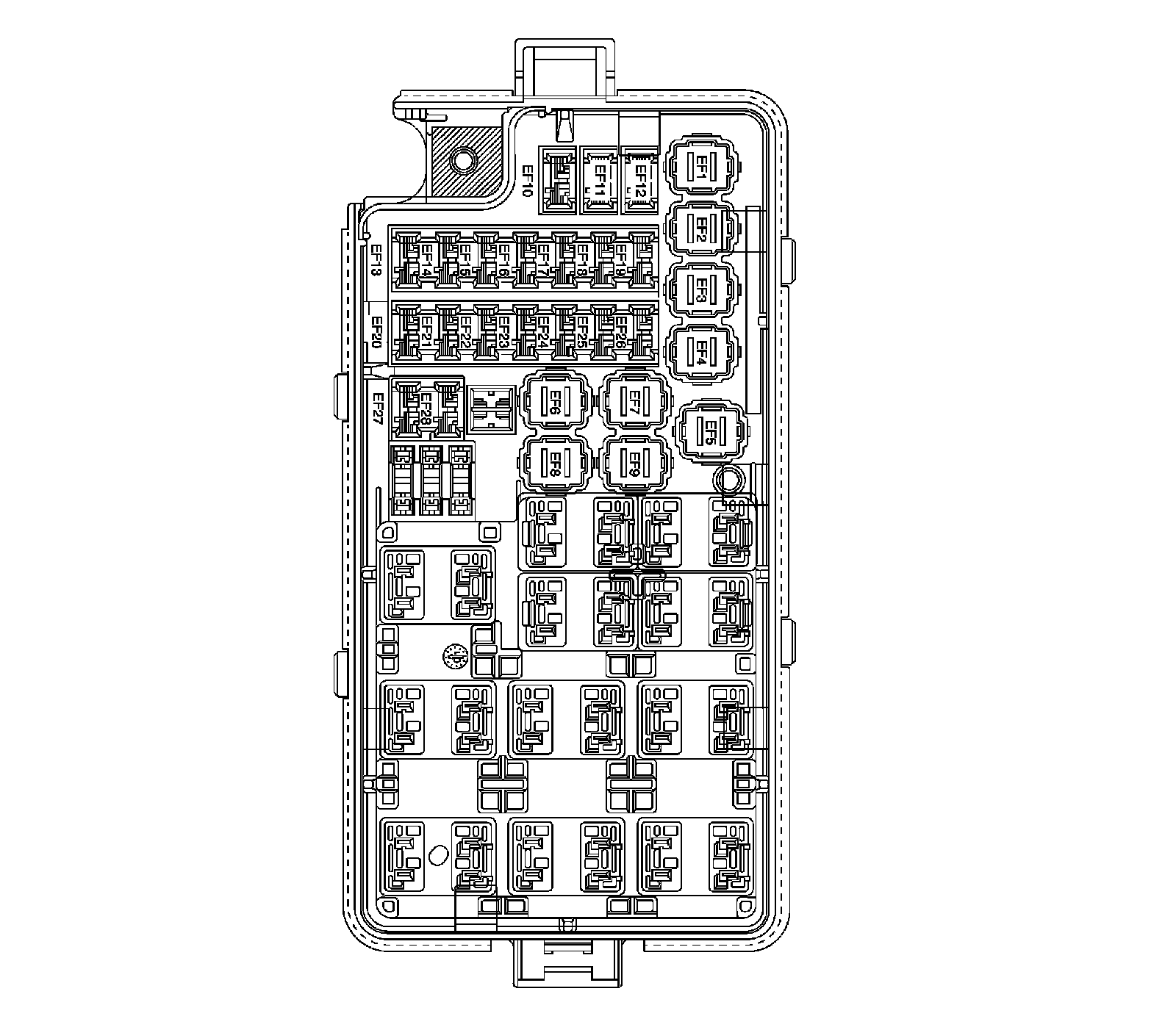

Fuse Block Underhood - Top View

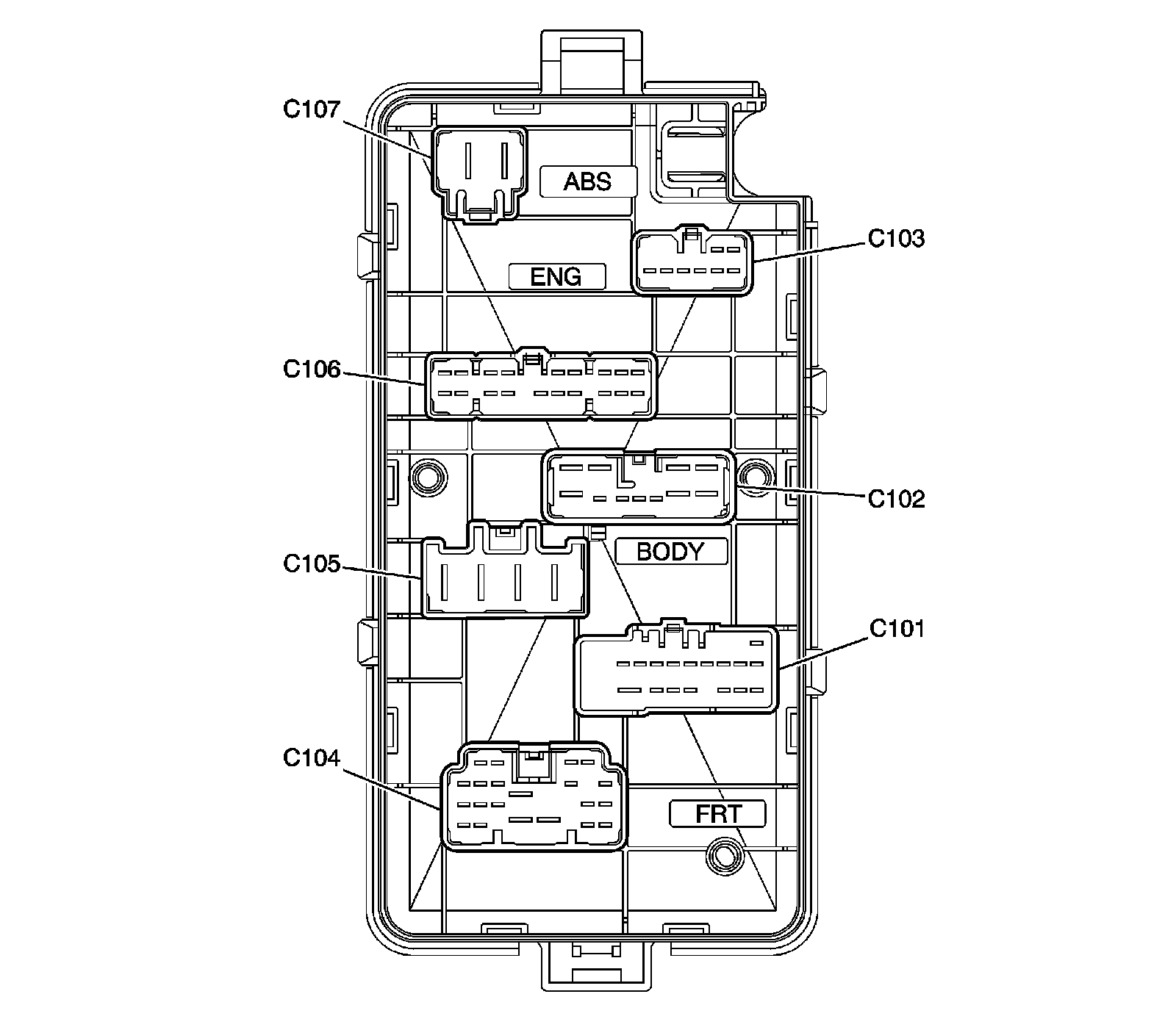

Fuse Block Underhood - Bottom View

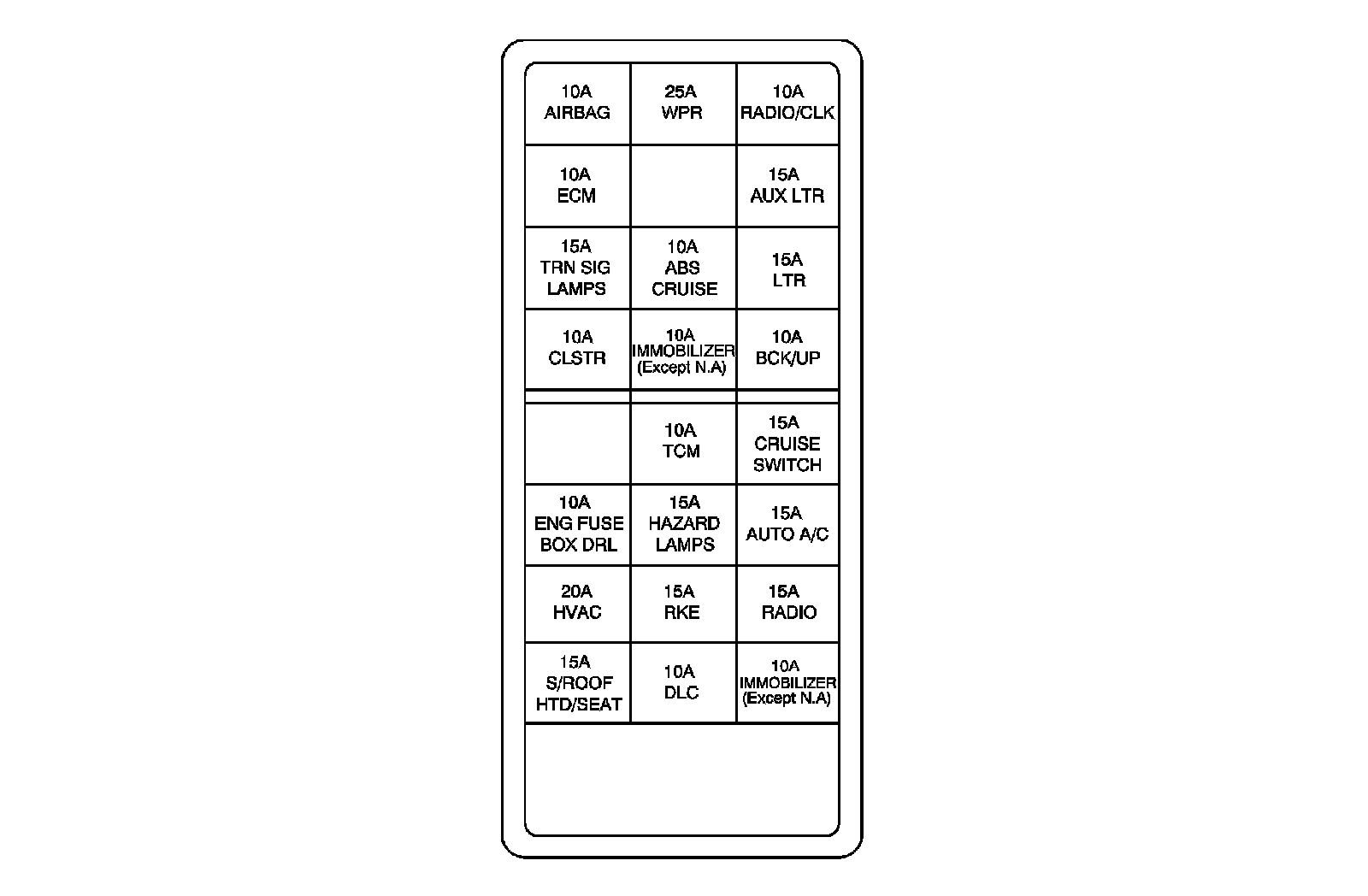

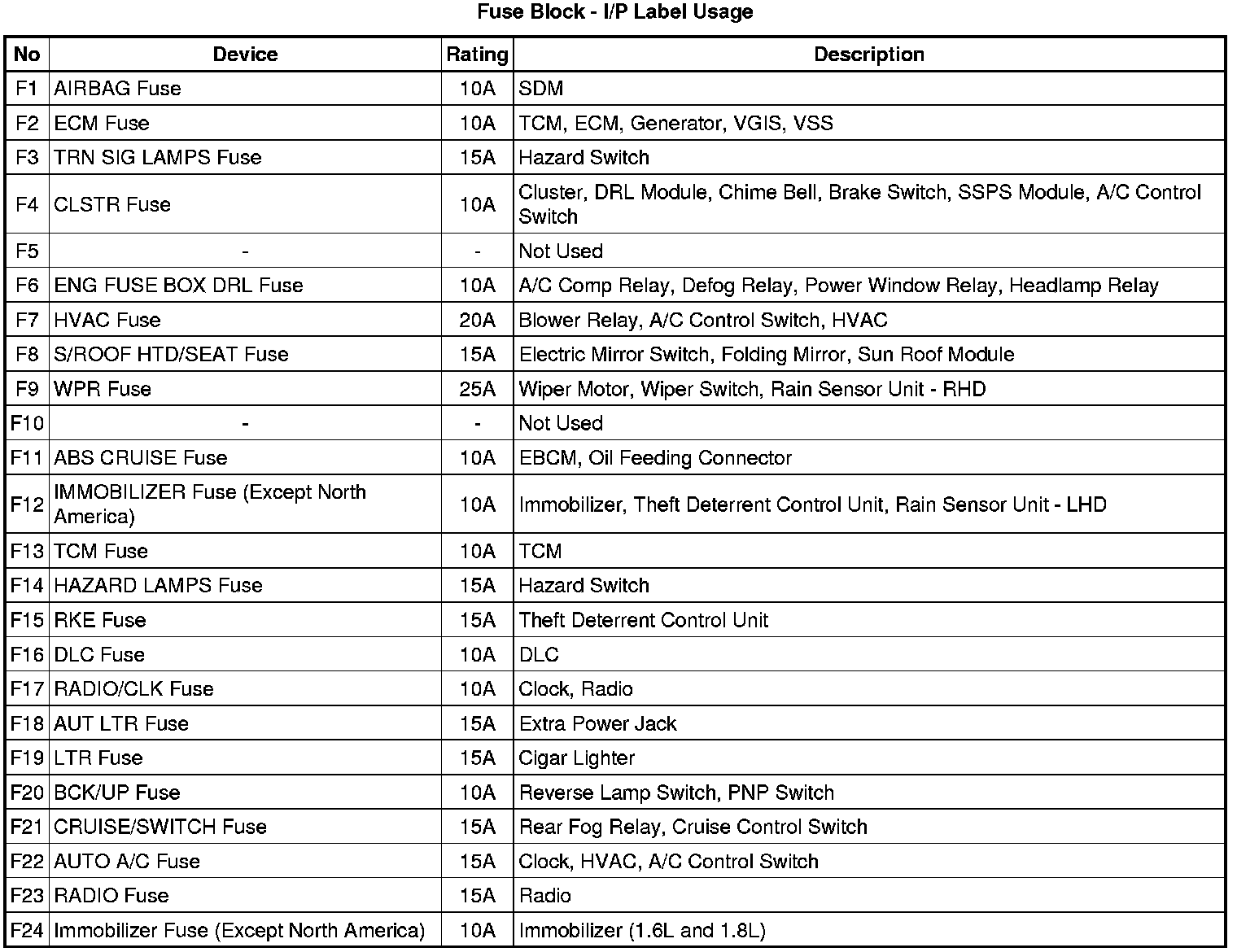

Fuse Block - I/P Label

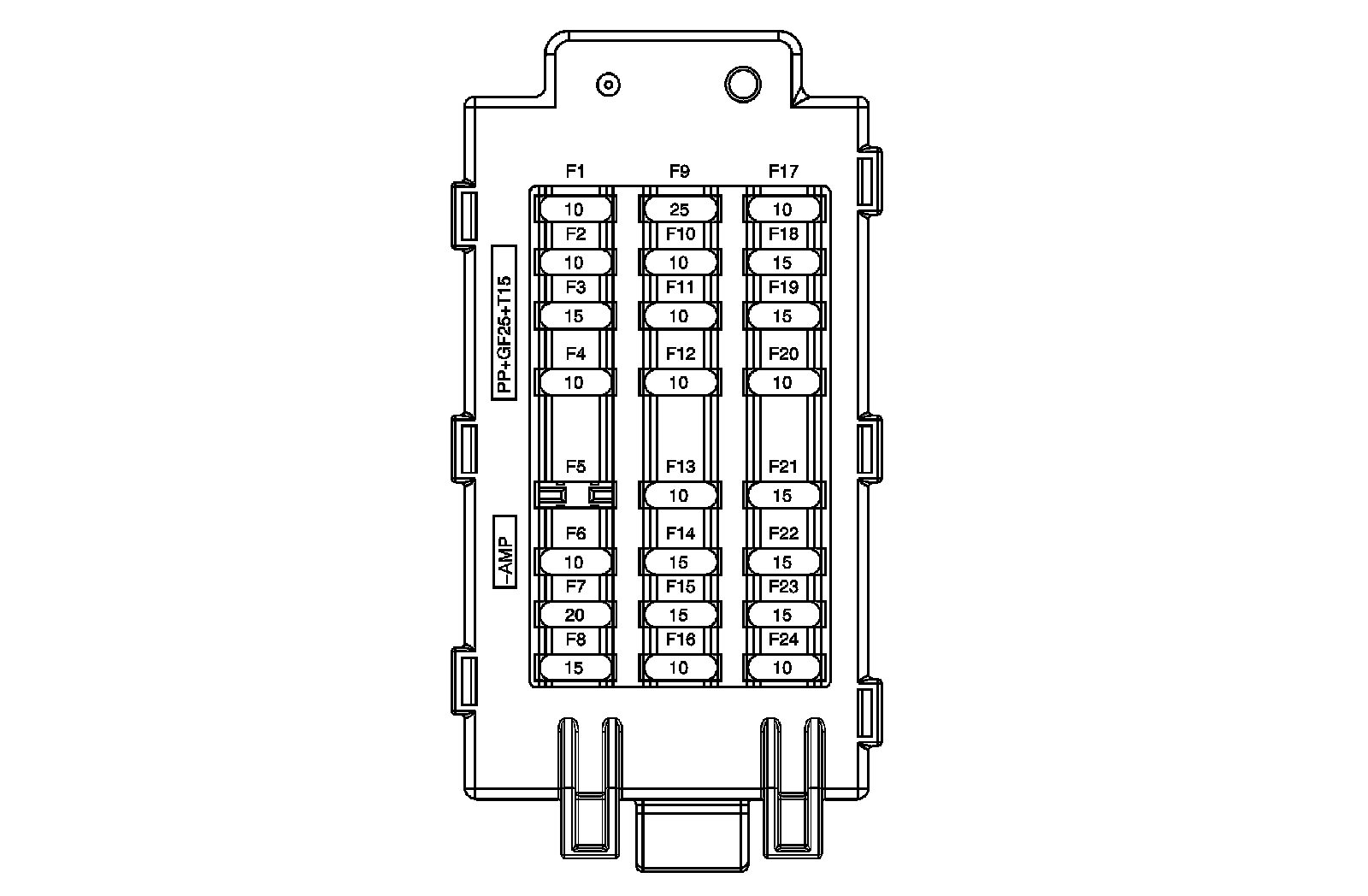

Fuse Block I/P - Top View

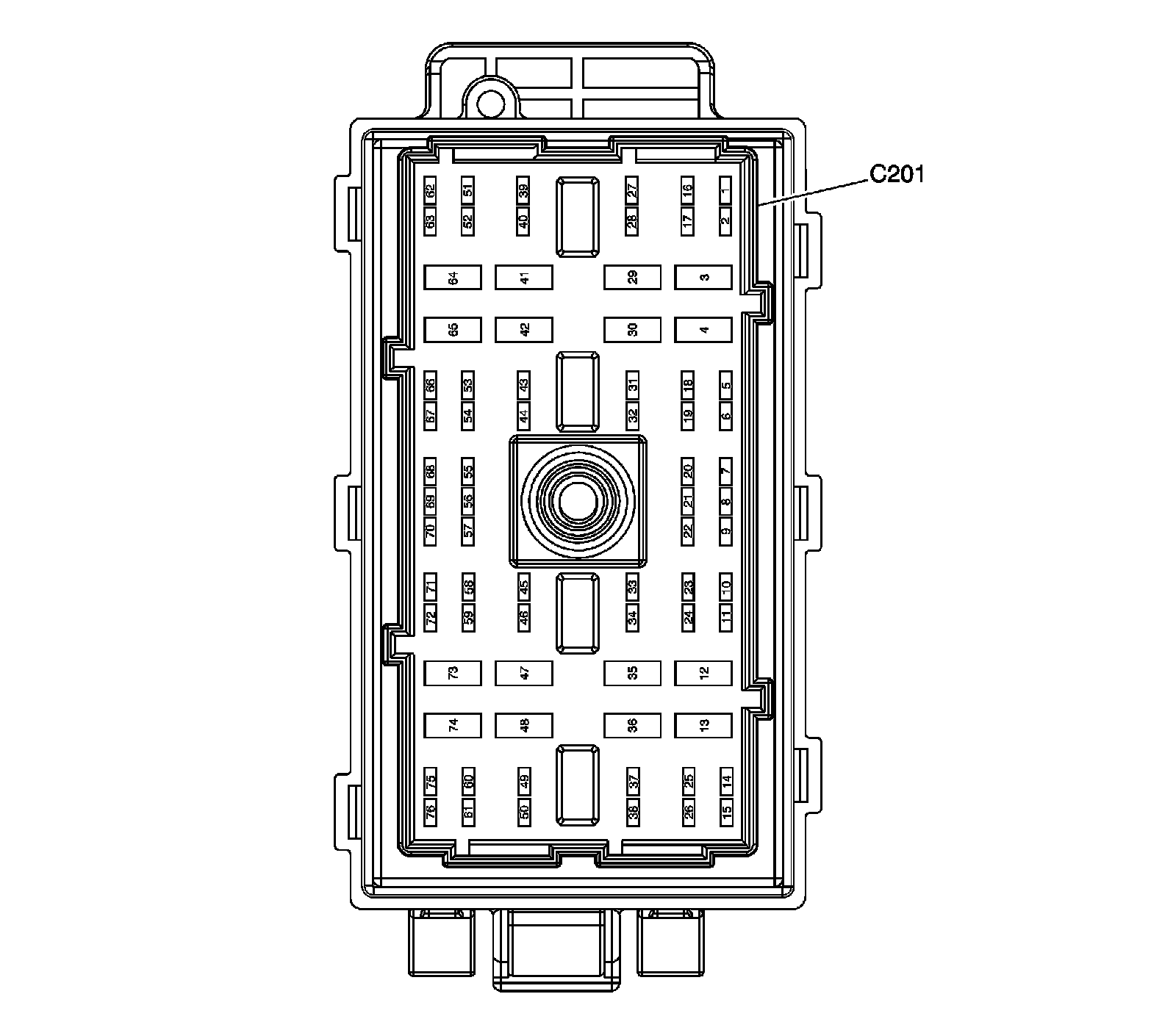

Fuse Block I/P - Bottom View
