Rear Compartment Lamp Replacement
Rear Compartment Lamp Replacement
Removal Procedure
Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.
1. Disconnect the negative battery cable.

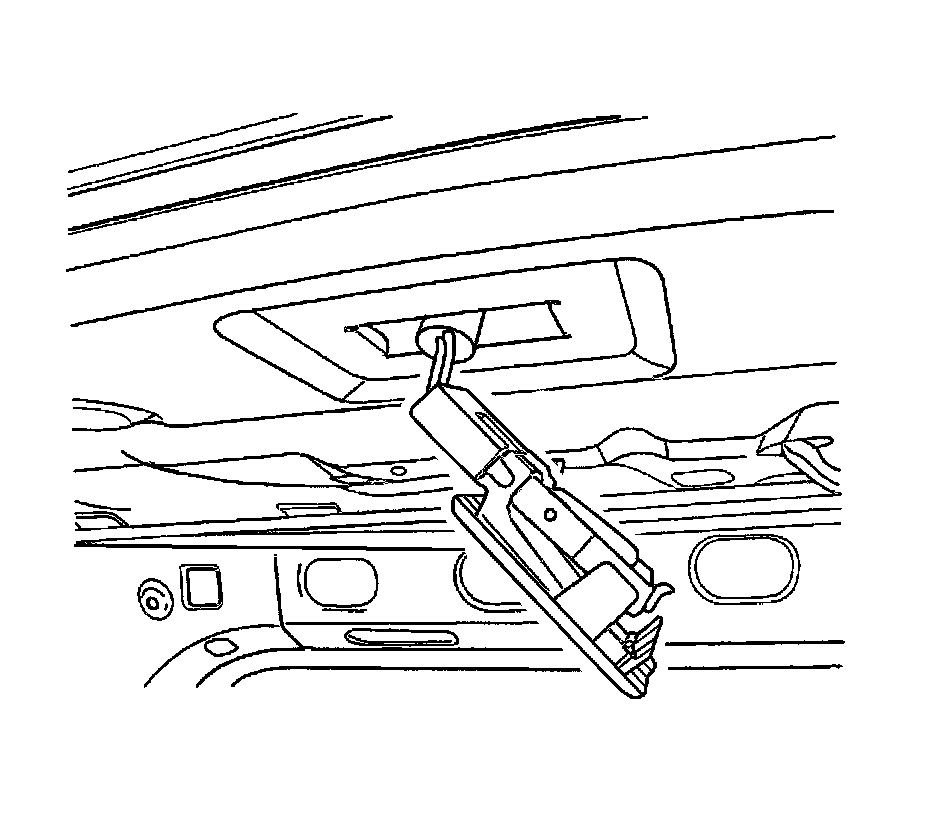

2. Remove the rear compartment lamp.
3. Disconnect the electrical connector.
4. Remove the bulb.
Installation Procedure
1. Install a new bulb.
2. Connect the electrical connector.
3. Install the rear compartment lamp.
4. Connect the negative battery cable.
